STAT IM 2000/2000S Service Guide
96-108639 Rev 3.0
2. Tools, Maintenance Schedules, Procedures and Testing
STATIM 2000/2000S/2000 G4 Service Guide

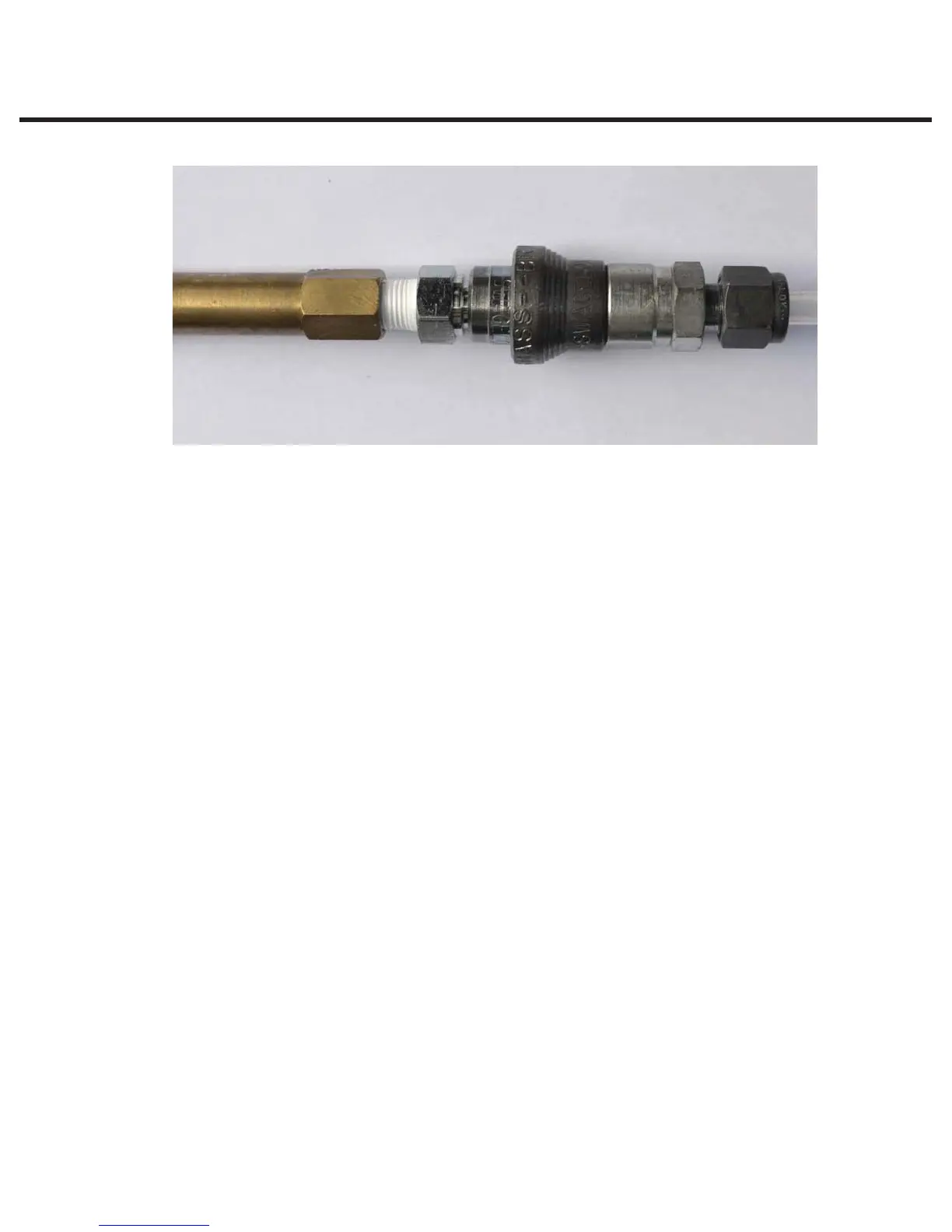

Figure 14. Assembled male fitting, female fitting and cassette extension fitting
Attaching the pressure tube to the recommended pressure reference meter (s)
Important notes:
t"UUBDIJOHUIFQSFTTVSFUVCFUPUIFSFGFSFODFNFUFSJTBDIJFWFEVTJOHUIFTFDPOENBMF4XBHFMPL
b-qc4-s-2pm fitting supplied with the cassette.
t"UUBDIJOHUIFUVCFUPUIFDPOOFDUPSJTBTEFTDSJCFEJOUIFTFDUJPOBCPWFIPXFWFSUIFTFDPOE
male fitting will need to be installed onto the pressure reference meter prior to attempting this.
t)PXUIFTFDPOENBMFmUUJOHJTBUUBDIFEXJMMEFQFOEPOUIFUZQFPGSFGFSFODFNFUFSVTFE
Assembling the Swagelok b-qc4-s-2pm ‘quick connect’ fitting to the Druck dpi
705r absolute pressure meter external 0 - 7 bar absolute pressure transducer
with ¼” NPT female thread.
NOTE: To complete this assembly you will need to locate the 1/8 NPT female to ¼ NPT male
adapter supplied with the S-class calibration cassette. (See Figure 15 for assembly) .
