2. Tools, Maintenance Schedules, Procedures and Testing
STATIM 2000/2000S/2000 G4 Service Guide

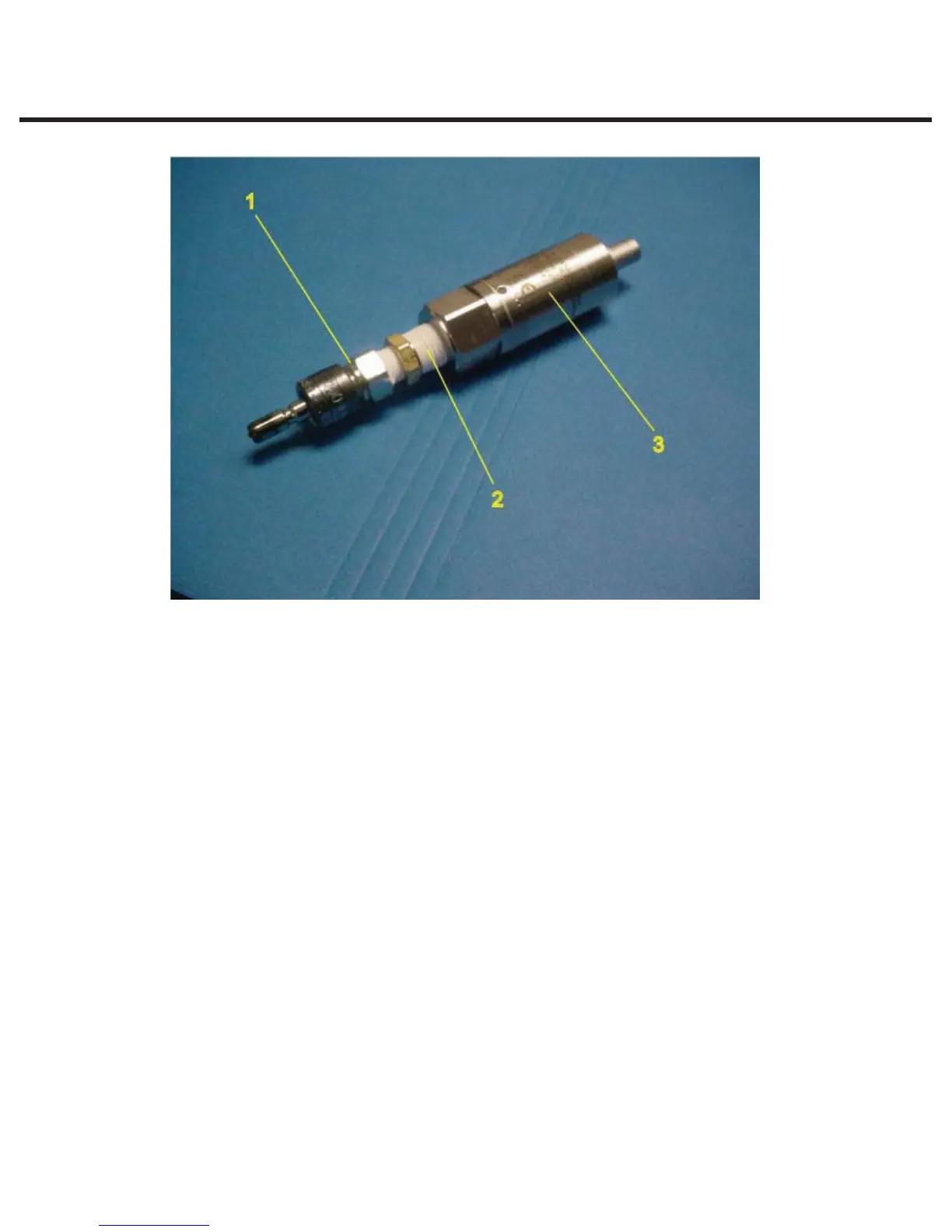

Figure 15. Pressure transducer with adapter and Swagelok connector attached.
Install Swagelok connector (1) onto adaptor fitting (2) DO NOT OVERTIGHTEN FITTING.
NOTE: The use of P.T.F.E. tape as shown is essential to ensure the connection is free from steam
leaks. If the joint leaks, steam can enter the transducer and damage the unit internally.
Install assembly (from previous step) onto external pressure sensor (3) supplied with the Druck DPI
705R. DO NOT OVERTIGHTEN FITTING.
NOTE: The use of P.T.F.E. tape as shown is essential to ensure the connection is free from steam
leaks. If the joint leaks, steam can enter the transducer and damage the unit internally.
The pressure tube can now be attached to the pressure transducer.
