4.7.3 Checking the engine oil level
Note
Observe the notes in the engine manufacturer's operating instructions.
1 Put the machine in a level horizontal position.
2 Run the drive engine for approx. 2 minutes until the system is
filled with oil.
3 Shut down the drive engine.
4 Open the service access door on the right.

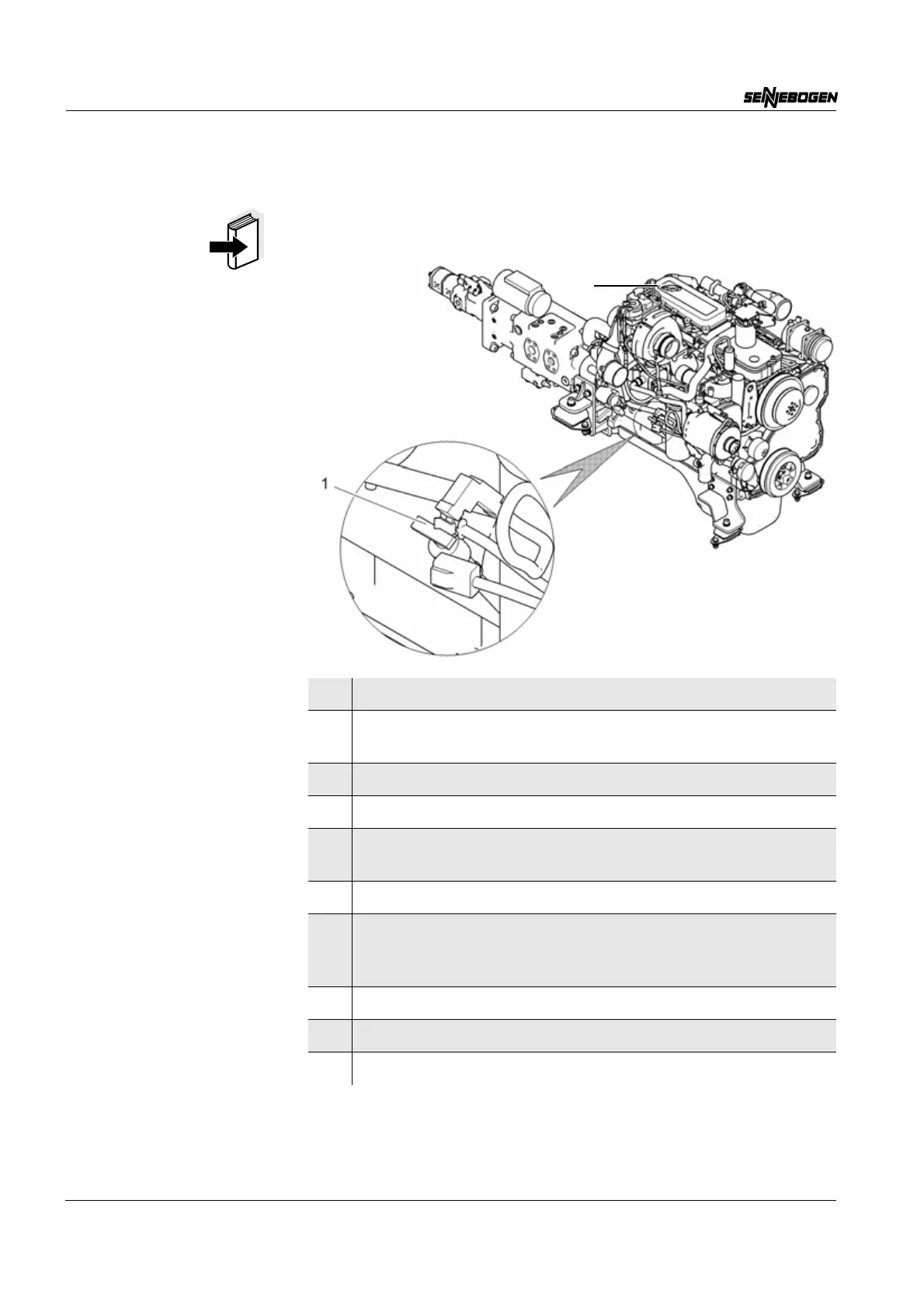

5 Pull out the oil dipstick (1) by the grip and wipe off using a
clean, lint-free cloth.
6 Insert the oil dipstick (1) up to the stop and pull out again.
7 Check the oil level (handle to top!):
the oil level must lie between the lower marking (MIN) and the
upper marking (MAX).
8 If necessary top up with oil of the specified grade (2).
9 Insert the oil dipstick (1) up to the stop and pull out again.
10 Close the service access door on the right.
