sennebogen 830 E - Central Electrical System

Overview - Upper structure
2 - 9
830 / 07.2012
Original operating instructions

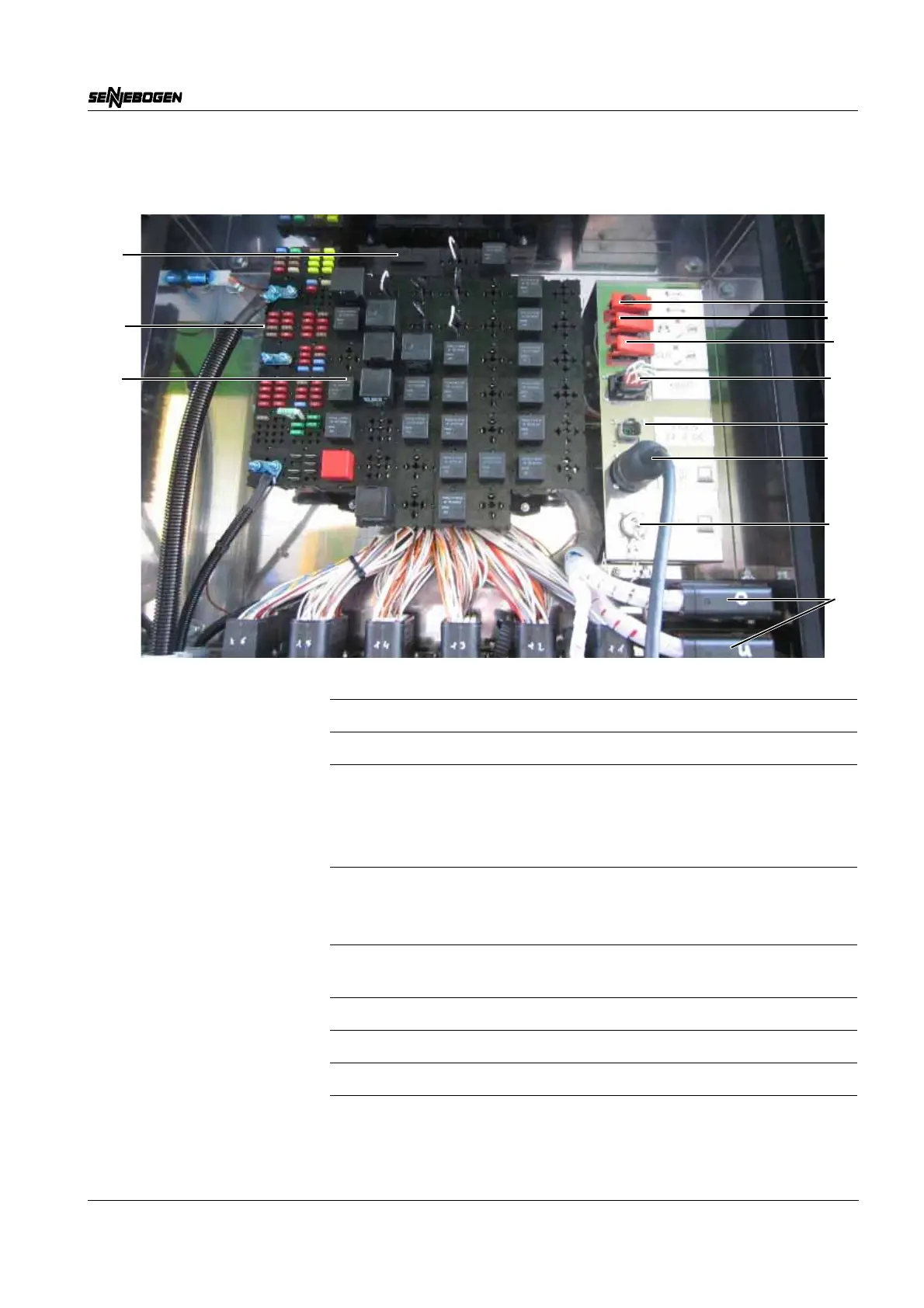

2.5.2 Central electrical system
1
2
3
10
4
5
7
8
9
6
11
Item Description
1 Fuses
2 Relay
3 Engine emergency speed
– Position RIGHT: 50%
– Position CENTER: idle
– Position LEFT: 100%
4 GLR emergency operation
– Position RIGHT: emergency operation
– Position LEFT: normal operation
5 LMB X1001 plug (control system)
–Bypassed
6 Control unit
7 LMI X1005 plug (power supply)
8 Engine diagnostics plug
9 GLR diagnostics plug
