sennebogen 830 E - Limit Shutdown Equipment

Operation - Work application
6 - 73
830 / 07.2012
Original operating instructions
6.5.11 Limit shutdown equipment
The limit shutdown prevents the hydraulic cylinders from striking
against the limit stops.
DANGER
Never change the limit shutdown settings set at the factory!
Adjustment to the setting may be carried out only by SENNEBOGEN
Customer Service or an authorized SENNEBOGEN Service Partner!
The following damage can occur if the operator adjusts the limit
shutdown on his own:
 Wear in the cylinder mounting bearings and boom.
 Damage to the hydraulic cylinder.
 Increased machine wear.
This damage is excluded from the terms of the warranty issued by
SENNEBOGEN Maschinenfabrik GmbH.
The operator of the machine alone is liable for such damage as well as
any consequential damage!

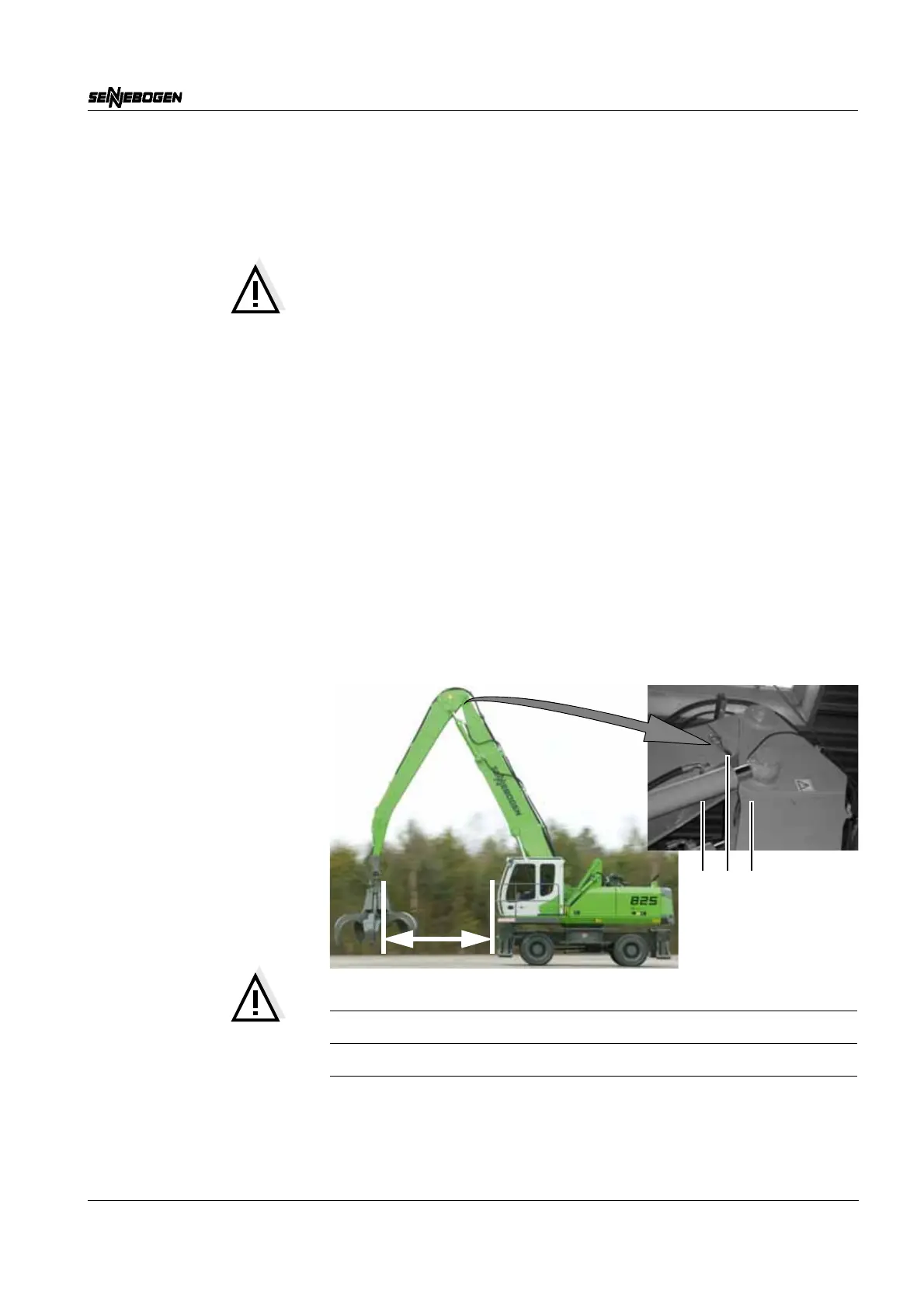

Safety limit shutdown
for “Retract stick”
The safety limit shutdown “retract stick” is set at the factory as follows:
 Retract stick: stick (without attachment) approx. 2.5 m in front of the
lowered cab
Item Description
1 Compact boom
2 Sensor element
3 Grab stick
2.5 m
1
23
