Transport - Safety instructions
7 - 2
830 / 07.2012
Original operating instructions

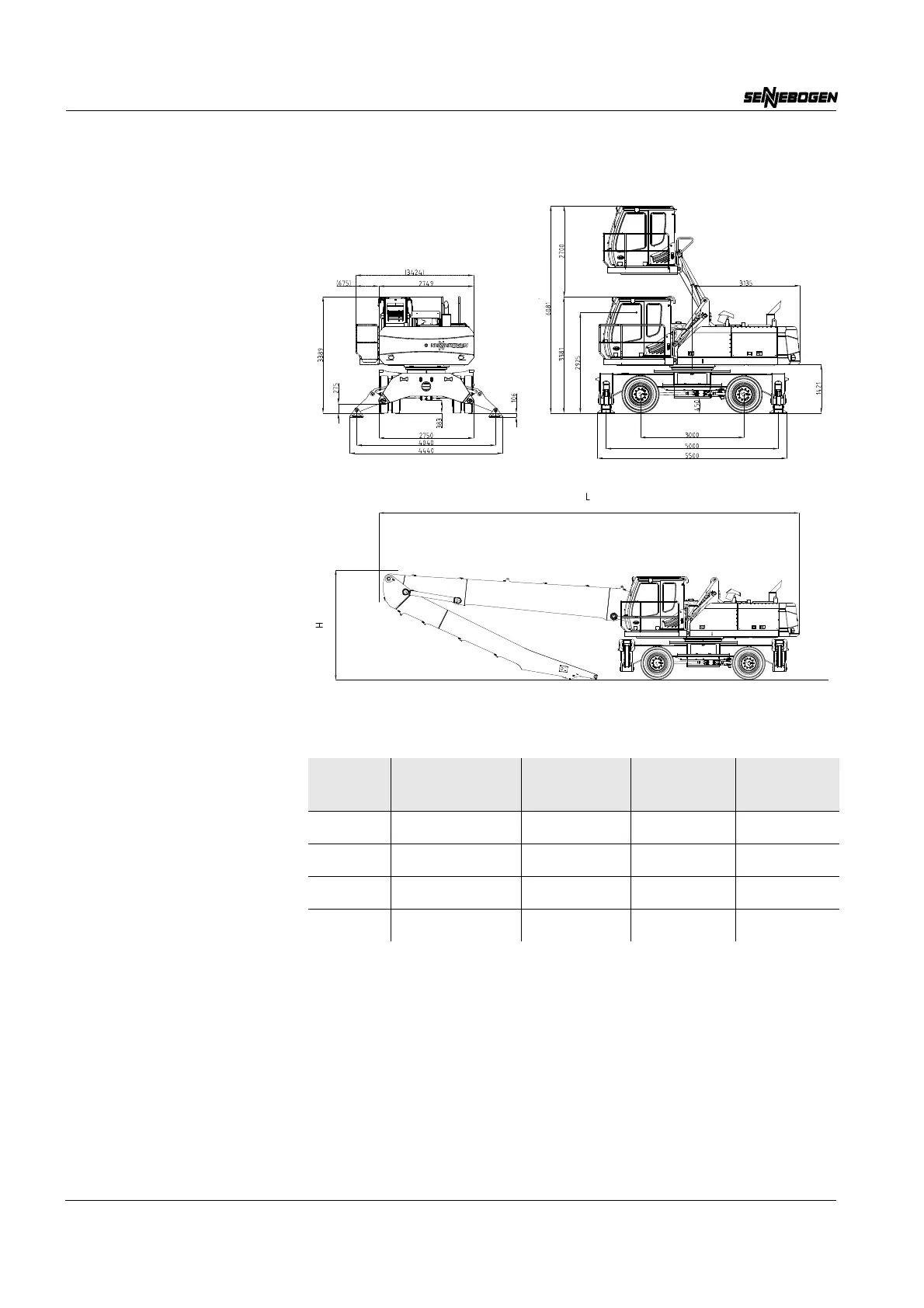

7.1.1 Machine dimensions
Measurement information [mm]
Load boom Grab stick Transport
length (L)
Transport
height (H)
K15 8,5 m 7,0 m 12,45 m 3,40 m
K17 9,8 m 7,5 m 13,75 m 3,45 m
B16 9,4 m Banana 7,0 m 13,40 m 3,50 m
K14 Ulm 8,5 m 6,0 m 12,45 m 3,40 m
