sennebogen 830 E - Upper structure

Overview - Upper structure
2 - 6 Original operating instructions 830 / 07.2012
2.5 Upper structure

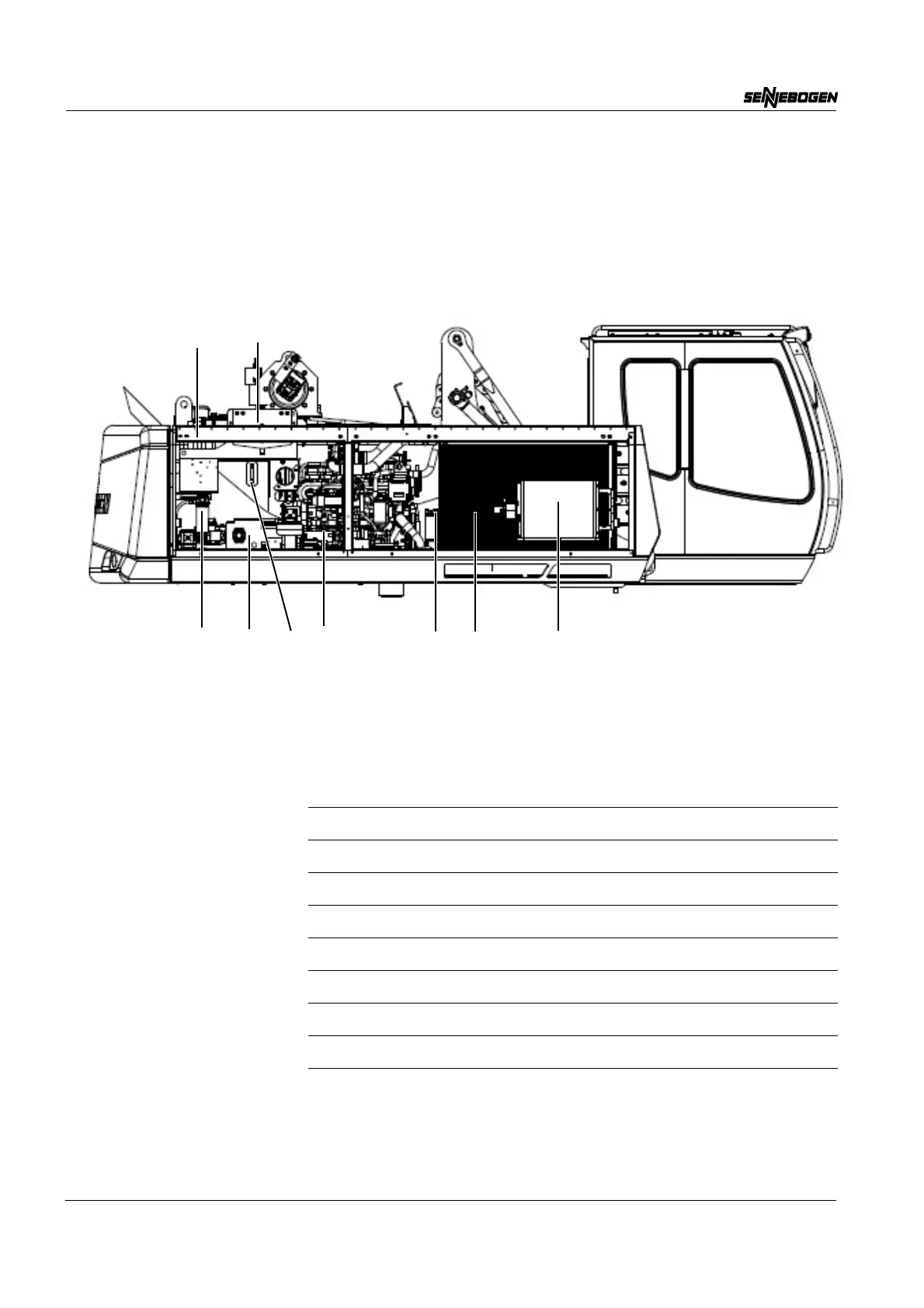

2.5.1 Side view with diesel engine
Service access doors
for engine compartment
8
2
3
4
5
6
7
9
10
Item Description
2 Water separator — fuel
3 Pump unit
4 Hydraulic oil level display
5 Driving engine
6 Fan
7 Combination oil/water/charge air cooling system
8 Air conditioning system
9 Exhaust/exhaust gas treatment
10 Expansion tank/refrigerant
