Operation - Work application
6 - 58
830 / 07.2012
Original operating instructions
NOTE
To make sure the outrigger is retracted evenly, the lever (1) must be
pulled back once briefly as far as it will go. Afterwards, the retraction
speed can be selected as needed.
6.5.6 Swinging/decelerating the upper structure

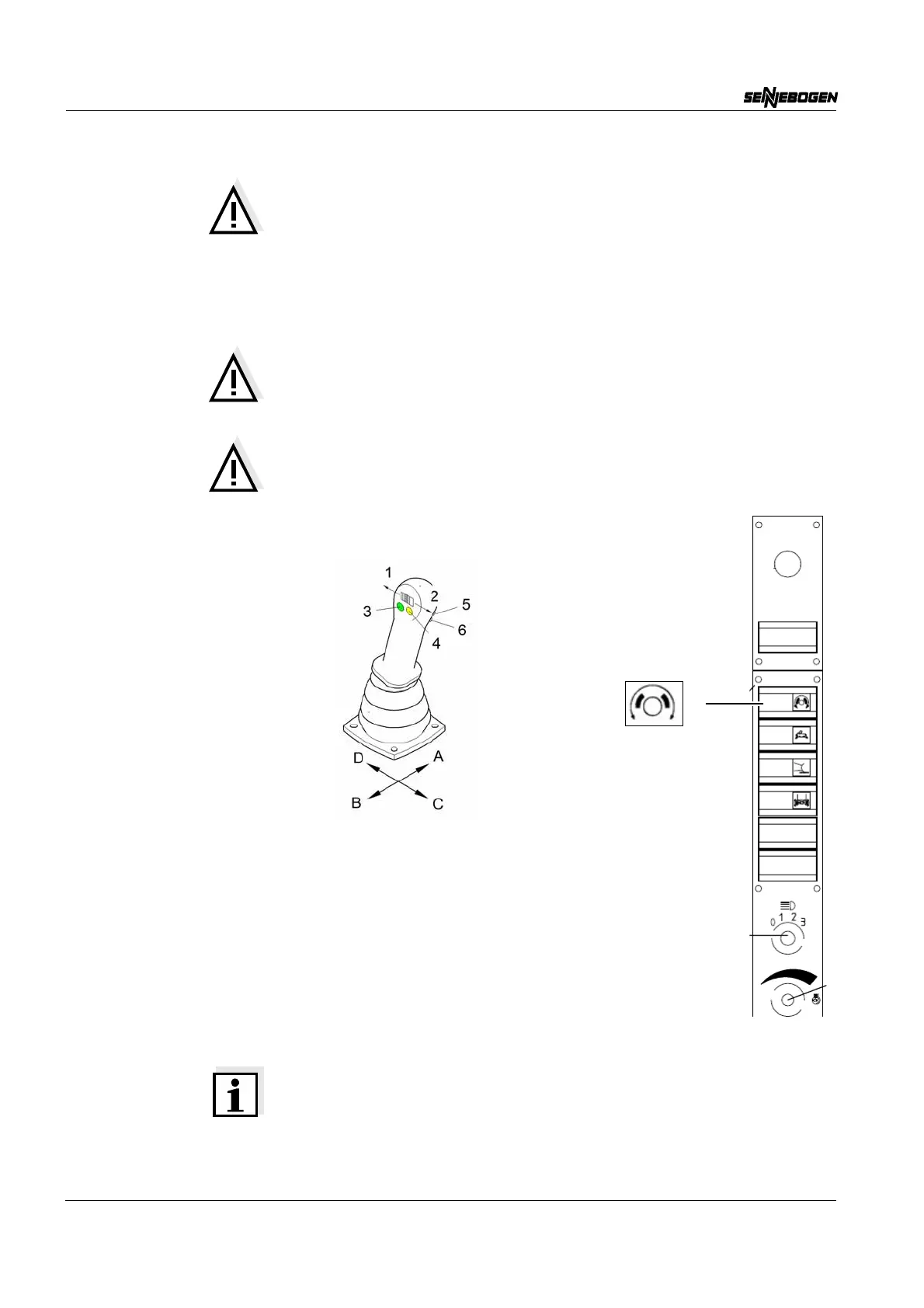

The upper structure is swung using the left control lever.
DANGER
Danger of tipping!
Never swivel machines with long equipment and additional ballasting
without an outrigger.
WARNING
Never rotate the upper structure when the swing gear holding brake is
applied!
*: Optional model/special function
Note
In order to swing the upper structure, the drive engine must be switched
on, the safety lever must be released (pressed forward) and the swing
bearing holding brake switch “right” must be pressed.
1 Swing bearing holding brake switch
D Swing upper structure, left
C Swing upper structure, right
1
Left control lever
