Operation - Work application
6 - 57
830 / 07.2012
Original operating instructions
Retracting the outrigger
DANGER
Observe reduced lifting capacities for a machine that is not stabilized!
For lifting capacities see Section 3.5 Working loads.
1 Apply the parking and service brakes.
2 Start the engine in accordance with Section 4.10.4.
3 Release the safety lever (see Section 6.3.2).

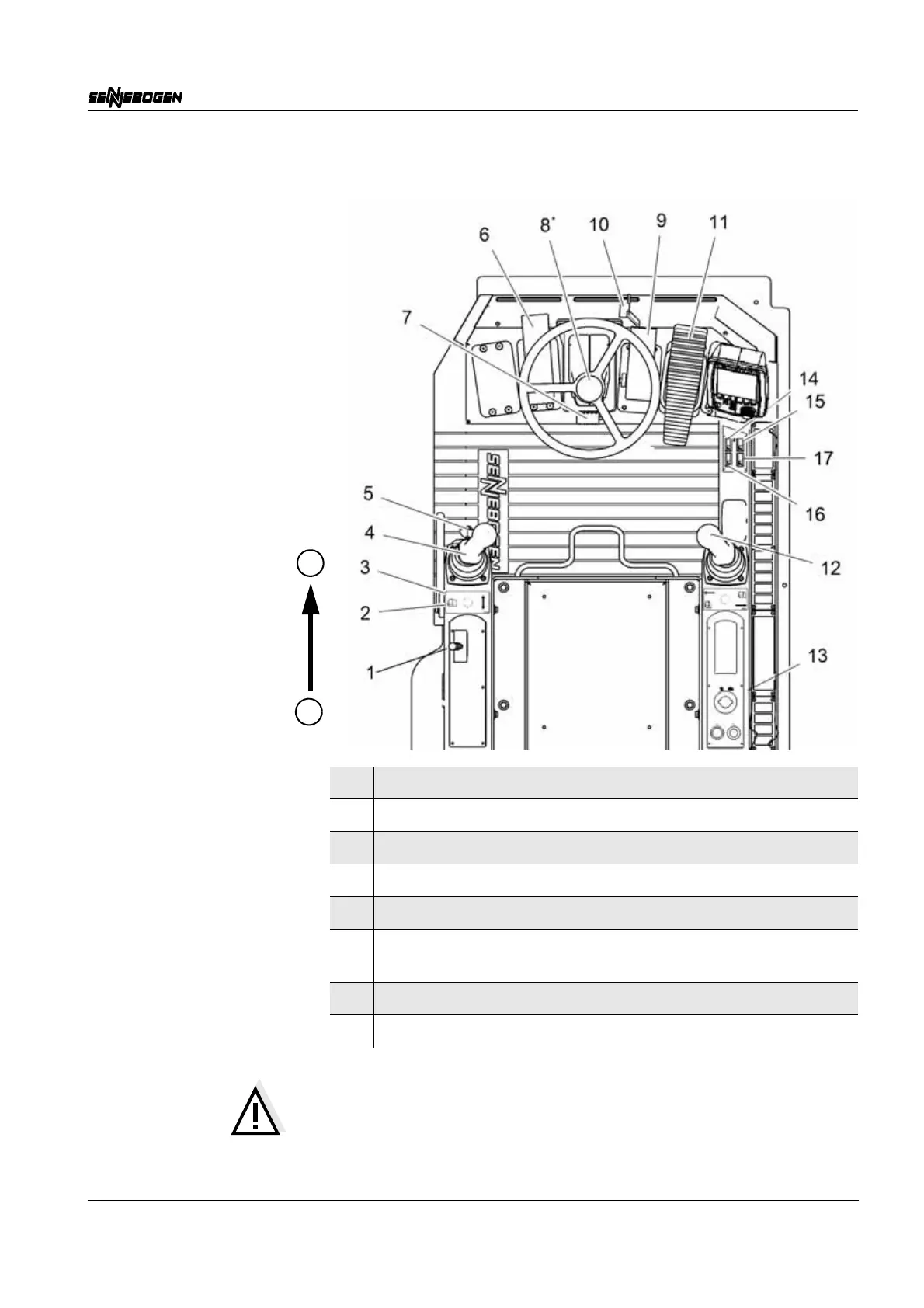

4 Press the lever completely and (1) pull back.
5 Retract the outrigger up to 75%
6 Fold in the fork hook manually (danger of collision with the
upper structure)
7 Retract the outrigger completely
8 Check that all four outriggers are retracted completely.
