Operation - Operating instruments
6 - 15
830 / 07.2012
Original operating instructions

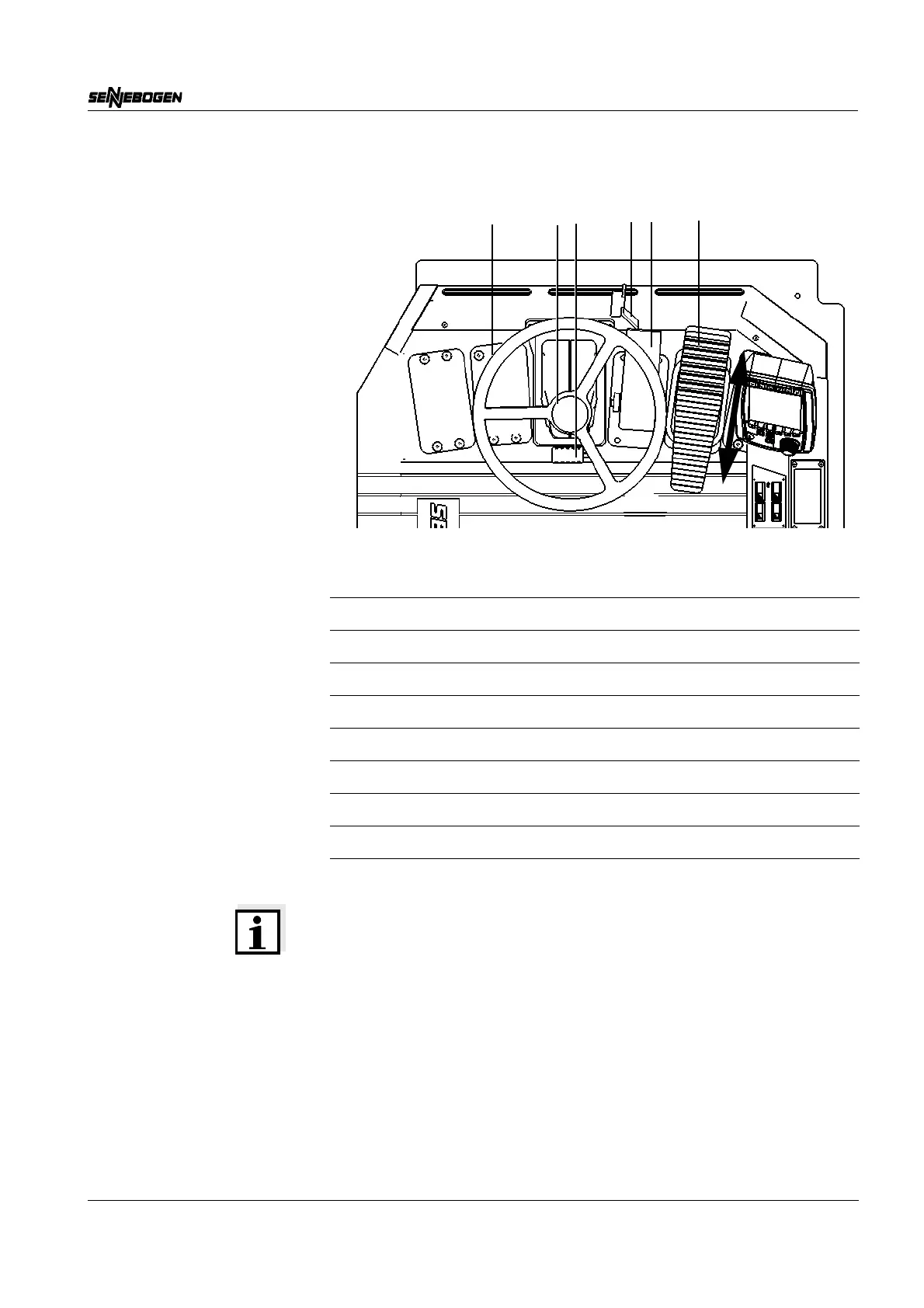

Pedals
Note
The swing bearing holding brake is a holding brake for the upper
structure but is not a service brake or a working brake. A symbol also
lights up in SENCON when switched on.
Item Description
1 Footrest
2* Steering column
3* Release the steering column lock
4 Release the brake pedal lock
5 Brake pedal — driving action
6 Drive pedal
7 Drive — forwards
8 Drive — backwards
9* Optional
