Operation - Work application
6 - 63
830 / 07.2012
Original operating instructions
Note
The normal function of the control lever (lift up/down and extend/retract
jib) is switched off.
DANGER
Before beginning work, check which function of the control lever has
been enabled.
Crawler steering The machine is driven by manipulating the two hand levers attached to
the two driving pedals. The left drive pedal/hand lever controls the left
traveling gear. The right-hand traveling gear can be controlled with the
right-hand drive pedal/hand lever.
Joystick and
crawler steering
The following description applies if the boom is positioned above the
idler.

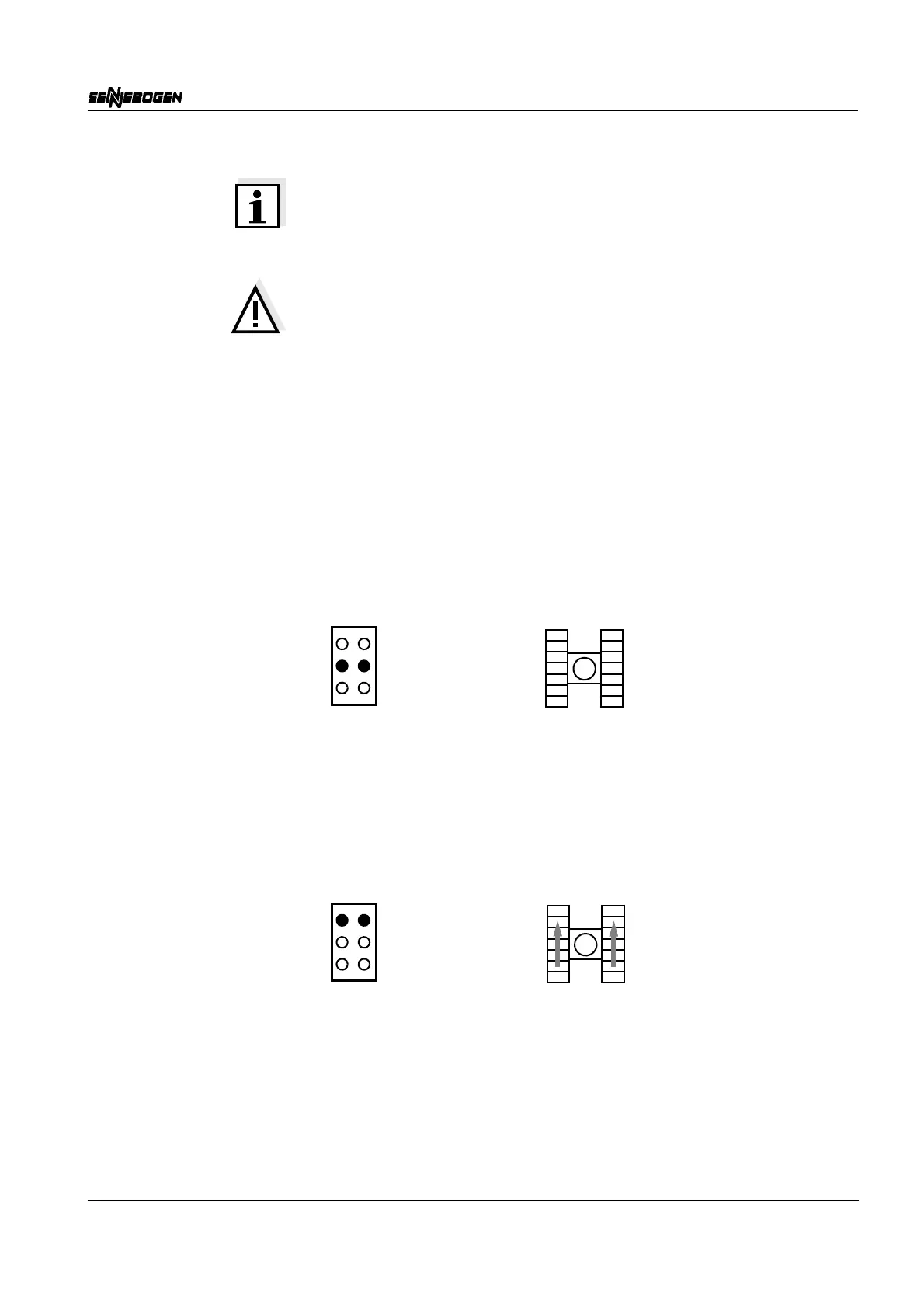

Stopping the machine
Release drive pedals/hand levers.
The drive pedals/hand levers automatically return to the middle position
(neutral).
Forward – drive straight ahead
Push both drive pedals/hand levers forwards.
Setting
Travel gear movement:
Drive pedal/hand lever:
Setting
Travel gear movement:
Drive pedal/hand lever:
