SICK microScan3 Pro I/O User Manual

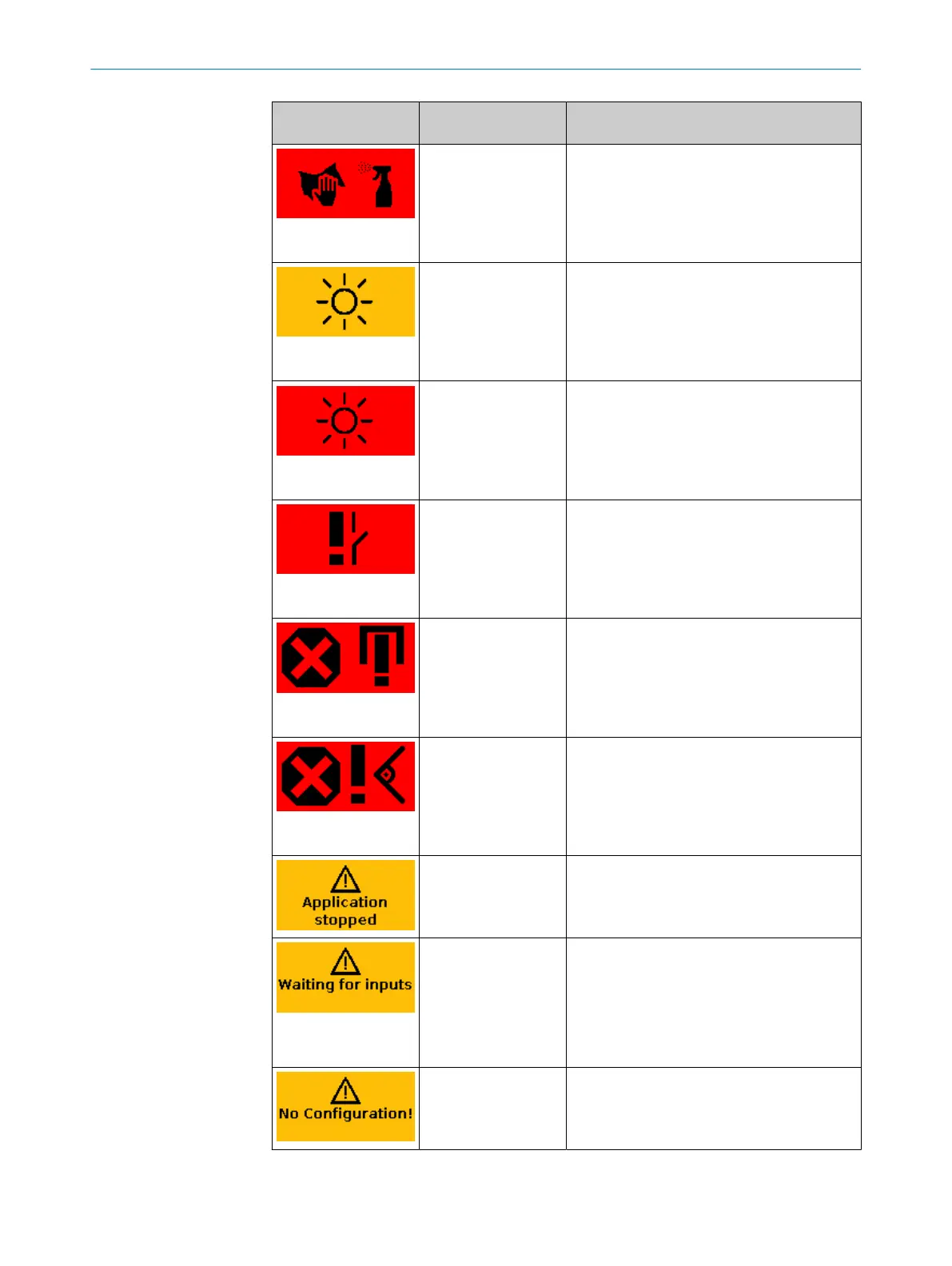

Display Device or configura‐
t
ion
Meaning
Display flashes
All devices and config‐
ur
ations
Contamination error. All safety outputs in the
OFF state. Check the optics cover for damage.
Clean the optics cover.
Display flashes
All devices and config‐
ur
ations
Dazzle warning. Check whether the safety laser
scanner is being dazzled by an external light
source in the scan plane, e.g., sun, halogen
light, infrared light source. Remove or cover the
light source.
Display flashes
All devices and config‐
ur
ations
Dazzle error. The associated safety outputs are
in the OFF state. Check whether the safety
laser scanner is being dazzled by an external
light source in the scan plane, e.g., sun, hal‐
ogen light, infrared light source. Remove or
cover the light source.
Display flashes
Configuration with
e
xternal device moni‐
toring (EDM)
Fault in the external device monitoring (EDM).
OSSD pair in OFF state.
Display flashes
Configuration with ref‐
er
ence contour field
Tamper protection. The safety laser scanner
does not detect any contour within the config‐
ured tolerance band of the reference contour
field. All safety outputs in the OFF state.
Display flashes
All devices and config‐
urations
Tamper protection. The safety laser scanner
measures no values within the distance meas‐
urement range in an area of at least 90°. All
safety outputs in the OFF state.
All devices and config‐
ur
ations
Safety function stopped. All safety outputs in
the OFF state. Restart the device using the
keypad or Safety Designer.
All devices and config‐
ur
ations
A valid input signal is not yet applied at the
control inputs. All safety outputs in the OFF
state.
After switching on, the safety laser scanner
waits for a valid input signal. During this time,
an invalid input signal does not result in a
fault.
All devices The device is not configured. The device is in
t
he as-delivered state or has been reset to
factory settings. All safety outputs in the OFF
state.
OPERATION 9
8025424/1ELL/2022-01-21 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O
157
Subject to change without notice

SICK microScan3 Pro I/O Specifications

General

Scanning angle	275°
Number of fields	128
Dimensions	102 mm x 152 mm x 106 mm
Number of safety outputs	2
Number of OSSD outputs	2
Scanning range	5.5 m
Protective field range	5.5 m
Resolution	30 mm
Number of monitoring cases	128
Response time	60 ms
Interfaces	Ethernet, USB
Operating temperature	+50 °C
Protection class	IP65
Supply voltage	24 V DC
Storage temperature	+70°C
Operating voltage	24 V DC (16.8 V DC ... 28.8 V DC)
Housing material	Plastic
Connection type	Male connector
