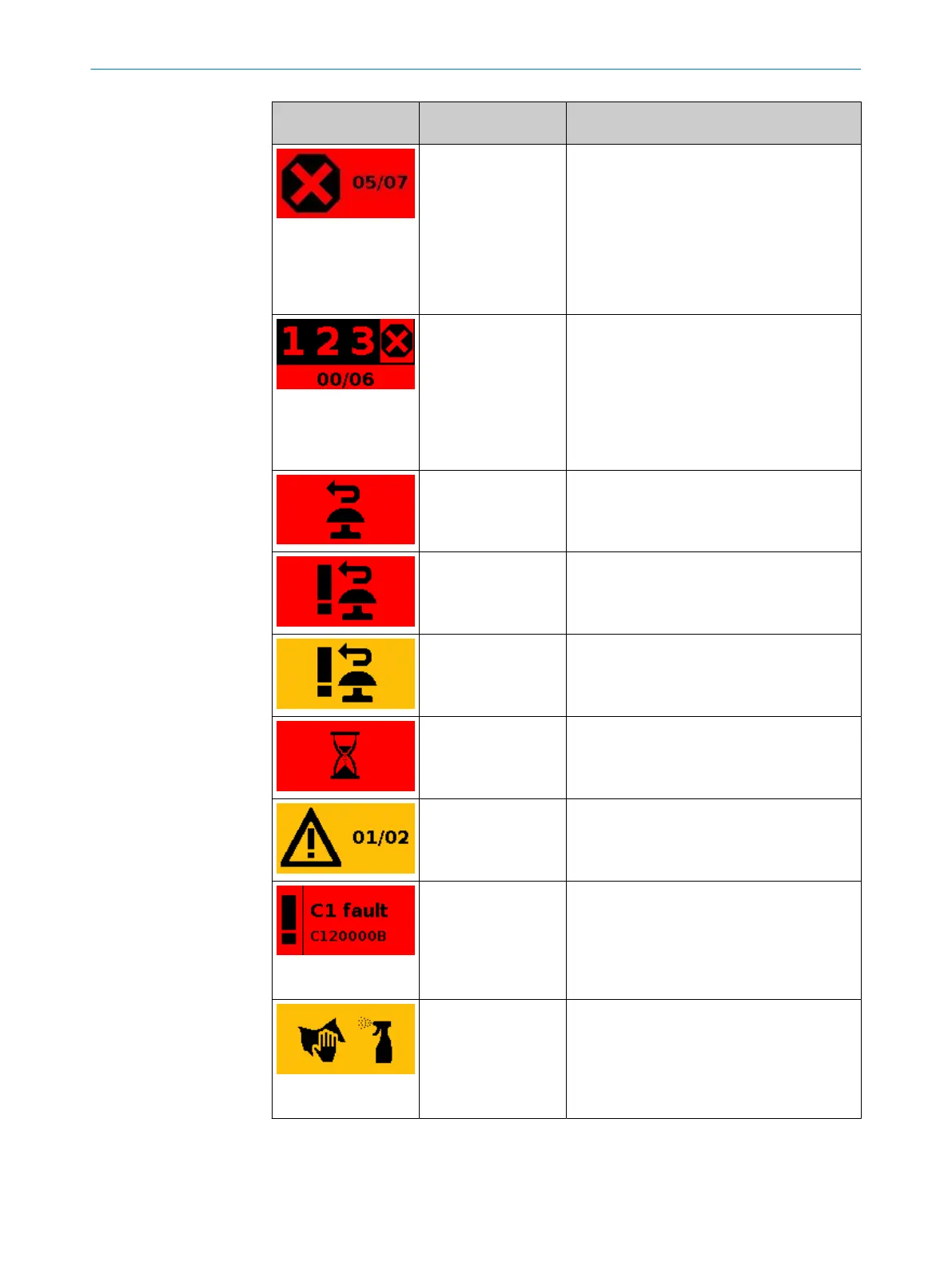

Display Device or configura‐
t
ion
Meaning
Configured safety out‐
put
s via network
For one or more cut-off paths, the following
applies: the protective field is interrupted or
there is a warning field in the active monitoring
case. The associated safety outputs are in the
OFF state.
•
Left digit: the number of safety outputs in
the OFF state
•
Right digit: the number of configured safety
outputs
Configured OSSD
pair
s and safety out‐
puts via network
For one or more cut-off paths, the following
applies: The protective field is interrupted or
there is a warning field in the active monitoring
case. The associated safety outputs are in the
OFF state.
•
Upper area: Each column represents an
OSSD pair.
•
Lower area: Safety outputs via network
Configuration with
r
estart interlock
Protective field is clear, reset can take place.
Configuration with
r
estart interlock
Reset button pressed Safety output in the OFF
state.
Configuration with
r
estart interlock
Reset button pressed Safety output in the ON
state.
Configuration with
aut
omated restart
after a time
Protective field is clear, configured time to
restart expires.
Configuration with at
le
ast one warning field
Warning field interrupted (left column: num‐
ber of interrupted warning fields, right col‐
umn: number of warning fields in the current
monitoring case).
Display flashes
All devices and config‐
ur
ations
Fault. All safety outputs in the OFF state. Addi‐
tional information: see "Fault indication on the
display", page 168.
Display flashes
All devices and config‐
ur
ations
Contamination warning. Check the optics cover
for damage. Clean the optics cover.
9 OPERATION
156
O P E R A T I N G I N S T R U C T I O N S | microScan3 Pro I/O 8025424/1ELL/2022-01-21 | SICK
Subject to change without notice
