Short instructions for configuring a reversing starter
SIMOCODE pro
2-12 GWA 4NEB 631 6050-22 DS 03
Additional, internal components of the basic unit
The local control [LC] station is already wired, the external components are
connected and the necessary internal connections have been made.
The following additional internal components, which have already been
connected as factory defaults and do not have to be parameterized, are now
required:
• PROFIBUS DP bit 0.0, bit 0.1 and bit 0.2 for the commands "LEFT", "OFF" and
"RIGHT"
• PROFIBUS DP bit 0.5 for switching between
the local control station [LC]
and PLC/PCS [DP] (remote)
– Bit 0.5 = 0: Local control station [LC] active
– Bit 0.5 = 1: PLC/PCS [DP] control station active.
The PLC/PCS [DP] control station and the change-over (plug S1) have
already been connected as factory default with the bits (sockets) of
PROFIBUS DP Cyclic Send Data. The assignment can be found in
SIMOCODE ES under Device Parameters > Motor Control > Control
Stations.

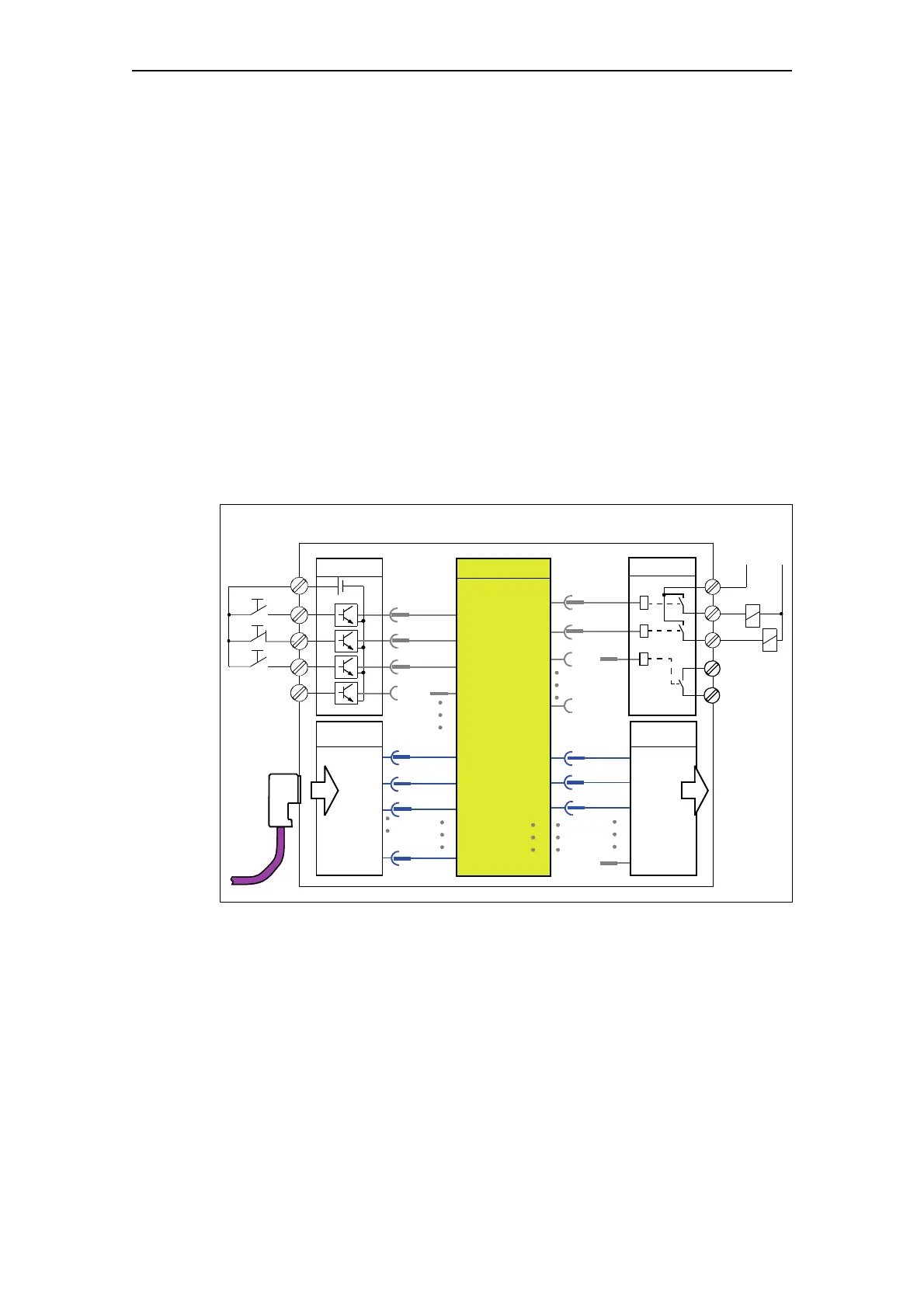

Fig. 2-4: Schematic of basic unit internal components for this example
Not all pre-assigned Cyclic Send Data is shown here.
Assignments can be found in SIMOCODE ES under Further Function
Modules > Outputs > Cyclic Send Data
.
Configuration with PLC/PCS [DP] control station is complete
The configuration with SIMOCODE pro is now complete. You now have a
reversing starter with an additional control station via PROFIBUS DP.
The contactors for clockwise and counterclockwise rotation are controlled
by setting the corresponding bits.
SIMOCODE pro
1
2
3
1
2
Bit 0.1
Bit 0.2
PROFIBUS DP
Bit 0.5
LEFT
OFF
RIGHT
LEFT
OFF
RIGHT
Status -
ON<
OFF
ON>
QE1
QE2
Bit 0.0
Bit 0.1
Bit 0.2
BU Inputs
BU Outputs
Bit 0.0
DP
Cyclic
DP
Cyclic
Send
Control Stations
RIGHT
LEFT
S1
Receive
