Motor control
SIMOCODE pro
4-12 GWA 4NEB 631 6050-22 DS 03

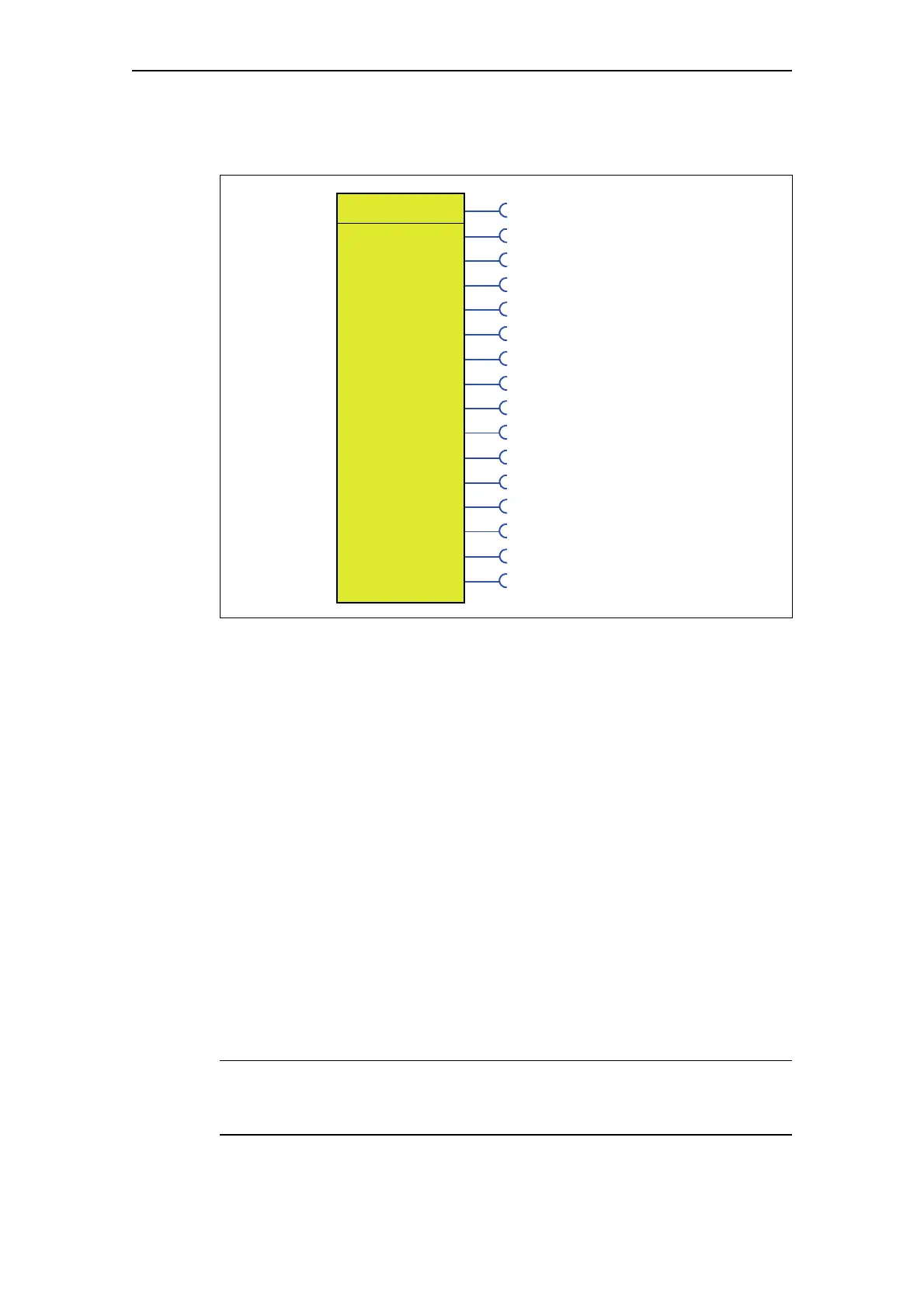

General representation of the control function ("Extended Control" function block)
Fig. 4-9: General representation of the control function ("Extended Control" function block)
Contactor controls:
The QE contactor controls are switched dependent on the incoming control
commands and taking the specified control function into consideration
including all corresponding interlocks, feedbacks, corresponding parameters
and the higher-level motor protection. In general, the QE contactor controls
are directly connected to the outputs of the basic unit or the digital modules
and switch the connected contactors using relays. The number of usable QE
contactor controls is directly dependent on the specified control function.
Lamp controls and status information:
The feeder status feedback is signaled via the status information or the QL
lamp controls. They are all directly dependent on the status of the auxiliary
control input "FB ON". The number of usable lamp controls and status
information is directly dependent on the specified control function.
Feeder status feedback:
• Status information, e.g. "Status ON<": These are transmitted, for example, via
PROFIBUS DP to the automation system and signal the status of the feeder
there.
• Displays (lamp control) "Display - QLE<": These can, for example, activate a
signal lamp or a pushbutton lamp for status display.
Note
If the motor is running in test operation, the QLE.../QLA lamp outputs show
a different response (e.g. flashing).
Trip - Antivalence
Trip - End position
Trip - Double 1
Status - Change-over pause active
Trip - Double 0
Trip - Stalled positioner
Fault - FB OFF
Fault - Execution ON command
Fault - FB ON
Fault - Execution STOP command
TQ OPEN
Status - Start active
FB CLOSED
TQ CLOSED
Status - interlocking time active
FB OPEN
Extended Control
Settings:
•Timings
•Operating mode
•Star-delta
