Siemens SIMOCODE pro System Manual

Motor control
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
4-19

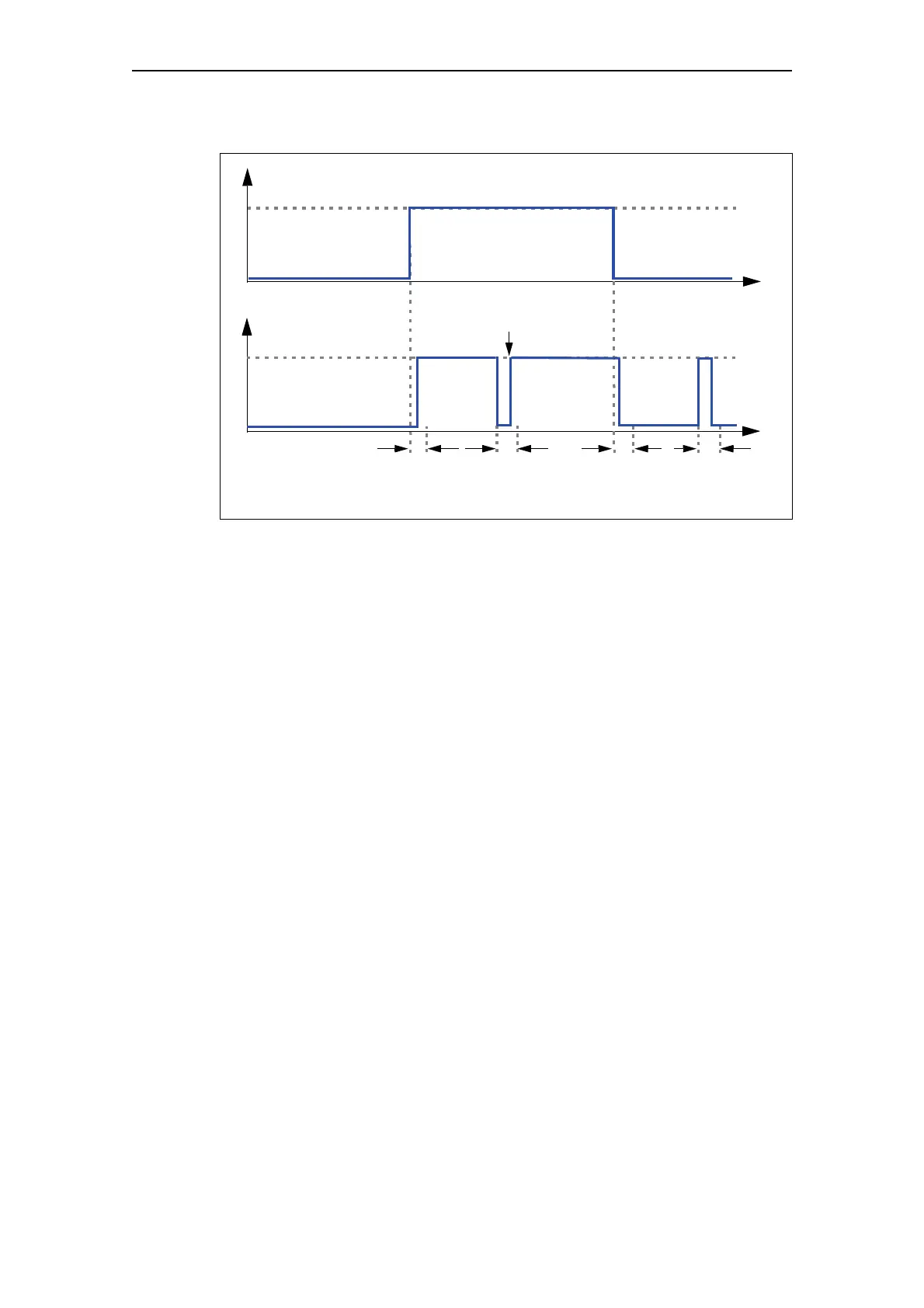

Fig. 4-11: Execution time (ET) and feedback time (FT) in relation to FB ON
Faults
The contactor controls are deactivated.
The following is also issued:
• A flashing signal on the QLS lamp control
• A flashing signal on the "GEN. FAULT" LED
• The "Status - General fault" signal
• The corresponding signaling bit of the fault.
1
0
OFF
Switch ON
ON
OFF
1
0
OFF
Tripping
QE
FB ON
ET FT ET FT
Voltage failure,
e.g. pulsating current
ET: Execution time
FT: Feedback time

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
