Siemens SIMOCODE pro System Manual

Motor control
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
4-55
Notice
The corresponding torque switch must not respond before the associated
limit switch when the torque switch TO (OPEN) and/or TC (CLOSED) is
connected. In this case, the positioner is switched off immediately with the
fault message "Trip - Blocked positioner".
If both limit switches respond at the same time (FO=1 and FC=1), the
positioner is immediately switched off via the fault message
"Trip - Double 1".
If both torque switches respond at the same time (TO=0 and TC=0), the
positioner is switched off immediately with the fault message "Trip - Double
0".
If the end position feedback does not correspond to the control command,
the positioner is switched off with the fault message "Trip - End position
fault".
Schematic

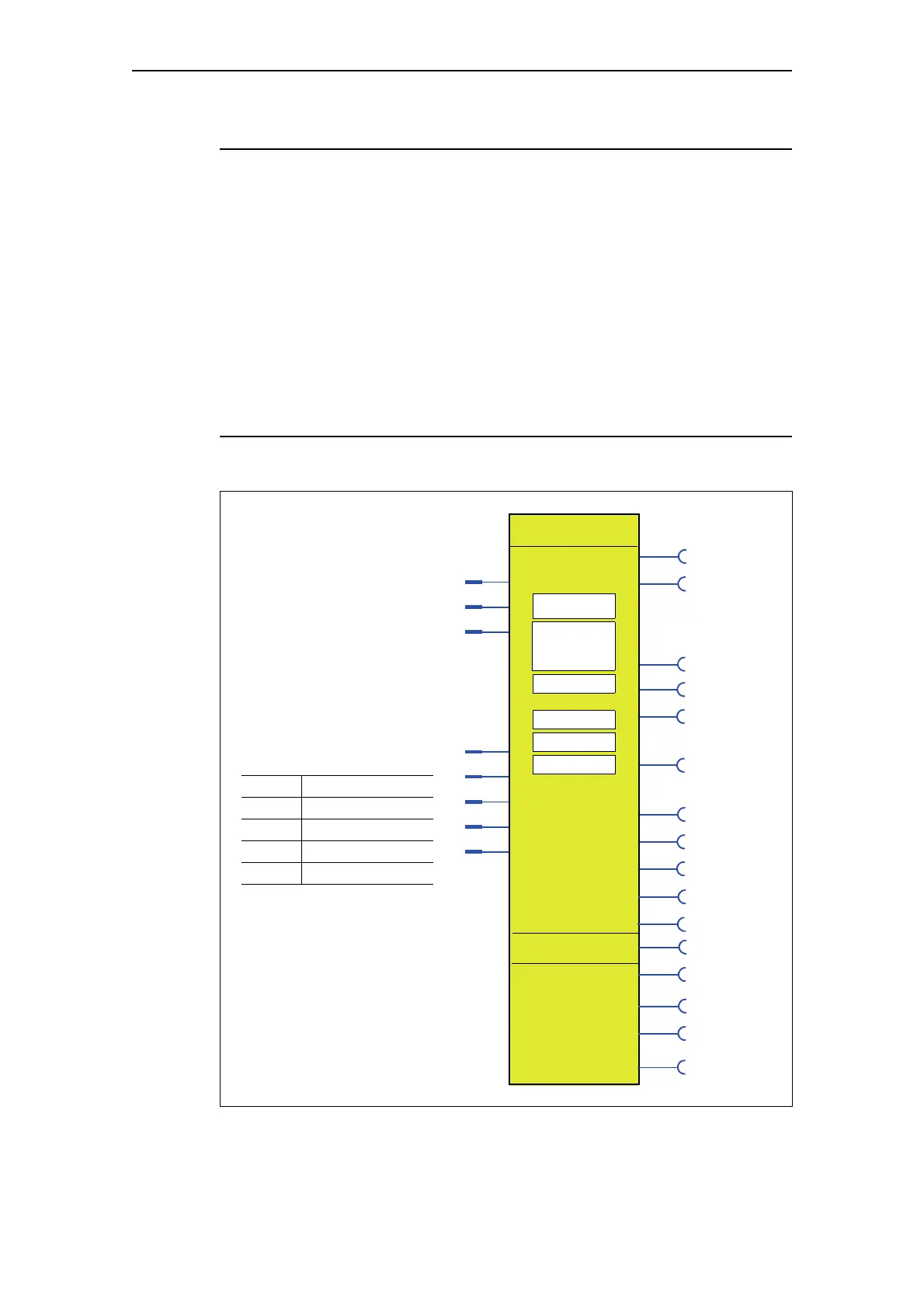

Fig. 4-24: Schematic of the "Positioner" control function, "Protection/Control" function block
Control commands
Contactor controls
Displays
Status
QE1
QE2
QLE<
QLA
QLE>
QLS
ON <
OFF
ON >
ON <
OFF
ON >
OPEN
Stop
(Fault)
CLOSED
* Abbreviations
FB ON Feedback ON
FC Feedback CLOSED
FO Feedback OPEN
TC Torque CLOSED
TO Torque OPEN
Auxiliary control inputs*
FB ON
FC
FO
TC
TO
OPEN
CLOSED
OPEN
STOP
CLOSED
Protection/Control
Feedback time
Execution time
Interlocking time
Non-maintained
Load type
Positioner
Motor protection
Interlocking time active
Positioner closes
Positioner opens
FC
FO
TC
TO
Extended control
Separate failsafe
function from
command mode
control function

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
