Siemens SIMOCODE pro

Standard functions
SIMOCODE pro
10-22 GWA 4NEB 631 6050-22 DS 03
Settings of the DIP switches (DM-F Local)
Before commissioning the DM-F PROFIsafe set the PROFIsafe address as
follows:

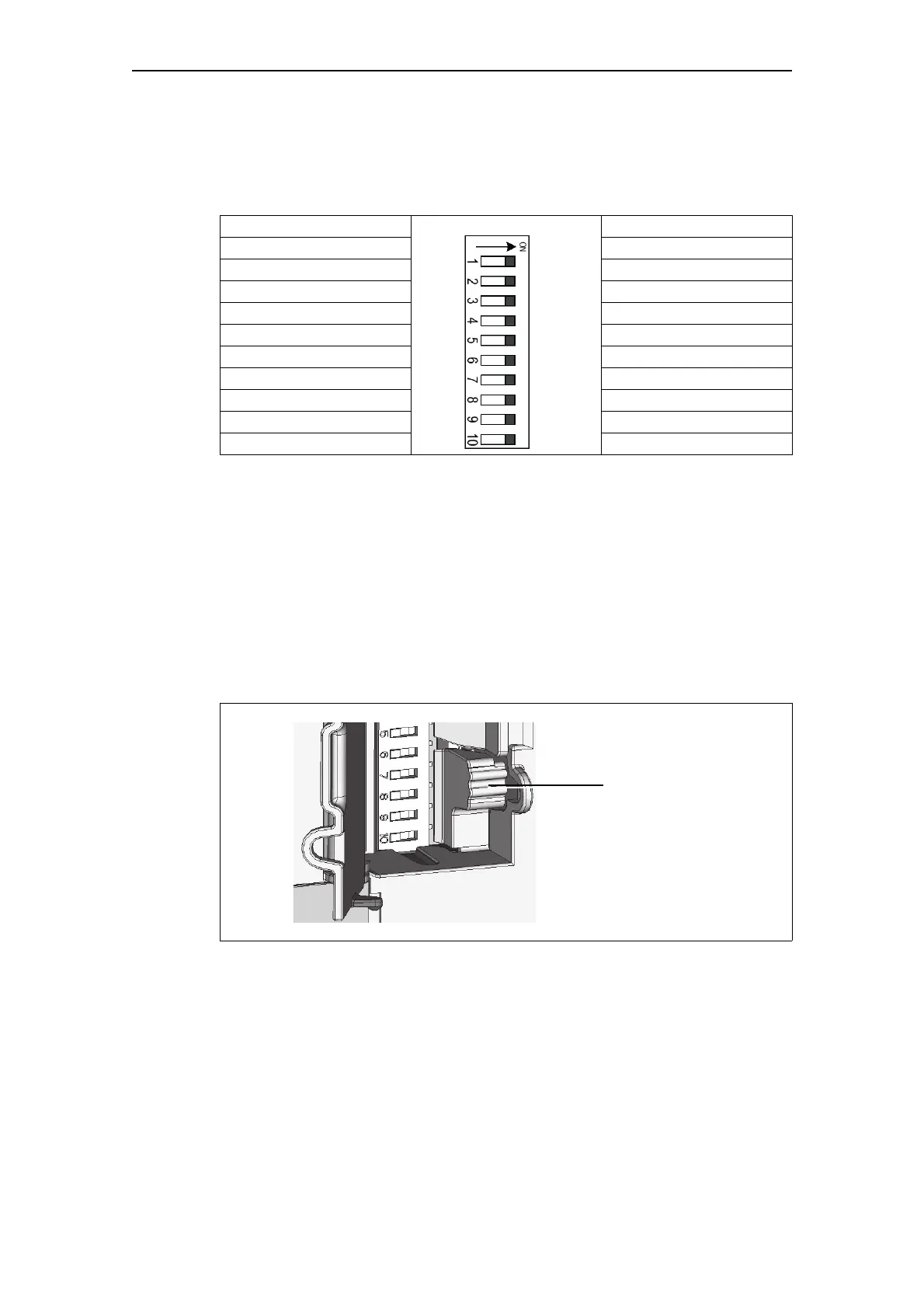

Table 10-13: DIP switch settings (DM-F PROFIsafe)
When one DIP switch is set to ON, the respective value is active.
When more than one DIP switch is set to ON, the respective values must be added
up.
• Briefly press the SET/RESET button.
LEDs from 1 to 10 show the current PROFIsafe address.
• Setting the PROFIsafe address:
– Switch off the supply voltage
– Set the DIP switch configuration
– Switch on the supply voltage.
Fig. 10-12: SET/RESET button
Switch position Value
1=2
0
1
2=2
1
2
3=2
2
4
4=2
3
8
5=2
4
16
6=2
5
32
7=2
6
64
8=2
7
128
9=2
8
256
10 = 2
9
512
SET/RESET button
