Siemens SIMOCODE pro System Manual

Logic modules
SIMOCODE pro
11-30 GWA 4NEB 631 6050-22 DS 03

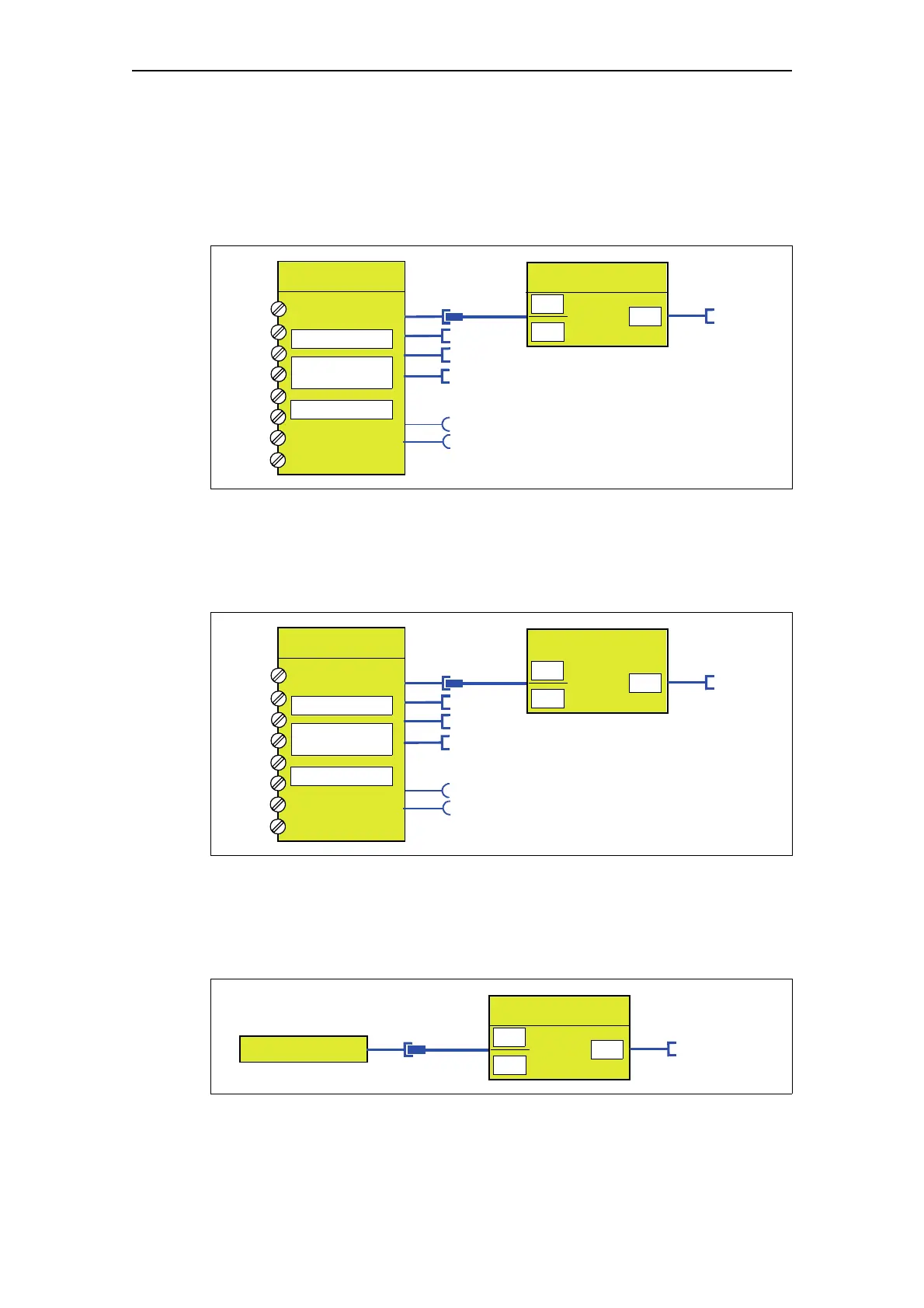

Examples
Example 1
• Conversion of the maximum temperature of the temperature module from
K to °C
Fig. 11-22: Example 1
Example 2
• Conversion of the maximum temperature of the temperature module from
K to °F
Fig. 11-23: Example 2
Example 3
• Conversion of the motor current I_max. from % to A (e.g. set current
I
s
= 3.36 A) (only possible for motors with one rotational speed)
Fig. 11-24: Example 3
TM Inputs
Max. temperature
Sensor type
0...65535°C
Calculator 1
1
Response at sensor fault/
Out of range
Number of active sensors
1
-273
Unit = 1 K
* Input +
TM Inputs
Max. temperature
Sensor type
0...65535°F
Calculator 1
9
Response at sensor fault/
Out of range
Number of active sensors
5
-460
Unit = 1 K
* Input +
Max. current I_max 0 ... 3427 (0 ... 34.72 A)
Calculator 1
336
100
0
Unit = 1 %
* Input +
