Siemens SIMOCODE pro

Mounting, wiring, interfaces
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
13-37

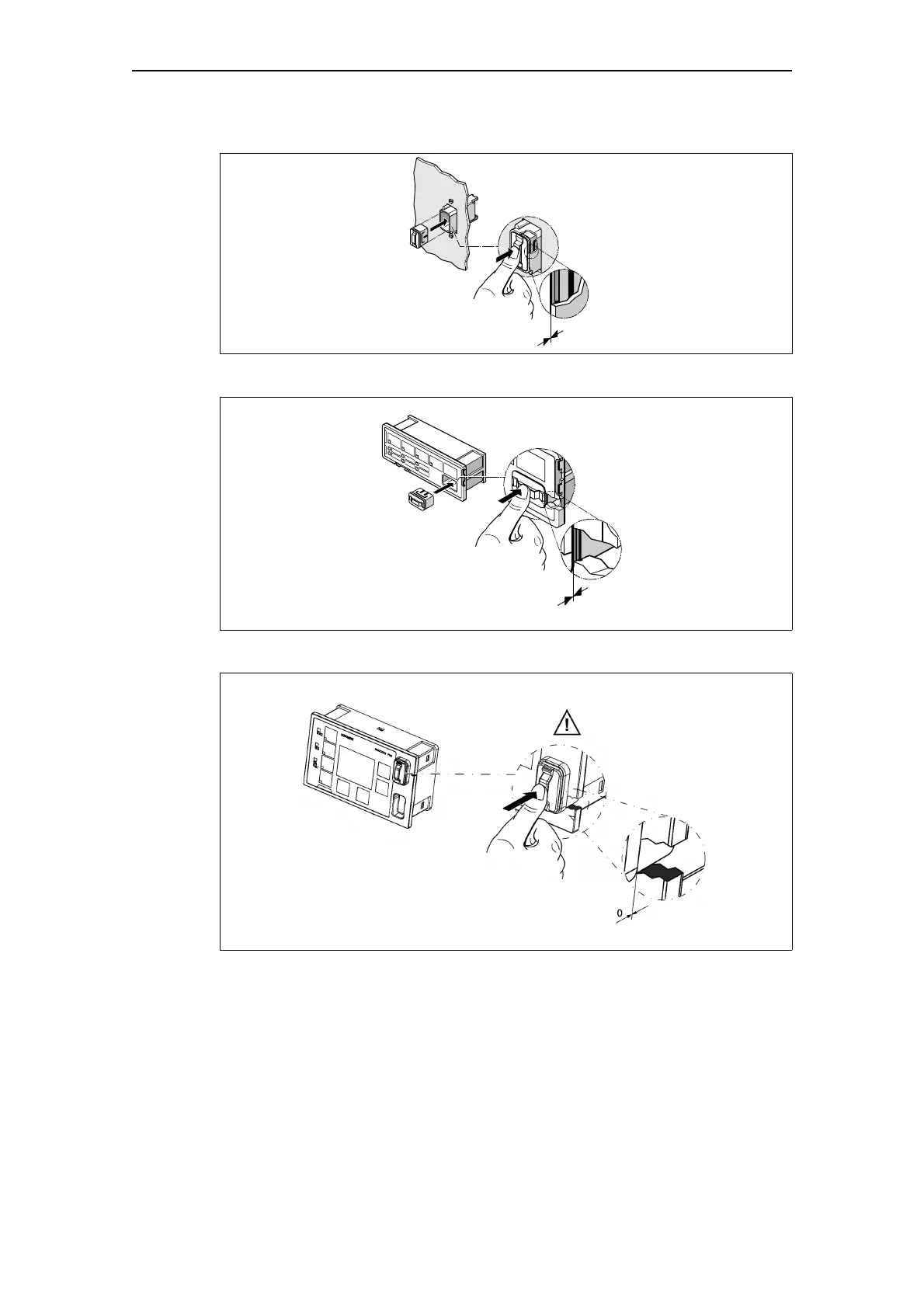

Fig. 13-23: Closing the system interface using the system interface cover on the door adapter
Fig. 13-24: Closing the system interface using the system interface cover on the operator panel
Fig. 13-25: Closing the system interface using the system interface cover on the operator panel
with display
