Siemens SIMOCODE pro System Manual

Mounting, wiring, interfaces
SIMOCODE pro
13-38 GWA 4NEB 631 6050-22 DS 03
Example

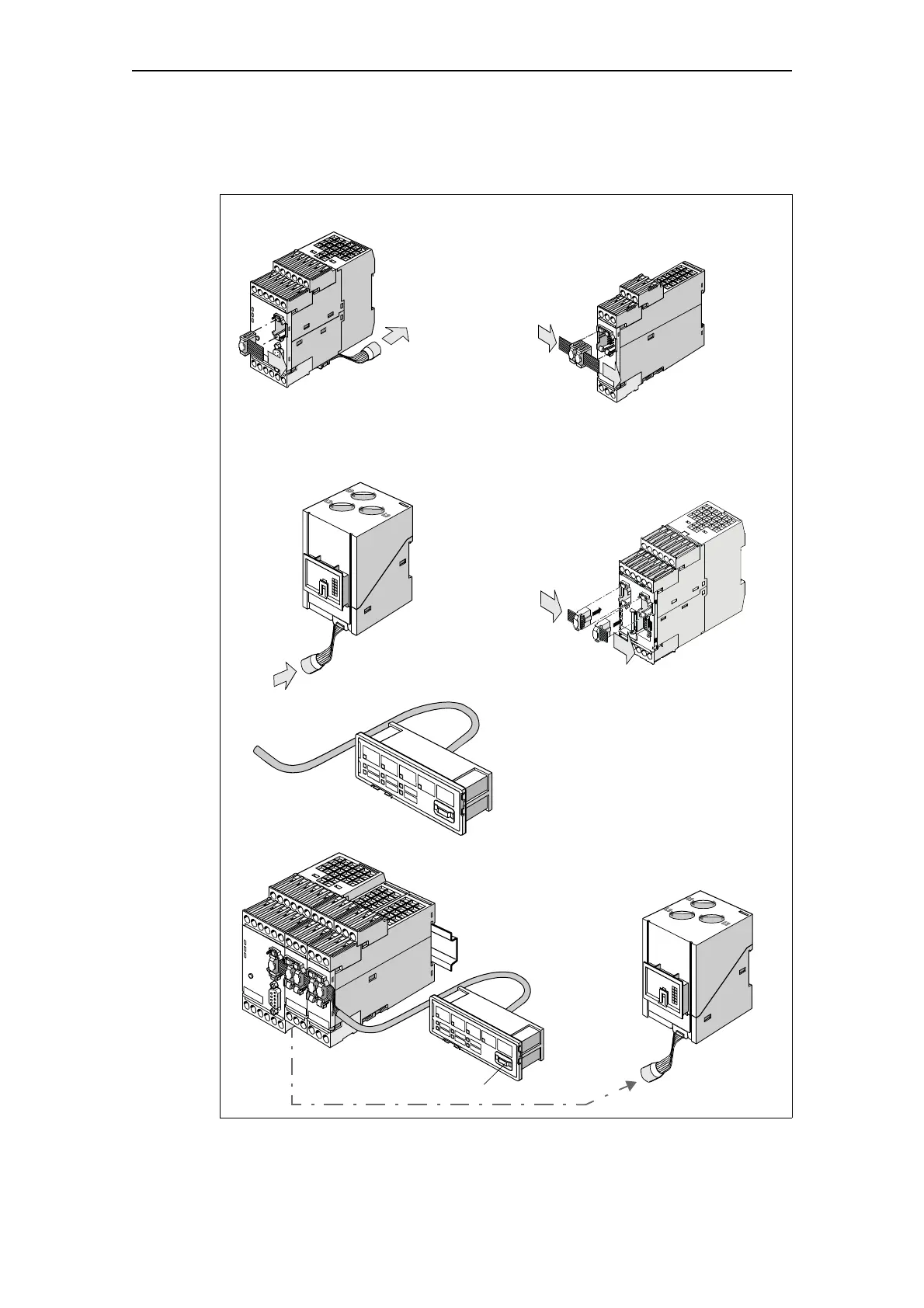

The following figure shows an example of a SIMOCODE pro V installation:
Fig. 13-26: Example of system interfaces
UF-01130
SIMOCODE pro V
Basic unit (BU2)
Current measuring
module (IM)
Operator panel (OP)
Expansion modules
Expansion modules (DM, AM, EM, TM)
Incoming, from
• Expansion module
• Basic unit BU2
Outgoing, to
• Expansion module
• Operator panel
Incoming, from
• Basic unit
UF-01130
Operator panel (OP)
Incoming, from
• Upstream expansion module
• Basic unit
Cover
Basic units (BU)
Outgoing, to
• Current measuring module
Outgoing, to
• Expansion module
• Operator panel
Current measuring module (IM)
• Decoupling module
Digital module DM-F Local,
DM-F PROFIsafe
Outgoing, to
• Expansion module
• Operator panel
Incoming, from
• Expansion module
• Basic unit BU2

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
