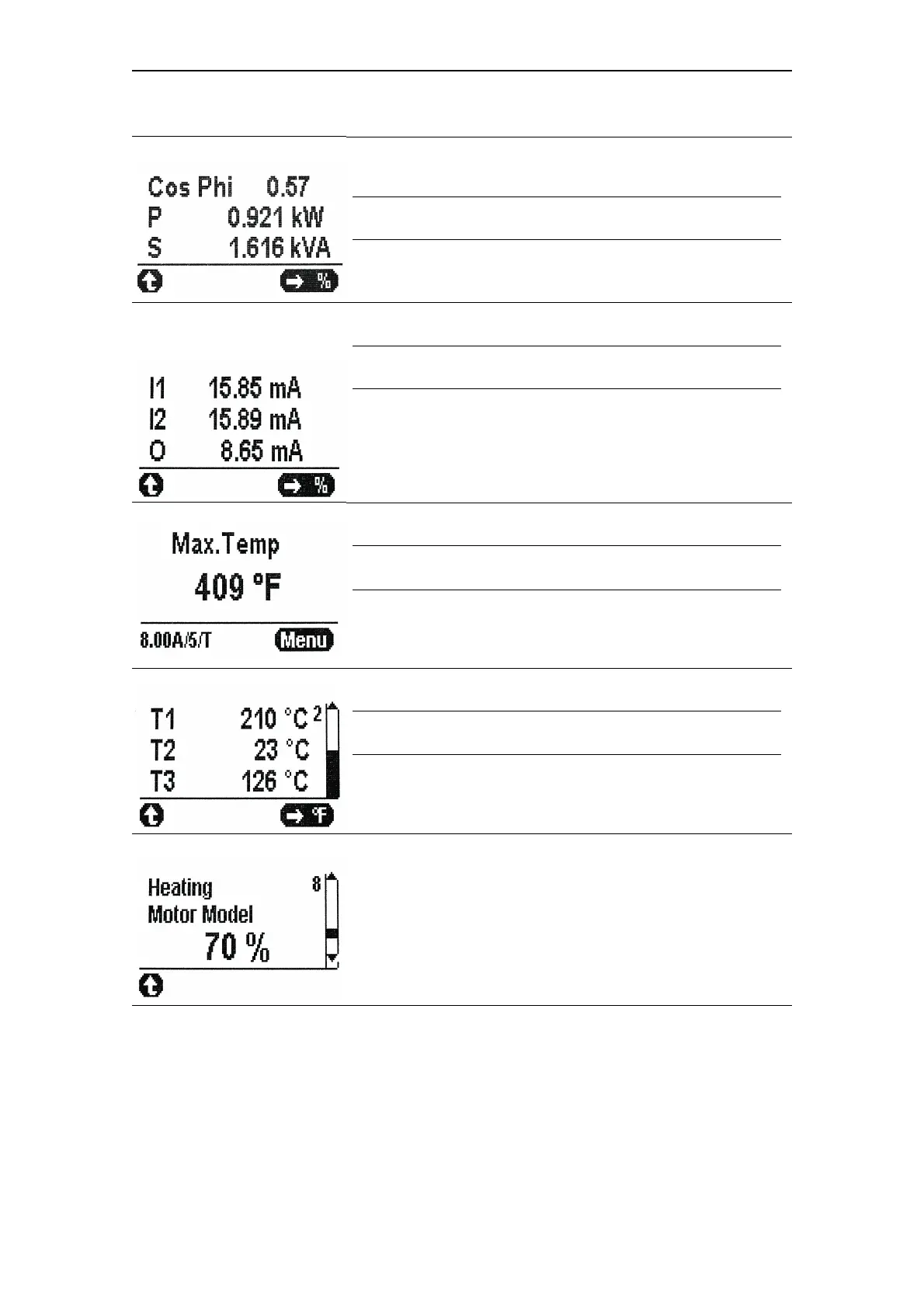

Cos phi, P, S (example) Displays the power factor (0 to 100 %, or absolute, switchable via
the right-hand softkey), the active power in kW and the apparent
power in kVA.
Note
Only possible if a current/voltage measuring module is being used.
Analog input 1
Analog input 2
Analog output (example)
Displays the current values at both inputs and the current value at
the output of the analog module, switchable between mA and %.
Note
This is only available if an analog module is being used.
Max. temperature (example) Displays the maximum temperature of all used sensor measuring
circuits of the temperature module in °C (switchable to °F).
Note
Only possible if a temperature module is being used.
T1, T2, T3 (example) Displays the individual temperatures of all used sensor measuring
circuits of the temperature module in °C (switchable to °F).
Note
Only possible if a temperature module is being used.
Thermal motor model (example) Displays current internal thermal motor model in %.
Table 1-11: Display of measured values in the measured value display (Cont.)
