Display of measured values in the measured values display

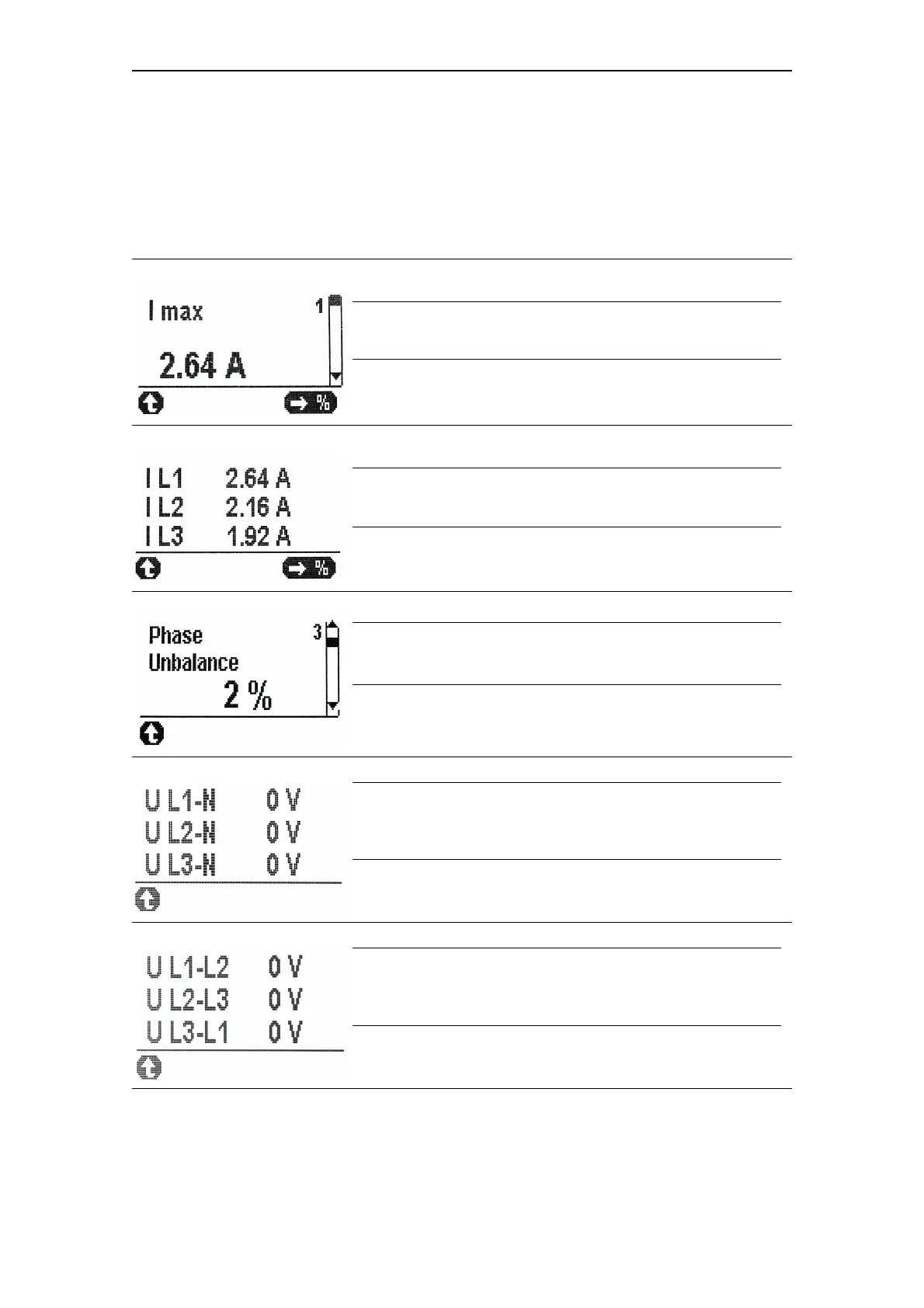

The "Measured Values" menu item displays all current SIMOCODE pro
measured values. Depending upon the type of expansion modules used, all
or only some of the values listed here will be available.
Here are the most important menus:
I max (example) Displays the maximum current of all three phases, switchable
between A and % of I
s
.
Note
Only possible if a current measuring module or current/voltage
measuring module is used.
IL1, IL2, IL3 (example) Displays the maximum current of all three phases, switchable
between A and % of I
s
.
Note
Only possible if a current measuring module or current/voltage
measuring module is used.
Phase unbalance (example) Displays current phase unbalance in %.
Note
Only available if a current measuring module or current
/voltage measuring module is used.
UL1-N, UL2-N, UL3-N (example) Displays all phase voltages in V.
Note
Only possible if a current/voltage measuring module is being used.
If an OPD above version *E04* is used: Values will only be
displayed if phase voltage is set/configured.
U L1-L2, U L2-L3, U L3-L1 Displays all line-to-line voltages in V.
Note
Only possible if a current/voltage measuring module is being used,
line-to-line voltage is set/configured and the OPD used is above
version *E04*.
Table 1-11: Display of measured values in the measured value display
