Siemens SIMOCODE pro System Manual

System description
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
1-59
Note
If measured values are not depicted on the main display for a sustained
period of time, a profile has been selected in the display settings that is no
longer supported, due, for example, to a changed system expansion or
changed hardware configuration. The profile must be reselected.

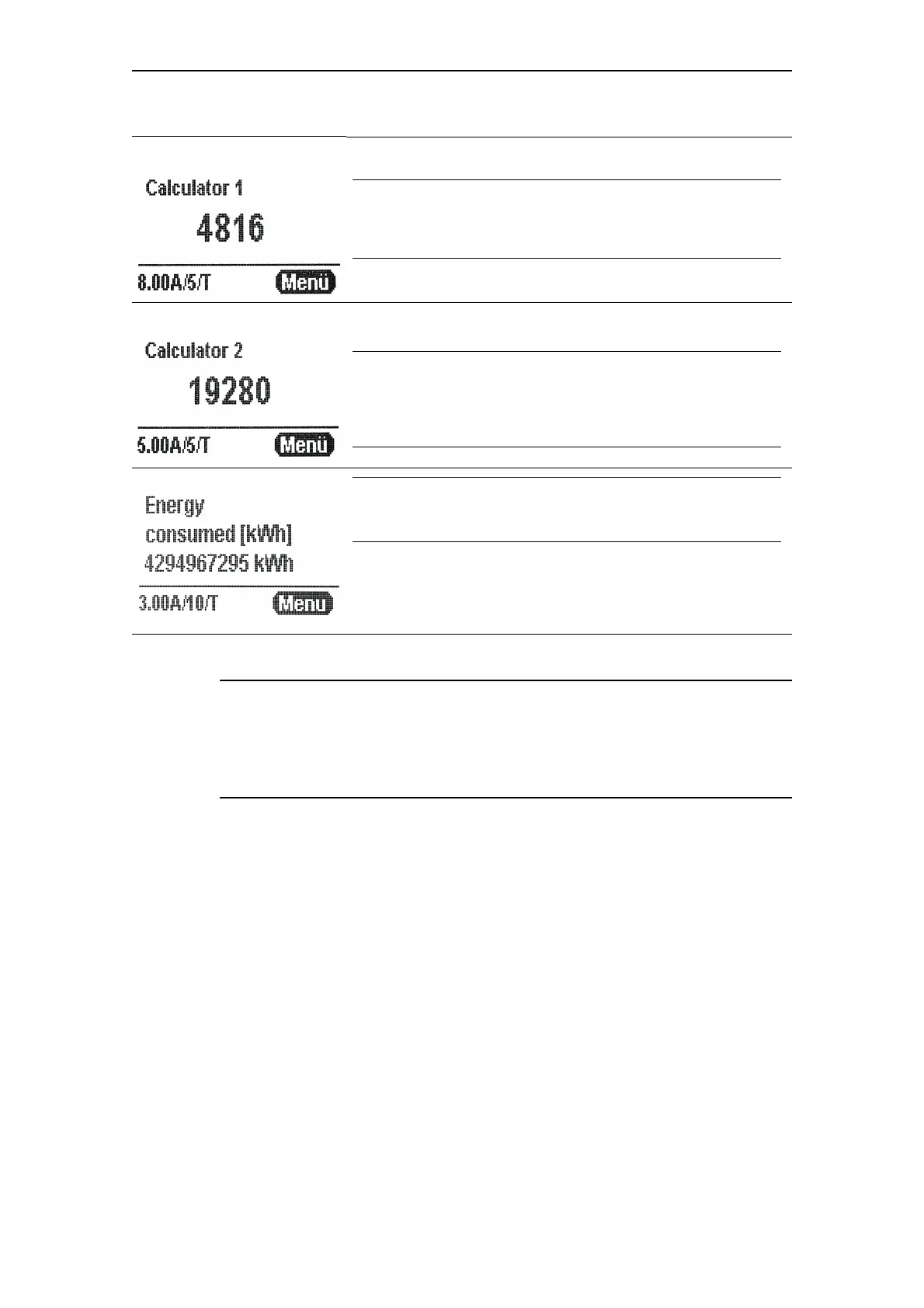

Calculator 1 (example) Displays the calculated result that the function block Calculator 1
provides, unitless in the range of 0 to 65535.
Note
Enables, for example, the depiction on the switchgear display of a
2-byte value sent directly from the automation system, i.e. the
unitless depiction of all 2-byte values available in SIMOCODE pro.
Calculator 2 (example) Displays the calculated result that the function block Calculator 2
provides, unitless in the range of 0 to 65535.
Note
Enables, for example, the depiction on the switchgear display of a
2-byte or 4-byte value sent directly from the automation system, i.e.
the unitless depiction of all 2 or 4-byte values available in
SIMOCODE pro.
Energy consumed (example)
Note
Only possible if a current/voltage measuring module is being used
and the OPD is above version *E04*.
Table 1-10: Read and adapt main display (Cont.)

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
