Siemens SIMOCODE pro System Manual

System description
SIMOCODE pro
1-58 GWA 4NEB 631 6050-22 DS 03

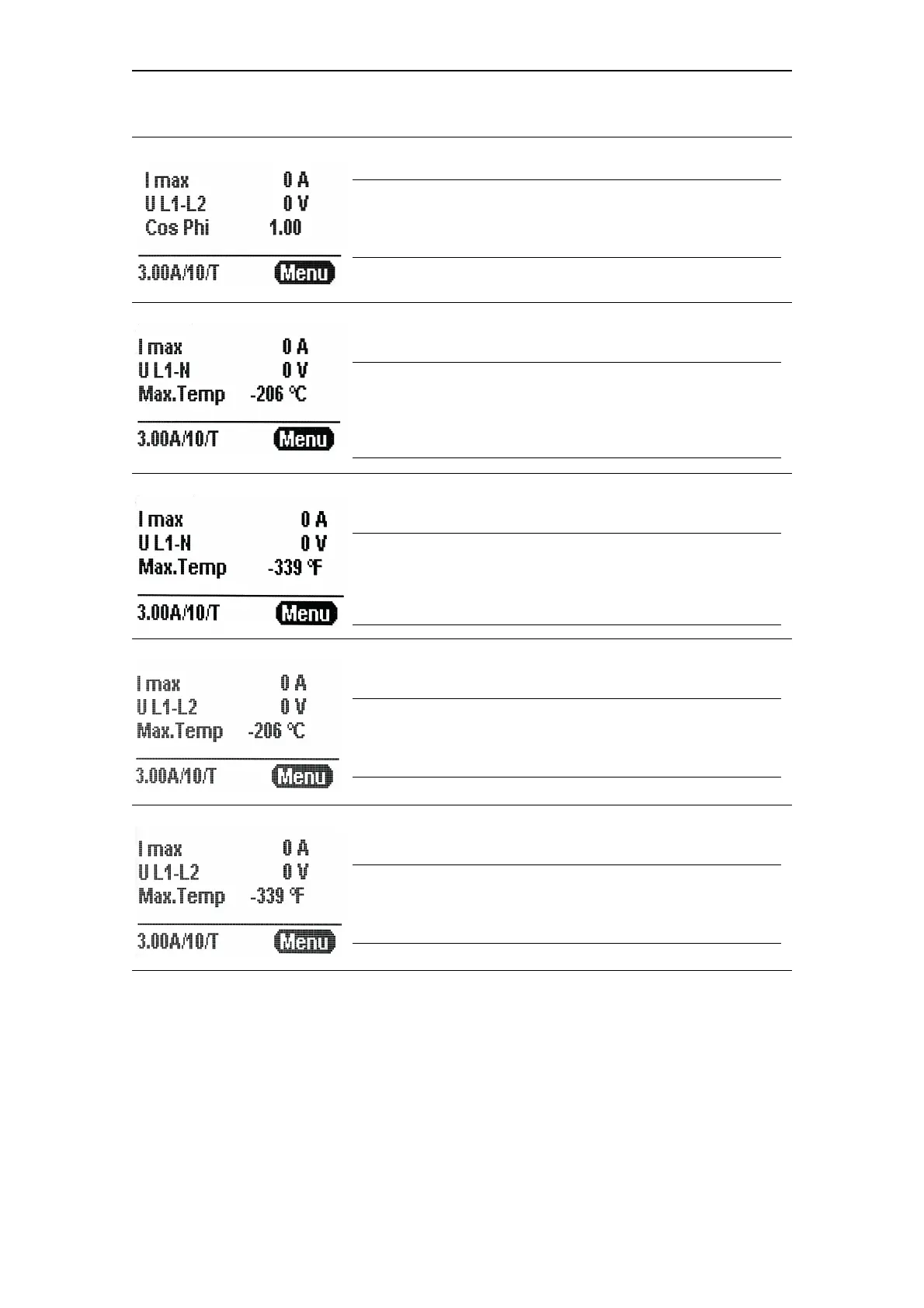

I_max, UL1-L2, Cos Displays the maximum current of all three phases in A, the line-to-
line voltage UL1-L2 in V and the power factor.
Note
Only possible if a current/voltage measuring module is being used,
line-to-line voltage is set/configured and the OPD is above version
*E04*.
I_max, UL1-N, °C Displays the maximum current of all three phases in A, the phase
voltage UL1-N in V, and the maximum temperature of all used
sensor measuring circuits of the temperature module in °C.
Note
Only possible if a current/voltage measuring module and
temperature module are being used. If an OPD above version
*E04* is used: Values will only be displayed if phase voltage is set/
configured.
I_max, UL1-N, °F Displays the maximum current of all three phases in A, the phase
voltage UL1-N in V, and the maximum temperature of all used
sensor measuring circuits of the temperature module in °F.
Note
Only possible if a current/voltage measuring module and
temperature module are being used. If an OPD above version
*E04* is used: Values will only be displayed if phase voltage is set/
configured.
I_max, UL1-L2, °C Displays the maximum current of all three phases in A, the line-to-
line voltage UL1-L2 in V, and the maximum temperature of all used
sensor measuring circuits of the temperature module in °C.
Note
Only possible if a current/voltage measuring module is being used,
line-to-line voltage is set/configured and the OPD used is above
version *E04*.
I_max, UL1-L2, °F Displays the maximum current of all three phases in A, the line-to-
line voltage UL1-L2 in V, and the maximum temperature of all used
sensor measuring circuits of the temperature module in °F.
Note
Only possible if a current/voltage measuring module is being used,
line-to-line voltage is set/configured and the OPD used is above
version *E04*.
Table 1-10: Read and adapt main display (Cont.)

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
