Siemens SIMOCODE pro System Manual

System description
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
1-57

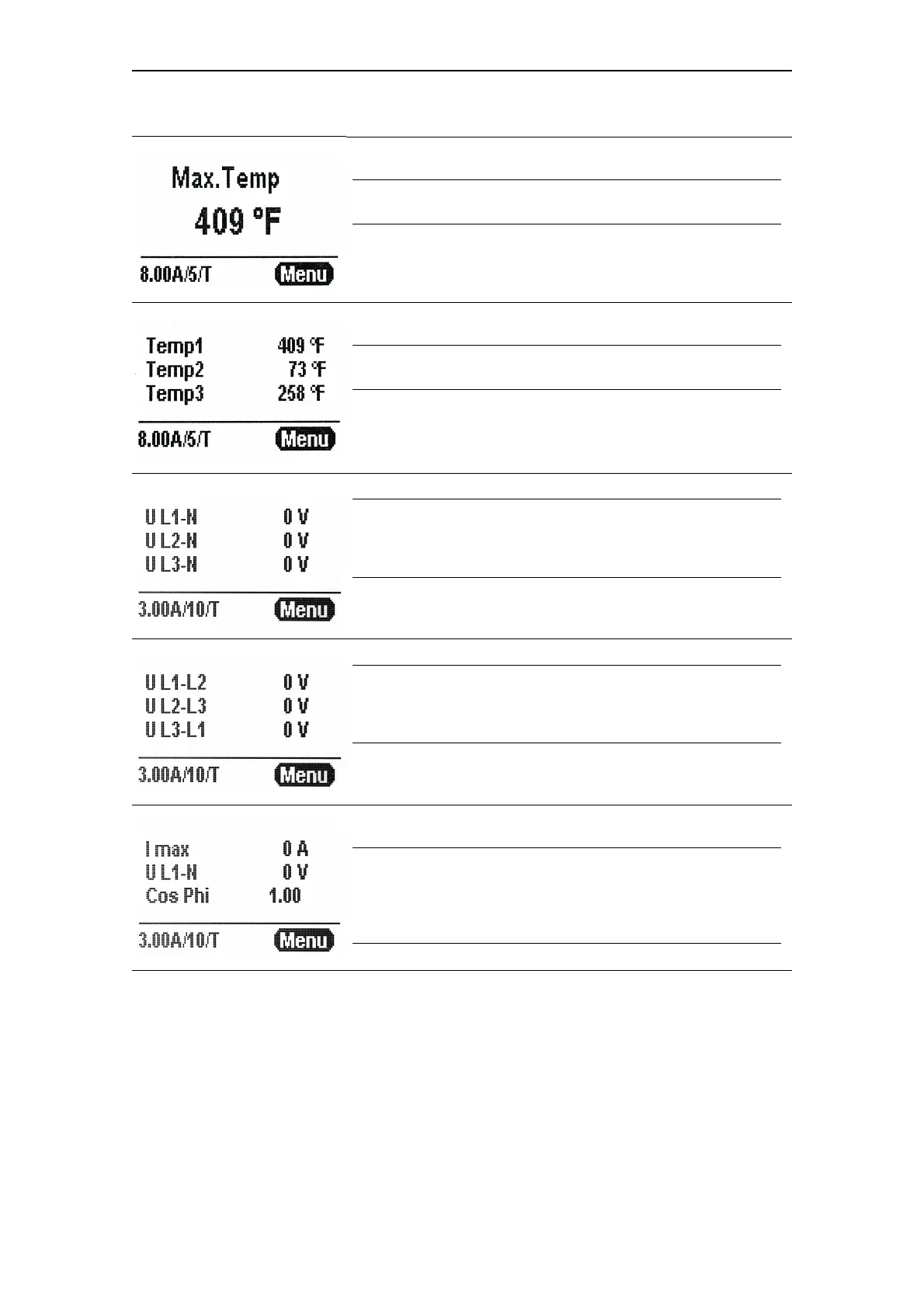

Max. temp. °F (example) Displays the maximum temperature of all used sensor measuring
circuits of the temperature module in °F.
Note
Only possible if a temperature module is used.
Temperatures °F (example) Displays the individual temperatures of all used sensor measuring
circuits of the temperature module in °F.
Note
Only possible if a temperature module is used.
UL1-N, UL2-N, UL3-N Displays phase voltages UL1-N, UL2-N and UL3-N in V.
Note
Only possible if a current/voltage measuring module is being used.
If an OPD above version *E04* is used: Values will only be
displayed if phase voltage is set/configured.
UL1-L2, UL2-L3, UL3-L1 Shows line-to-line voltages UL1-L2, UL2-L3, UL3-L1 in V.
Note
Only possible if a current/voltage measuring module is being used,
line-to-line voltage is set/configured and the OPD is above version
*E04*.
I_max, UL1-N, Cos Displays the maximum current of all three phases in A, the phase
voltage UL1-N in V and the power factor.
Note
Only possible if a current/voltage measuring module is being used.
If an OPD above version *E04* is used: Values will only be
displayed if phase voltage is set/
configured.
Table 1-10: Read and adapt main display (Cont.)

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
