Siemens SIMOCODE pro System Manual

System description
SIMOCODE pro
GWA 4NEB 631 6050-22 DS 03
1-63

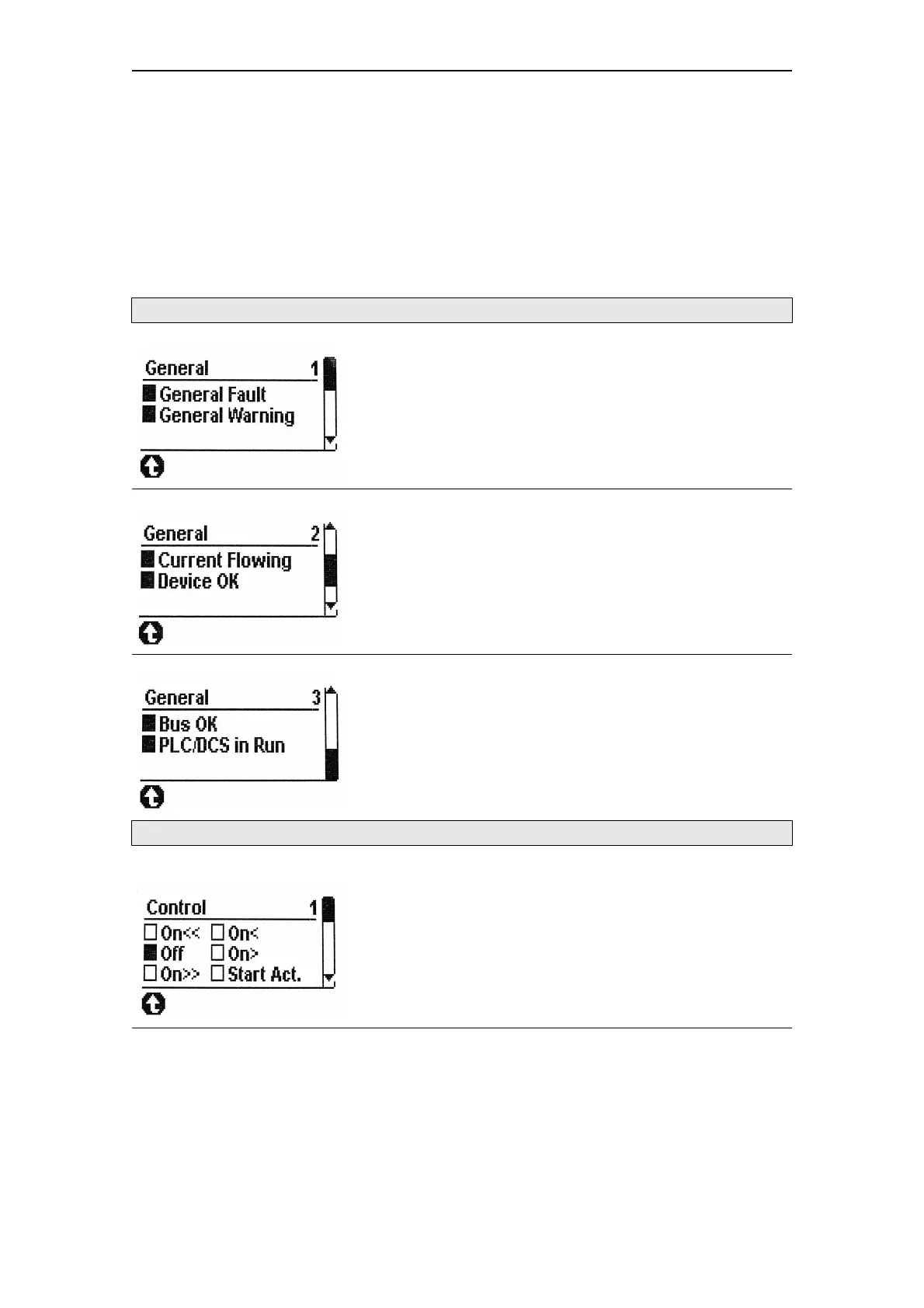

Motor protection and motor control status
The status display shows all higher-level status information, i.e. all status
information relevant to the protection and controlling of the motor. The type
of status information depicted is, therefore, in part directly dependent upon
the parameterized control function and the hardware configuration of
SIMOCODE pro, and may vary.
Here are the most important menus:
General
General fault, general warning
Current flowing, device ok
Bus ok, PLC/PCS in Run
Control: The display of the status information can vary according to the control function.
ON<<, ON<, OFF, ON>, ON>>,
Start active
Table 1-12: Motor protection and motor control status

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
