Siemens SIMOCODE pro System Manual

System description
SIMOCODE pro
1-78 GWA 4NEB 631 6050-22 DS 03
Digital module 1 as DM-F Local

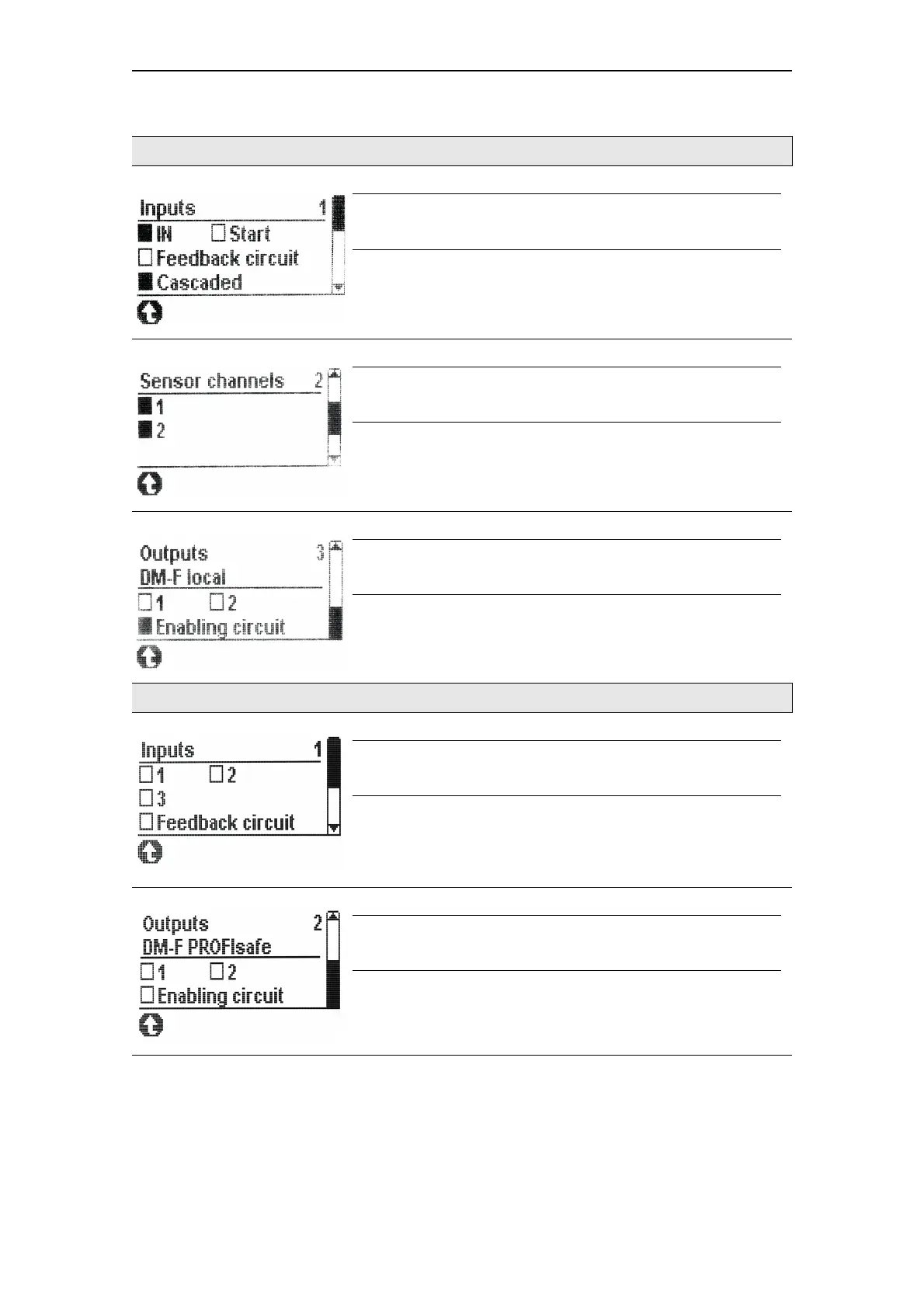

Inputs DM-F Local Inputs "IN", "Start", "Feedback circuit", "Cascaded".
Note
Only possible if digital module 1 is "Local", an OPD above version
*E04* and BU2 above *E07* is being used.
Sensor channels DM-F Local Sensor channels 1,2
Note
Only possible if digital module 1 is "Local", an OPD above version
*E04* and BU2 above *E07* is being used.
Outputs DM-F Local Outputs 1, 2, "Enabling circuit".
Note
Only possible if digital module 1 is "Local", an OPD above version
*E04* and BU2 above *E07* is being used.
Digital module 1 is DM-F PROFIsafe
Inputs DM-F PROFIsafe Inputs 1, 2, 3, "Feedback circuit".
Note
Only available if digital module 1 is "PROFIsafe" and if an OPD above
version *E04* and BU2 above *E07* is being used.
Outputs DM-F PROFIsafe Outputs 1, 2, "Enabling circuit".
Note
Only available if digital module 1 is "PROFIsafe" and if an OPD above
version *E04* and BU2 above *E07* is being used.
Table 1-15: Displays the current status of all device I/Os (Cont.)

Siemens SIMOCODE pro Specifications

General

Protection Class	IP20
Mounting Type	DIN rail mounting
Rated Operational Voltage	24 V DC
Rated Current	Up to 820 A
Protection Functions	Overload, short-circuit, phase failure, asymmetry, ground fault, motor stall
Operating Temperature Range	-25°C to +60°C
Communication Protocols	PROFIBUS DP, PROFINET, Modbus RTU
Analog Outputs	Up to 2
Temperature Monitoring	PTC/KTY, RTD (PT100/PT1000)
Digital Outputs	Relay outputs, Solid-state outputs
Analog Inputs	0/4-20mA, PT100/PT1000
