Topology rules for DRIVE-CLiQ
5.1 Connection examples
SINAMICS S120 Combi
126 Manual, 11/2017, 6SL3097-4AV00-0BP7
5.1.2
Operation with a 4 axes Power Module

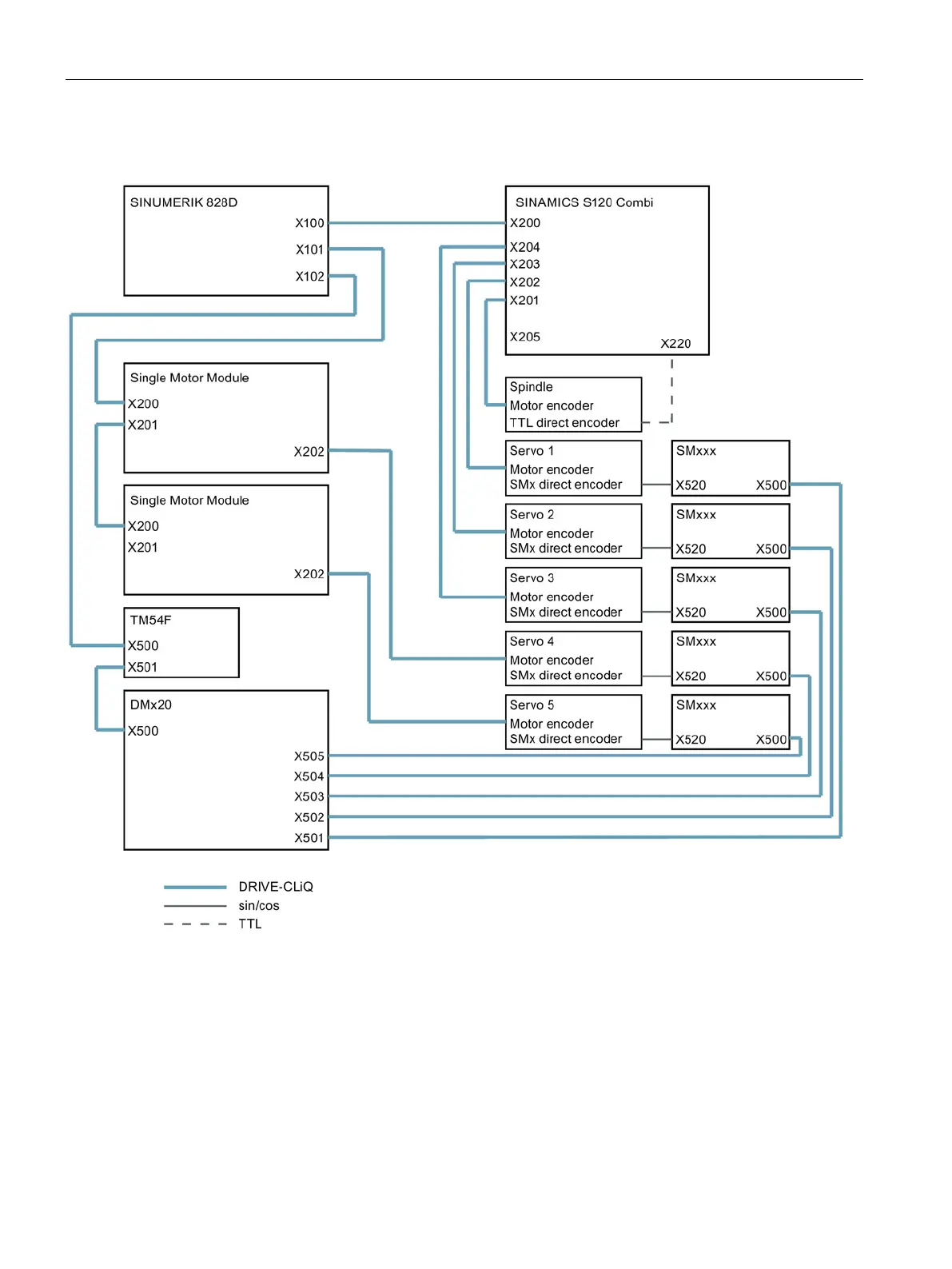

Figure 5-3 DRIVE-CLiQ wiring with TTL encoder for 1 S120 Combi 4-axis Power Module and 2 Single Motor Modules
