Siemens SINAMICS S120 Combi - DRIVE-Cliq Interface

Encoder system connection
10.4 Sensor Module External SME25
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
257
10.4.2.2
DRIVE-CLiQ interface

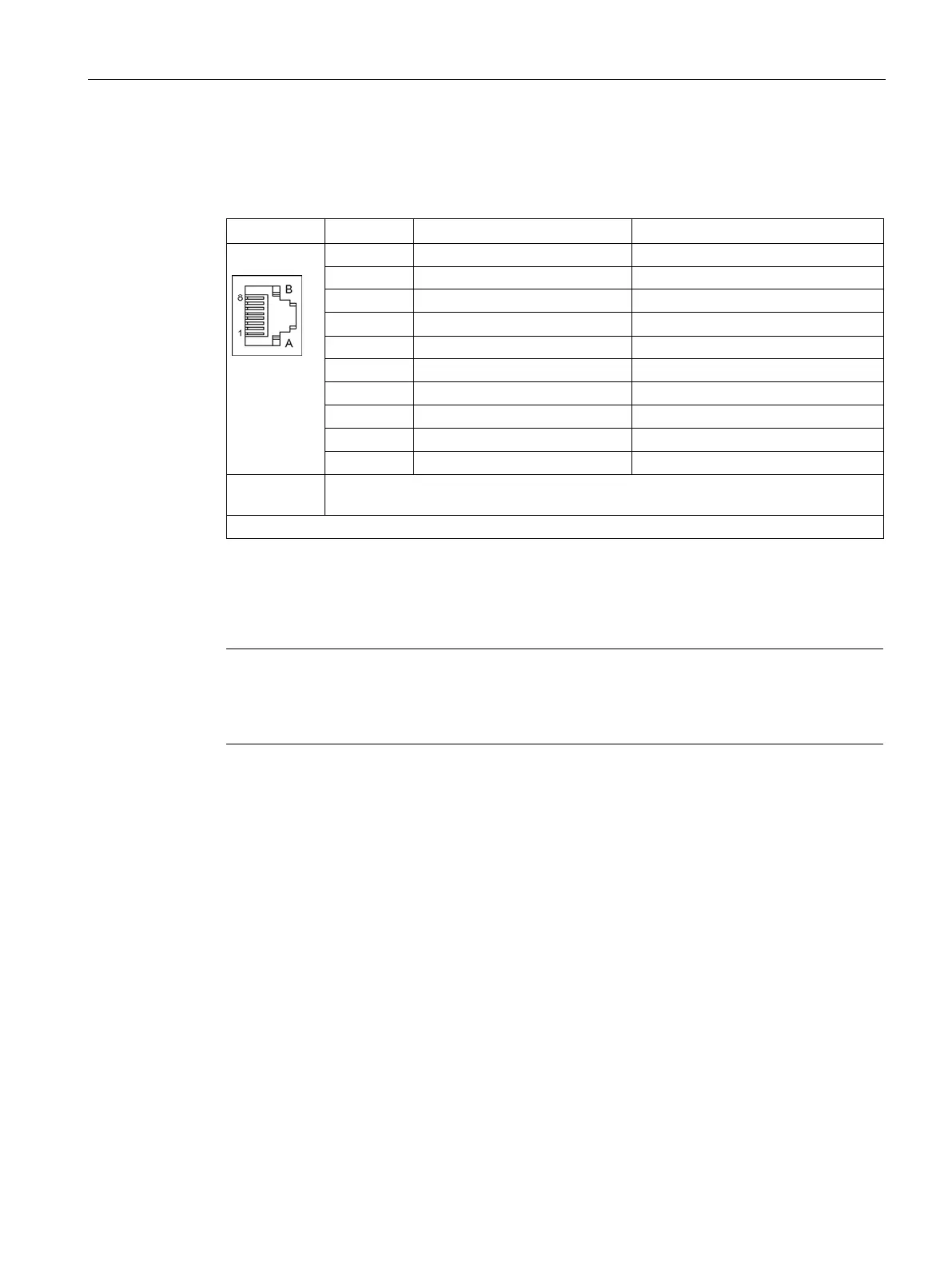

Table 10- 18 DRIVE-CLiQ interface
Pin
Signal name
Technical specifications
1
TXP
Transmit data +
2
TXN
Transmit data -
3
RXP
Receive data +
4 Reserved, do not use
5
Reserved, do not use
6
RXN
Receive data -
7
Reserved, do not use
8
Reserved, do not use
A
+ (24 V)
Power supply
B
M (0 V)
Electronics ground
Connector
type
DRIVE-CLiQ socket
Current consumption, maximum 0.25 A
The blanking cover for the DRIVE
-CLiQ port to secure the degree of protection IP 67 is not included in
the scope of delivery.
Blanking covers (6 units), article number: 6SL3066-4CA01-0AA0
Note
Only MOTION
-CONNECT DRIVE-CLiQ cables may be used for connections. The maximum
cable length is 100 m for MOTION
-CONNECT 500, and 75 m for MOTION-CONNECT
800PLUS cables.
