6.7 Installation
SINAMICS S120 Combi
144 Manual, 11/2017, 6SL3097-4AV00-0BP7
6.7
Installation

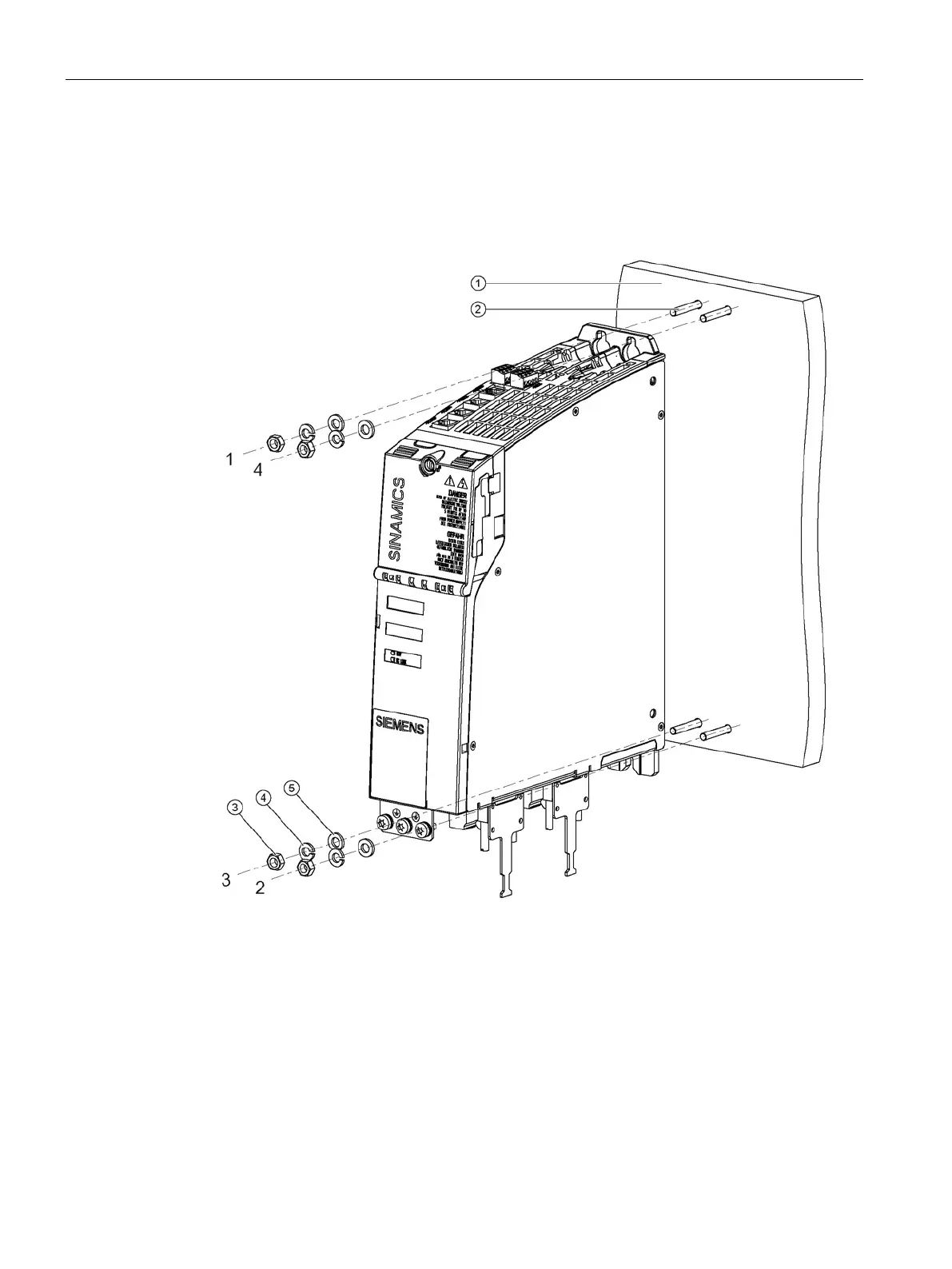

Installing a Motor Module Booksize Compact
①
Mounting panel
②
M6 x 16 threaded bolt
③
M6 nut
④
Spring washer
⑤
Washer
Figure 6-7 Installing a Motor Module Booksize Compact with internal air cooling
Tightening torques
:
● Initially, tighten by hand (0.5 Nm)
● Then tighten with 6 Nm (in the specific sequence 1 to 4)
