Siemens SINAMICS S120 Combi User Manual

DC link components
7.2 Braking Module Booksize
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
169
7.2.3.2

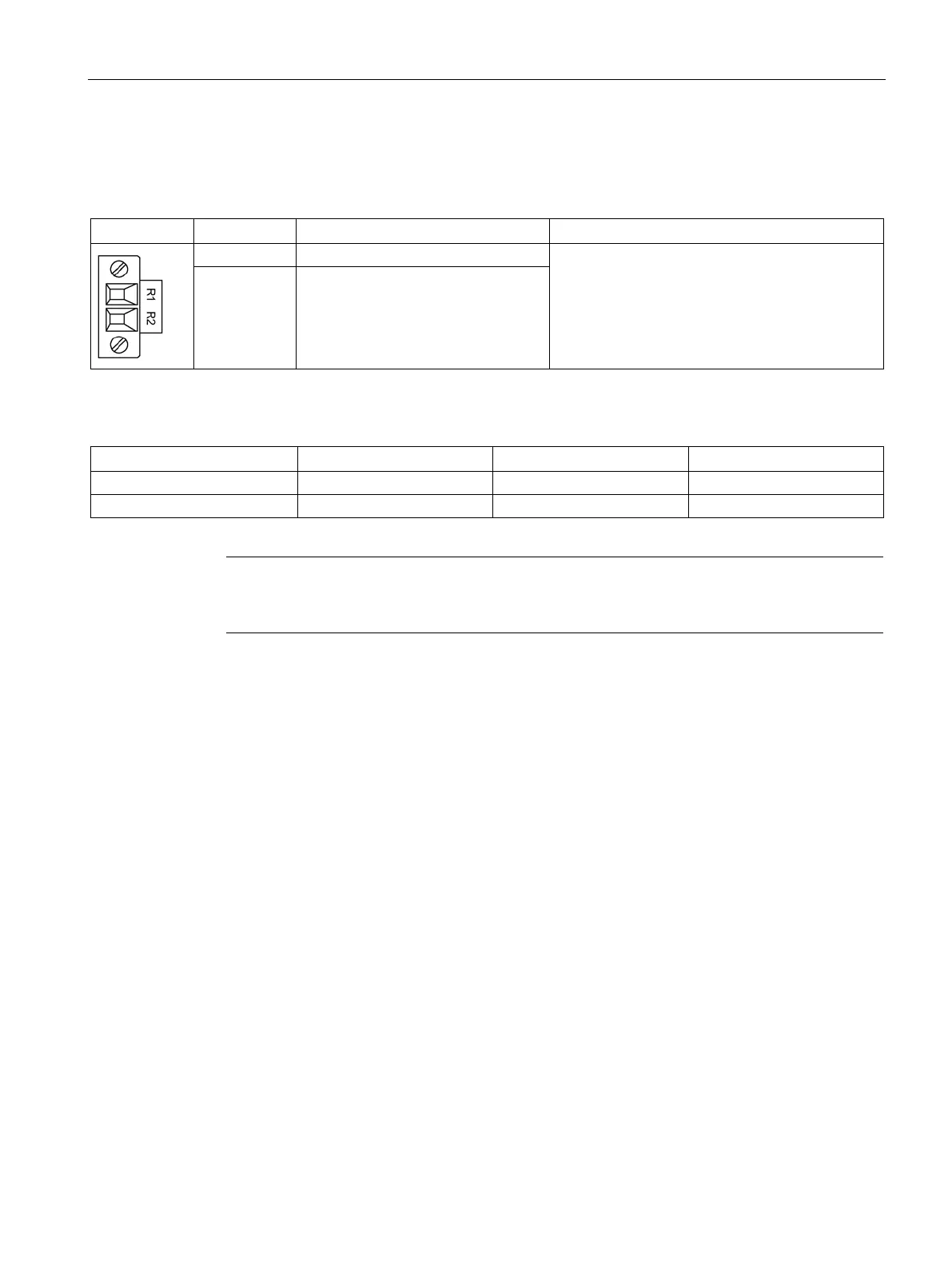

X1 braking resistor connection
Table 7- 7 X1 braking resistor connection
Terminal
Designation
Technical specifications
1
Braking resistor connection R1
Continuously short-circuit proof
Type: Screw terminal 4 (Page 288)
2 Braking resistor connection R2
Table 7- 8 Braking resistors without a thermostatic switch for Braking Modules
Braking resistor
R in Ω
P
N
in kW
P
max
in kW
6SN1113-1AA00-0DA0
17
0.3
25
6SL3100-1BE31-0AA0
5.2
1.5
100
Note
For detailed technica
l information on the braking resistors, see the section entitled Braking
resistors
(Page 176).
