S120 Combi Power Modules
4.7 Installation
SINAMICS S120 Combi
88 Manual, 11/2017, 6SL3097-4AV00-0BP7

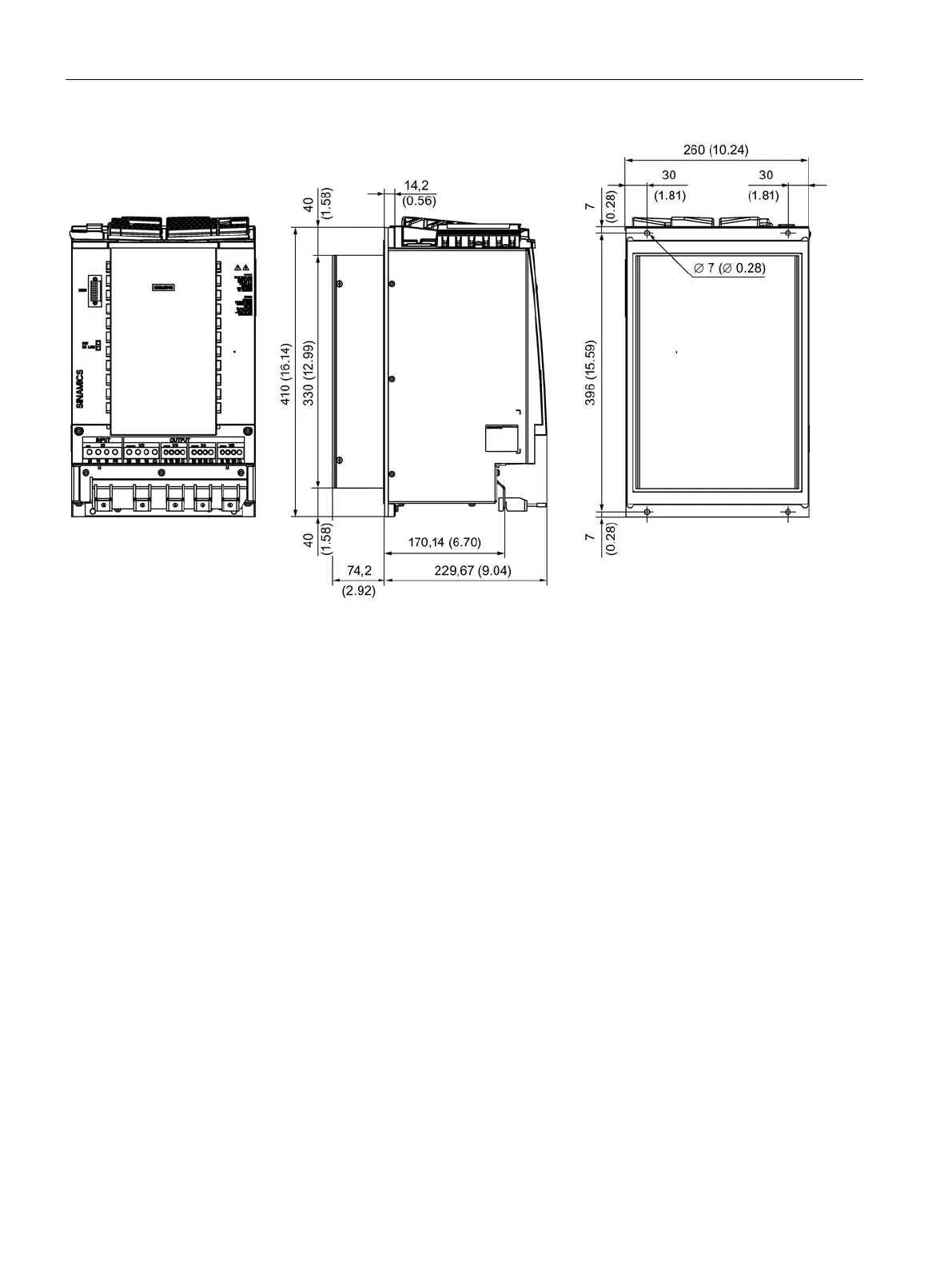

Figure 4-14 Dimension drawing of the S120 Combi 4 axes Power Module, all dimensions in mm and (inches)
4.7
Installation
4.7.1
Drilling patterns and installation cut-outs
Preparing the mounting panel
The installation cut-outs shown below are for any S120 Combi Power Module and the
external fan unit.
The drilling patterns differ by the number and width of the expansion axes. Select the
appropriate drilling pattern corresponding to your individual design.
