10.3 Sensor Module External SME20
SINAMICS S120 Combi
250 Manual, 11/2017, 6SL3097-4AV00-0BP7
10.3.3
Interface description
10.3.3.1
Overview

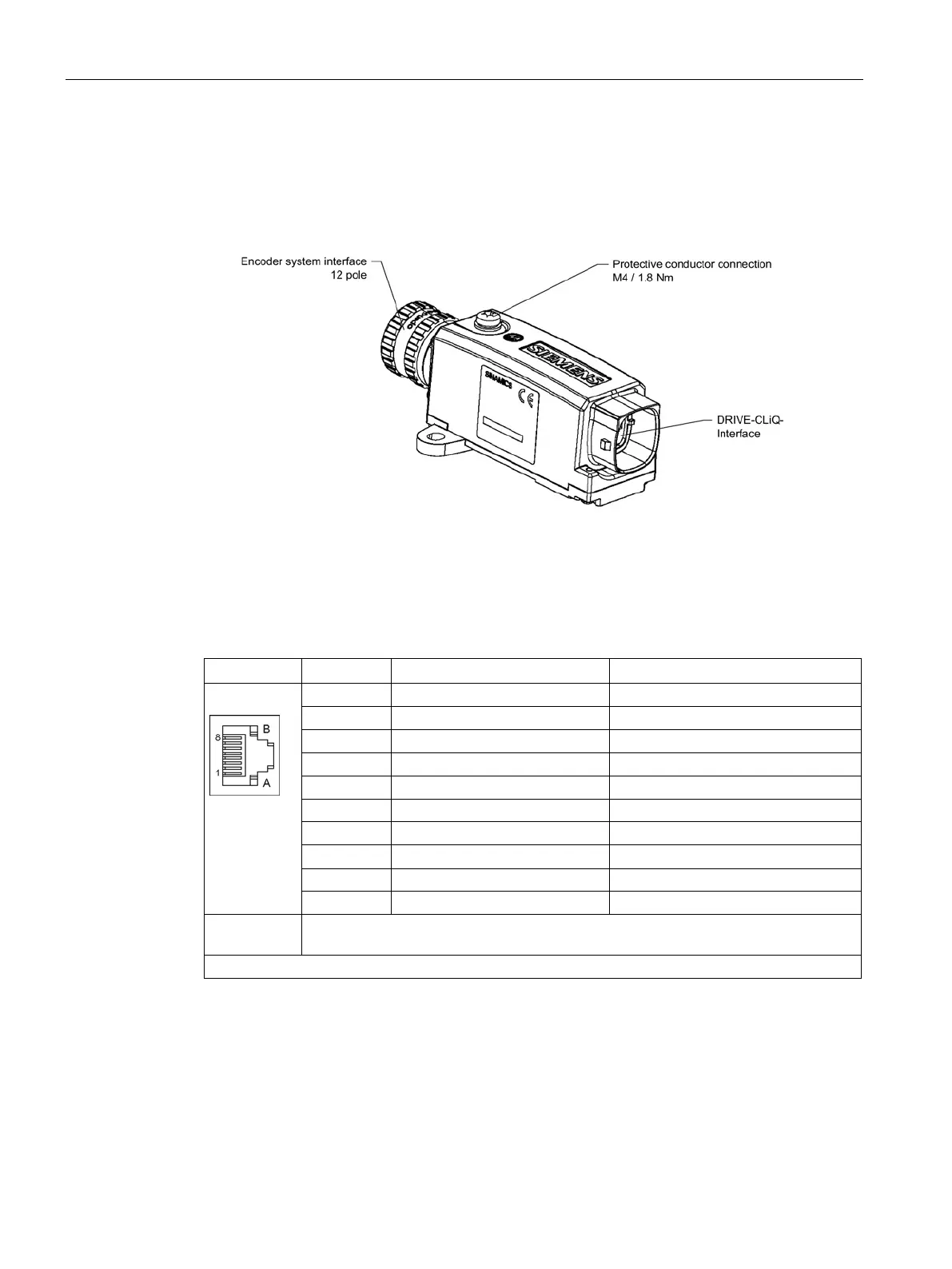

Figure 10-13 Interface description SME20
10.3.3.2
DRIVE-CLiQ interface
Table 10- 15 DRIVE-CLiQ interface
Pin
Signal name
Technical specifications
1
TXP
Transmit data +
2
TXN
Transmit data -
3
RXP
Receive data +
4
Reserved, do not use
5
Reserved, do not use
6
RXN
Receive data -
7
Reserved, do not use
8 Reserved, do not use
A
+ (24 V)
Power supply
B
M (0 V)
Electronics ground
Connector
type
DRIVE-CLiQ socket
Current consumption, maximum 0.25 A
The blanking cover f
or the DRIVE-
CLiQ port to secure the degree of protection IP 67 is not included in
the scope of delivery.
Blanking covers (6 units), article number: 6SL3066-4CA01-0AA0
