S120 Combi Power Modules
4.7 Installation
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
99
4.7.5.3
Dimension drawing

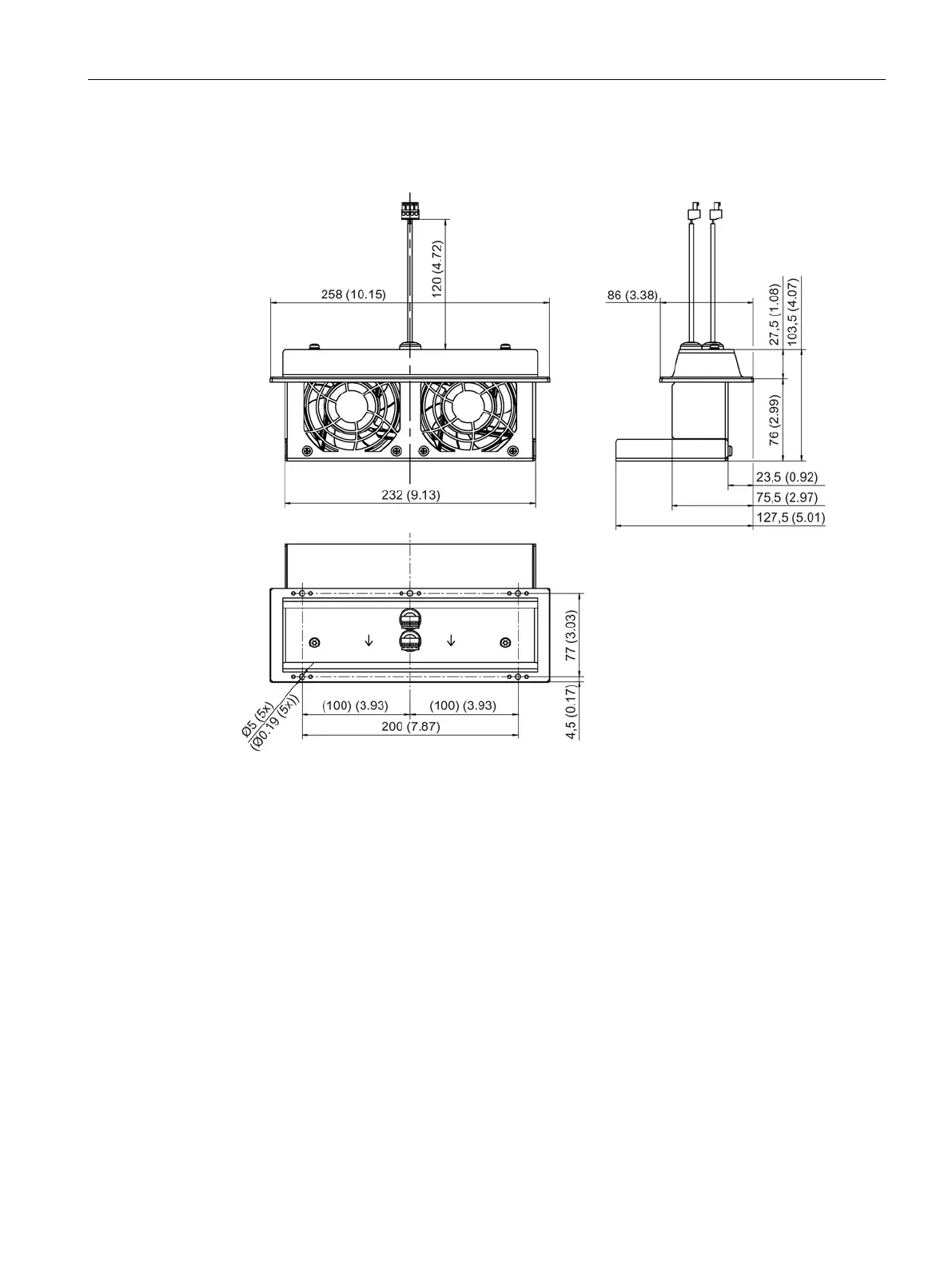

Figure 4-22 Dimension drawing of the external fan unit, all dimensions in mm and (inches)
