DC link components
7.1 Control Supply Module CSM
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
155
7.1.3.2
X1 line connection

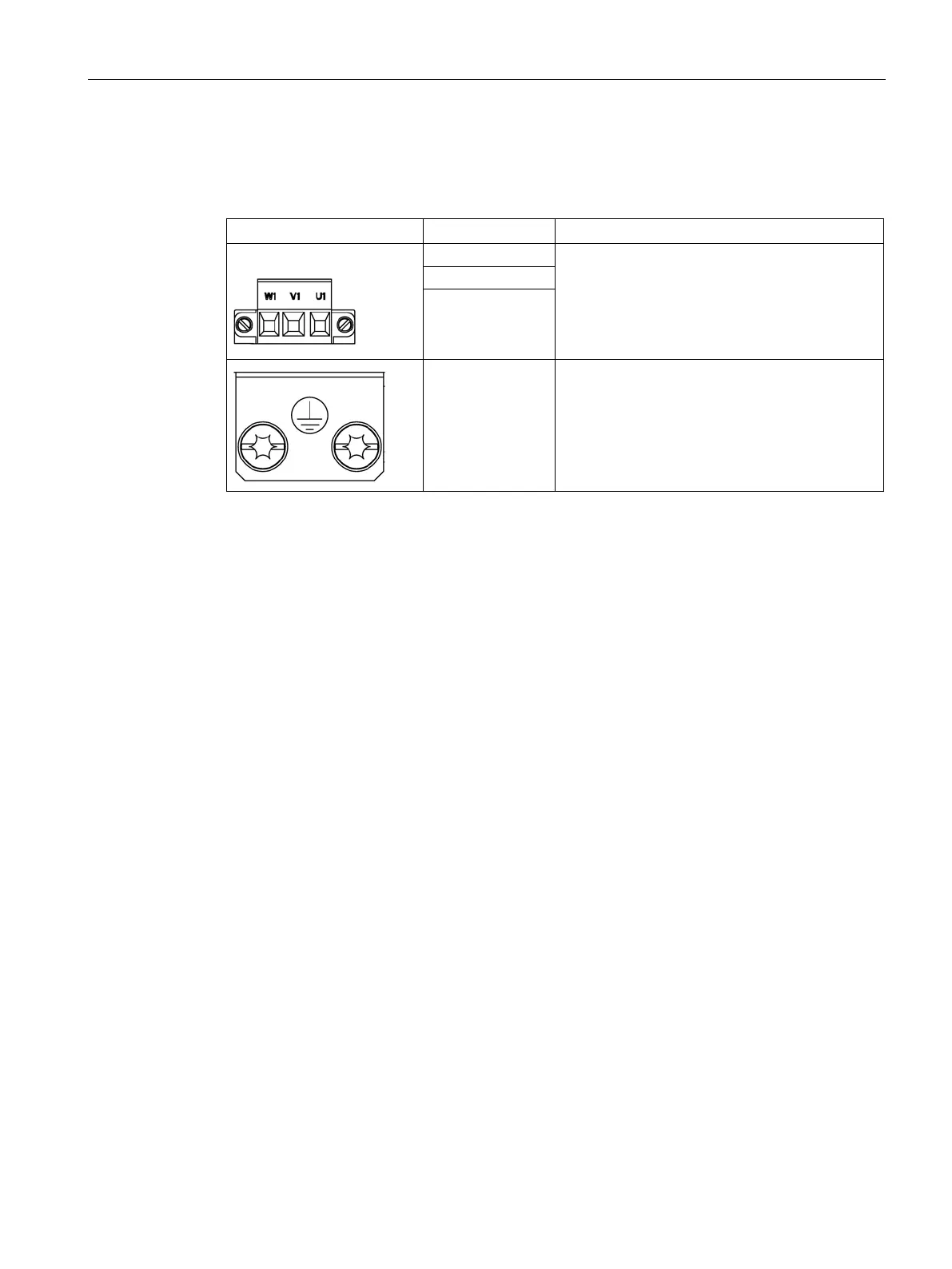

Table 7- 1 X1 line connection
Terminal
Technical specifications
U1
Supply voltage:
3 x 380 - 480 VAC, 50/60 Hz
Type: Screw terminal 4 (Page 288)
V1
W1
PE connection Type: M5 screw at the housing
Tightening torque: 3 Nm
