S120 Combi Power Modules
4.7 Installation
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
91
4.7.2.2
Installation
The reinforcement plates for the S120 Combi must be mounted in each case. For mounting,
holes that correspond to the drilling pattern below must be drilled in the mounting panel.

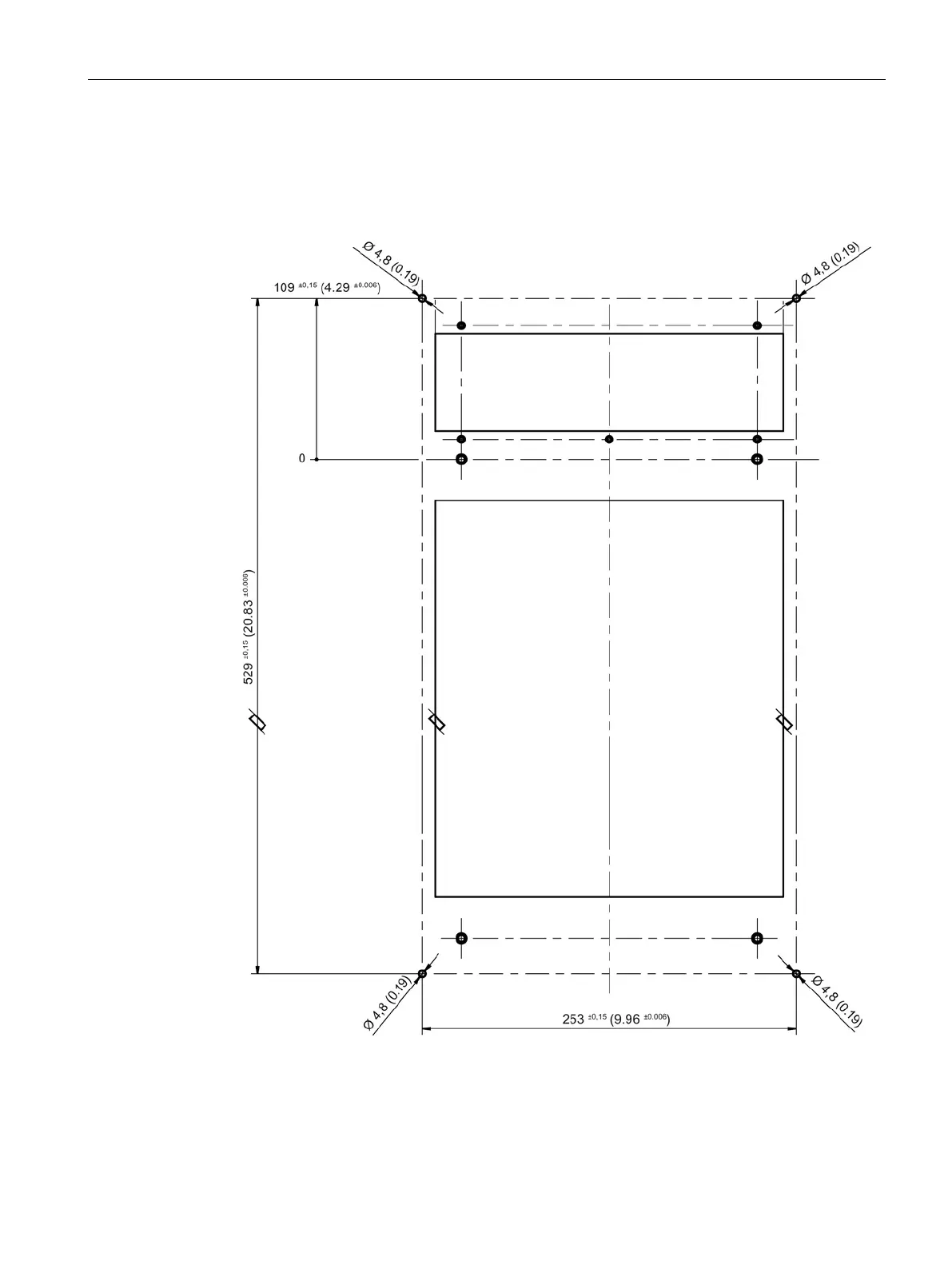

Figure 4-16 Drilling pattern for mounting the reinforcement plates
