Additional system components
9.3 DRIVE-CLiQ Hub Module External DME20
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
219
9.3.3.2
X500-X505 DRIVE-CLiQ interfaces

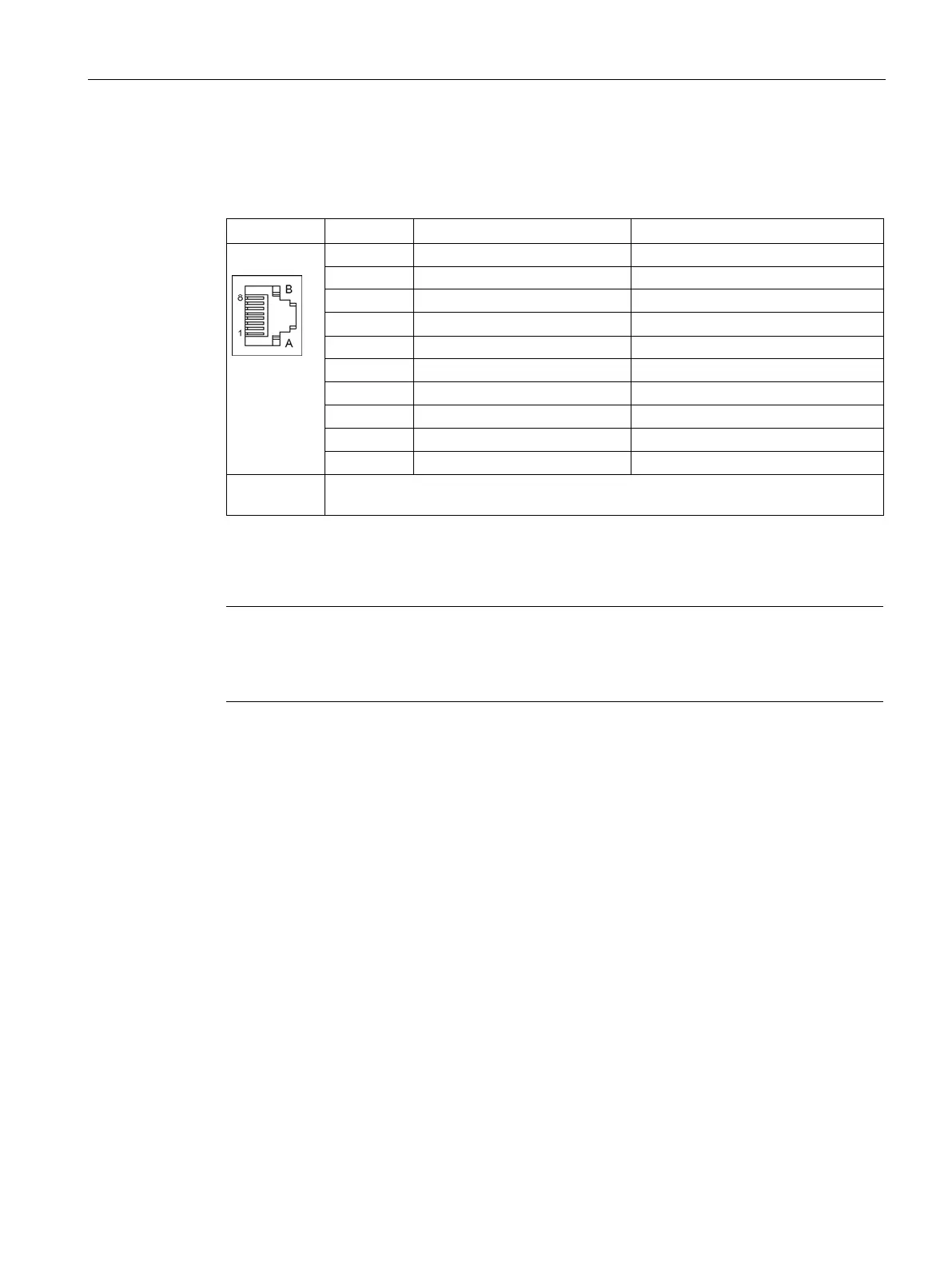

Table 9- 20 X500-X505: DRIVE-CLiQ interfaces
Pin
Signal name
Technical data
1
TXP
Transmit data +
2
TXN
Transmit data -
3
RXP
Receive data +
4 Reserved, do not use
5
Reserved, do not use
6
RXN
Receive data -
7
Reserved, do not use
8
Reserved, do not use
A
+ (24 V)
Power supply
B
M (0 V)
Electronics ground
Connector
type
DRIVE-CLiQ socket
The blanking covers for the DRIVE
-CLiQ interfaces are included in the scope of delivery.
Blanking covers (6 units), article number: 6SL3066-4CA01-0AA0
Note
Only MOTION
-CONNECT DRIVE-CLiQ cables may be used to establish connections.
The maximum length of MOTION
-CONNECT 500 is 100 m and for MOTION-CONNECT
800PLUS cables, 75
m.
