Encoder system connection
10.4 Sensor Module External SME25
SINAMICS S120 Combi
256 Manual, 11/2017, 6SL3097-4AV00-0BP7
10.4
Sensor Module External SME25
10.4.1
Description
Direct encoder systems outside the cabinet can be connected to the Sensor Module External
SME25. The SME25 evaluates these encoder systems and converts the calculated values to
DRIVE-CLiQ.
Direct encoder systems with EnDat 2.1, EnDat 2.2 article designation 02 or SSI with
SIN/COS (1 Vpp) incremental signals can be connected, however without reference signal.
Neither motor nor encoder data are saved in the SME25.
10.4.2
Interface description
10.4.2.1
Overview

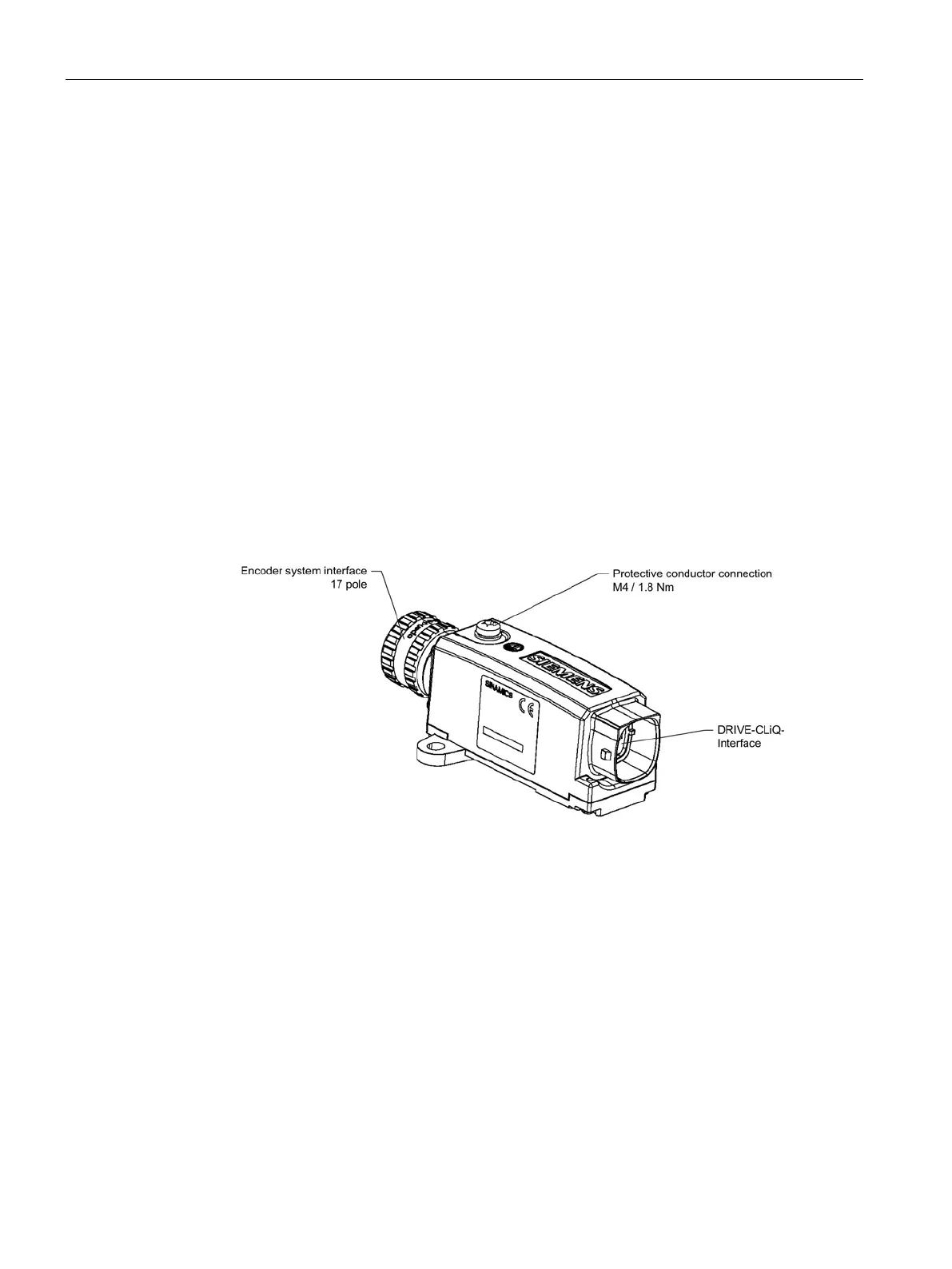

Figure 10-18 Interface description SME25
