Line-side power components

3.6 Line filters

SINAMICS S120 Combi

Manual, 11/2017, 6SL3097-4AV00-0BP7

3.6.3.2

Line/load connection

Table 3- 2 Line filter connection

Article number

6SL3000-0BE21-6DA.

Rated infeed power

10 kW, 16 kW and 20 kW

Line connection L1, L2, L3

Type: Screw terminal 6 (Page 288)

Load connection L1', L2', L3'

(U, V, W)

Type: Screw terminal 6 (Page 288)

Protective conductor connection Type: M6 bolt

Tightening torque: 6 Nm

Note

The line filter 6SL3000

-0BE21-6DAx can be used for all S120 Combi Power Modules.

3.6.4

Dimension drawing

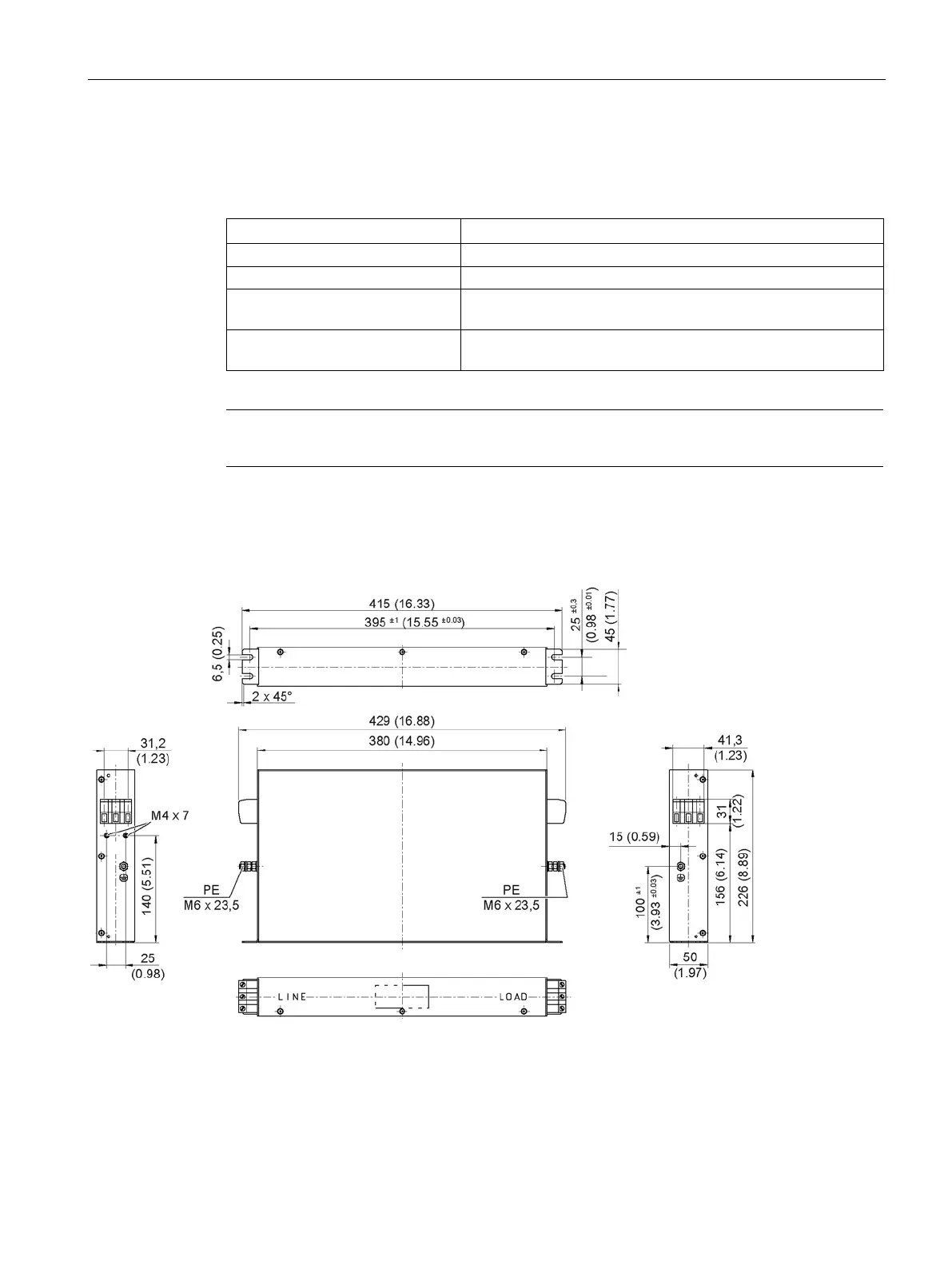

Figure 3-4 Dimension drawing of the line filter, all dimensions in mm and (inches)
