Accessories
11.1 DRIVE-CLiQ cabinet bushing
SINAMICS S120 Combi
266 Manual, 11/2017, 6SL3097-4AV00-0BP7
11.1.4
Installation
11.1.4.1
Installation
In order to install the DRIVE-CLiQ cabinet gland, you must make a cutout in the control
cabinet panel as shown in the diagram below.

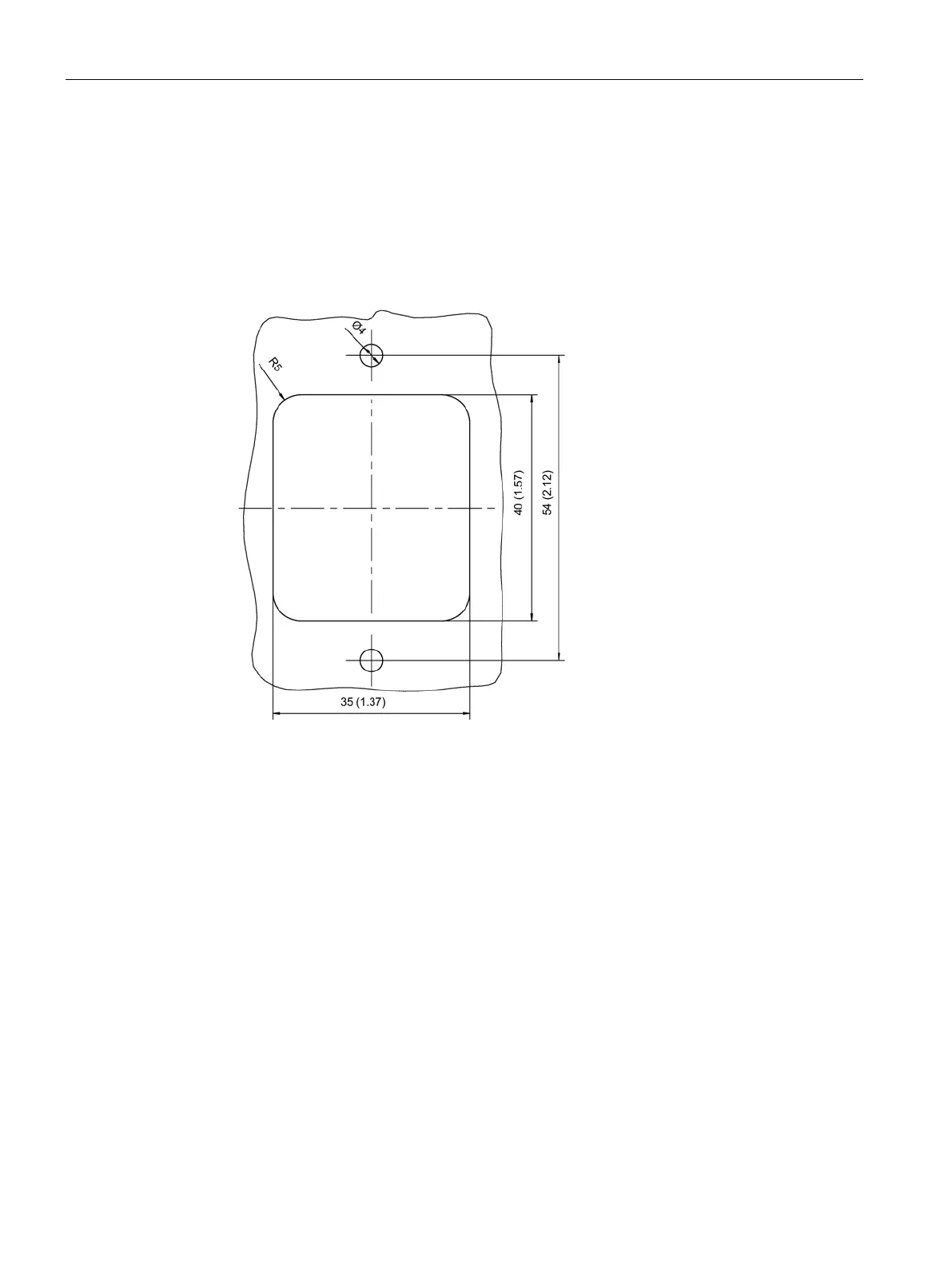

Figure 11-5 Cutout in the control cabinet, all dimensions in mm and (inches)
