11.1 DRIVE-CLiQ cabinet bushing
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
269
1. Insert the DRIVE-CLiQ cabinet bushing through the opening in the cabinet.
2. Fasten the DRIVE-CLiQ cabinet bushing using the associated O ring with a tightening
torque of 3-4 Nm
O ring, SW20, tightening torque: 3-4 Nm

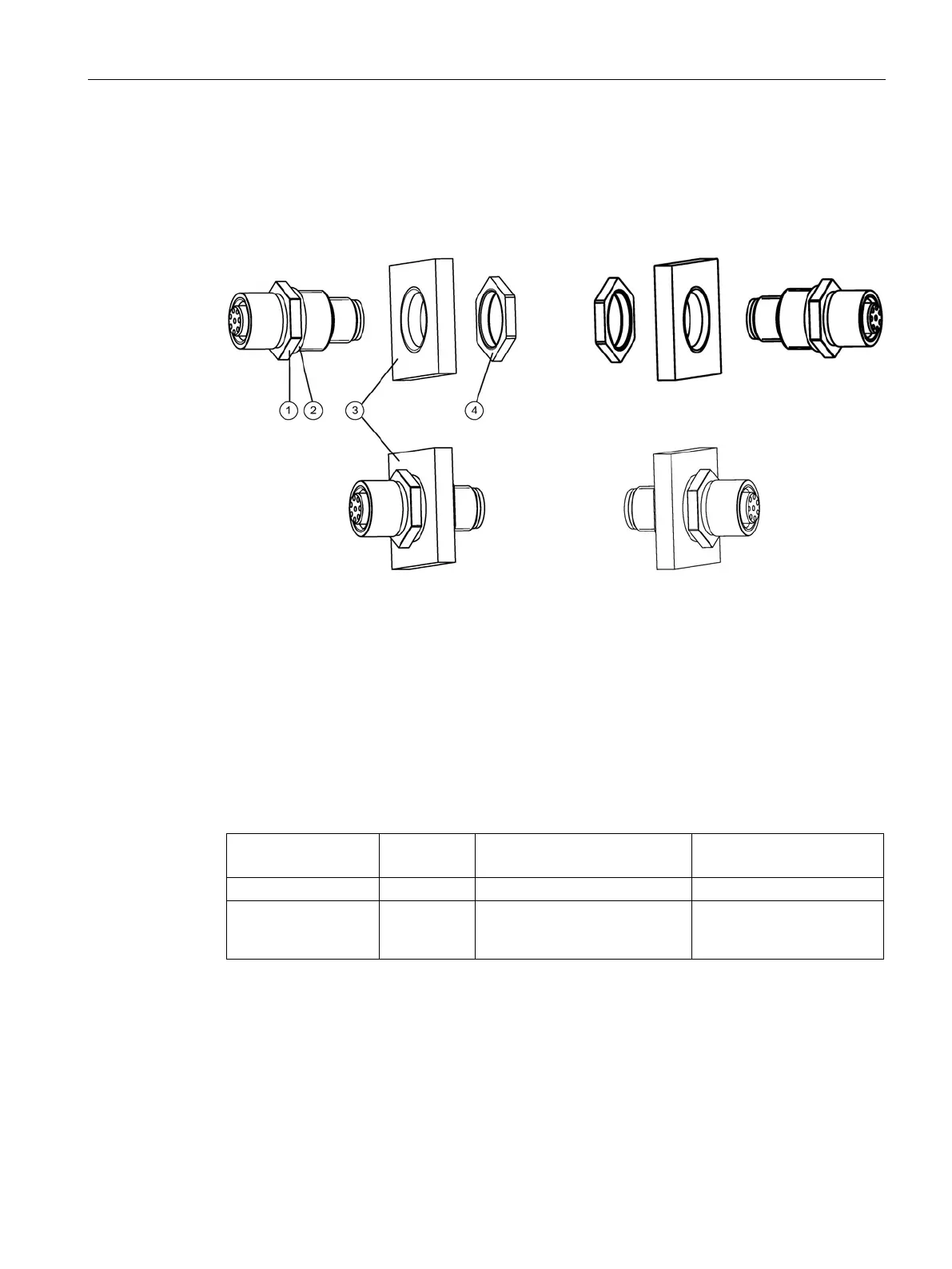

Figure 11-9 Mounting DRIVE-CLiQ cabinet bushings for cables with M12 connectors
Table 11- 1 Technical data of DRIVE-CLiQ cabinet bushings
6SL3066-2DA00-0AA0
DRIVE-CLiQ
Degree of protection
to IEC 60529
IP54 outside the control cabinet
IP20 or IPXXB inside the con-
IP67
