Additional system components
9.1 Terminal Module TM54F
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
197
X524 Electronics power supply

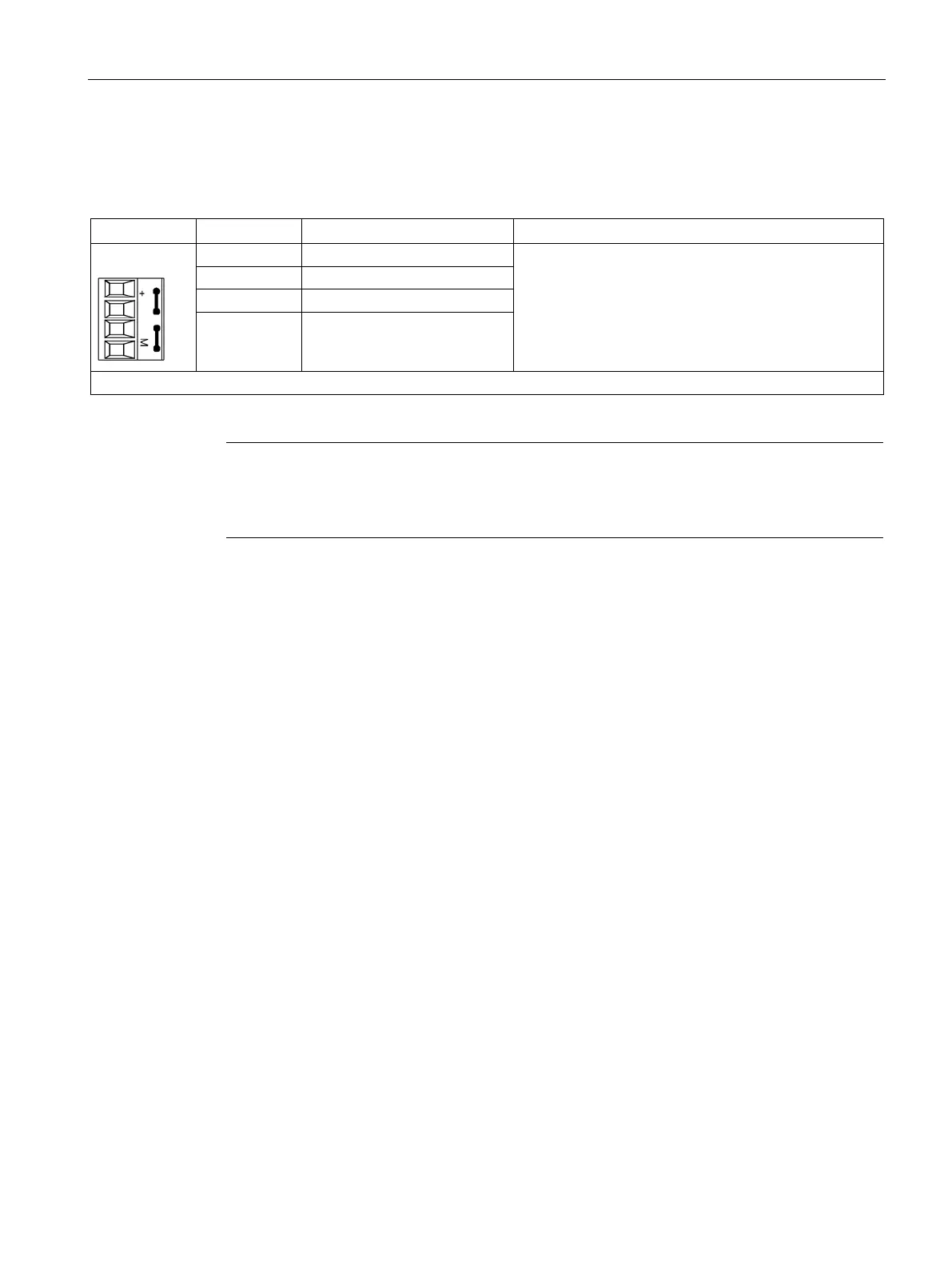

Table 9- 8 X524: Electronics power supply
Voltage: 24 VDC (20.4 ... 28.8 V)
Current consumption: Maximum 0.7 A
Maximum current through the jumper in the connector:
20 A (15 A according to UL/CSA)
M Electronics ground
Type: Screw terminal 3 (Page 288)
The maximum cable length that can be connected is 30 m.
Note
The two "+" and "M" terminals are
jumpered in the connector. This ensures that the supply
voltage is looped through.
The current consumption increases by the value for the DRIVE
-CLiQ node.
