Siemens SINAMICS S120 Combi User Manual

Motor Modules Booksize Compact as expansion axes
6.3 Interface description
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
135
6.3.2
X1/X2 motor connection

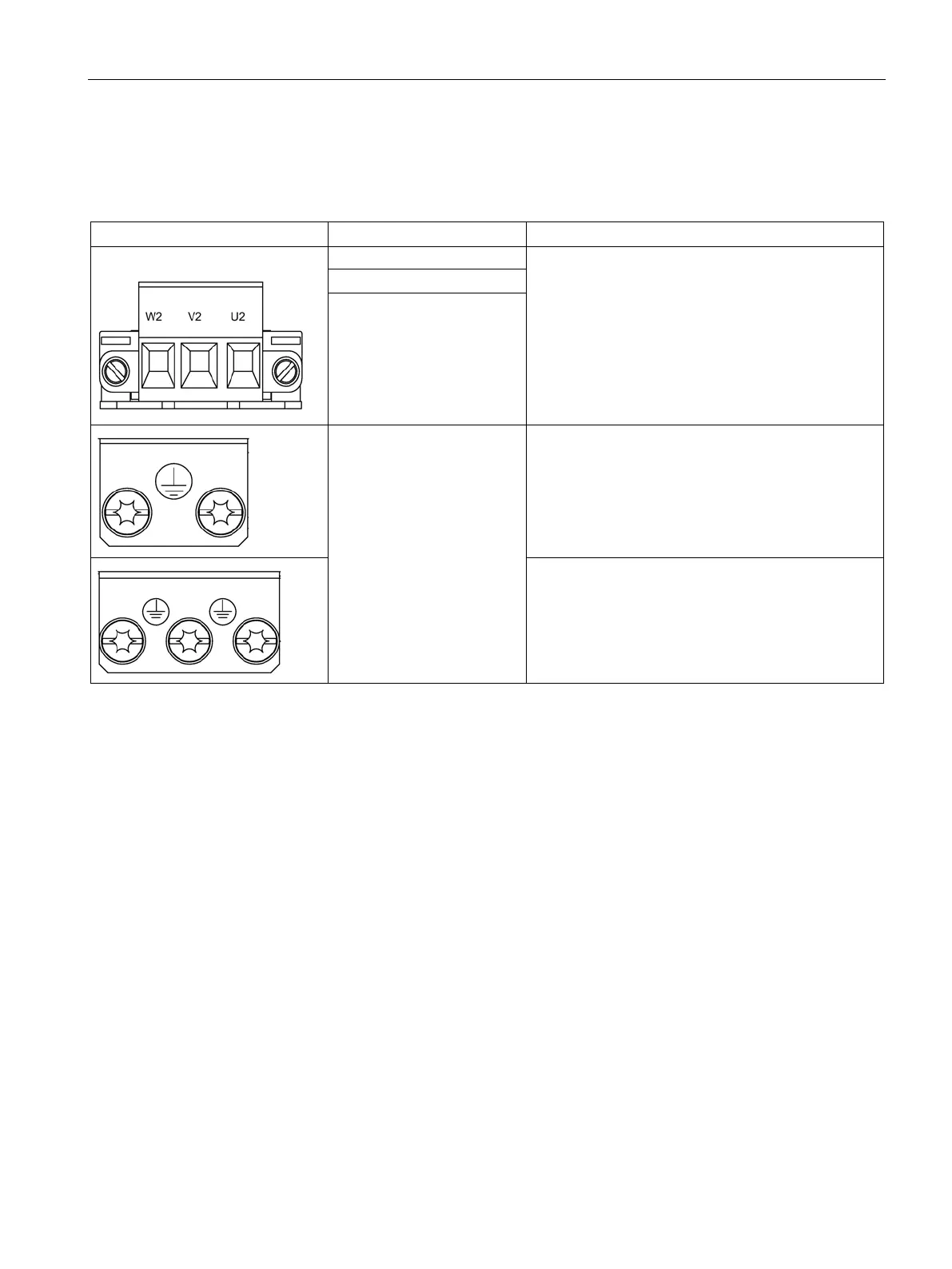

Table 6- 1 X1/X2 motor connection
Terminal
Technical specifications
U2
Type: Screw terminal 5 (Page 288)
V2
W2
Protective conductor connec-
tion
Single Motor Modules 3 A to 18 A
Type: M5 tapped hole for ring cable lug (Page 290)
Tightening torque: 3 Nm
Double Motor Modules 1.7 A to 5 A
Type: M5 tapped hole for ring cable lug (Page 290)
Tightening torque: 3 Nm
