Encoder system connection
10.1 Sensor Module Cabinet-Mounted SMC20
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
231
10.1.5
Dimension drawing

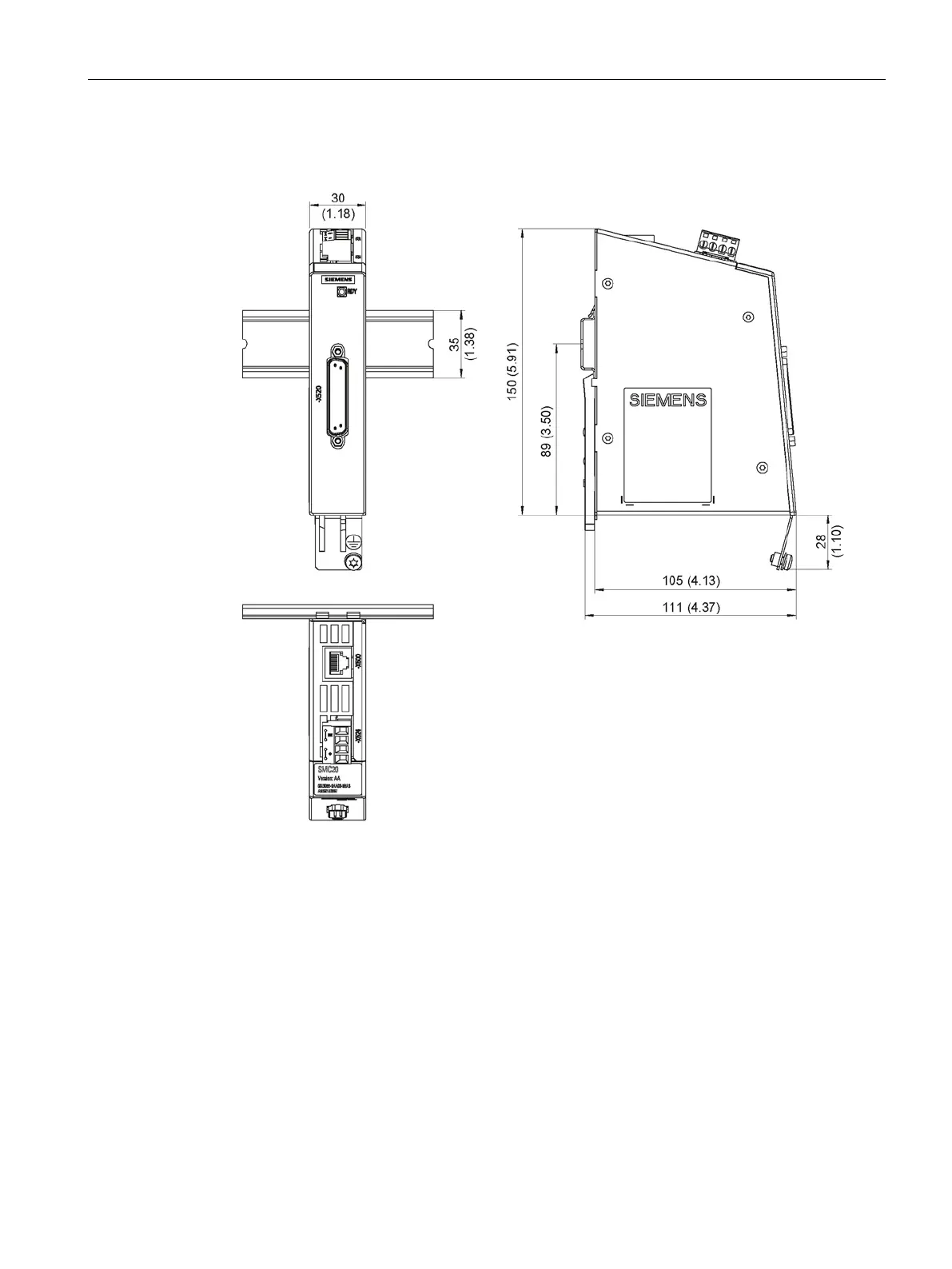

Figure 10-2 Dimension drawing of the Sensor Module Cabinet SMC20, all data in mm and (inches)
