Encoder system connection
10.1 Sensor Module Cabinet-Mounted SMC20
SINAMICS S120 Combi
232 Manual, 11/2017, 6SL3097-4AV00-0BP7
1. Tilt the component backwards slightly and attach it to the DIN rail using the hooks.
2. Swivel the component onto the DIN rail until you hear the mounting slide at the rear latch
into position.
3. Slide the components along the mounting rail to either the left or right up to their final
position.
1. First shift the mounting slide downwards at the lug to release the interlocking with the
mounting rail.
2. Swivel the component to the front and withdraw it upwards from the DIN rail.

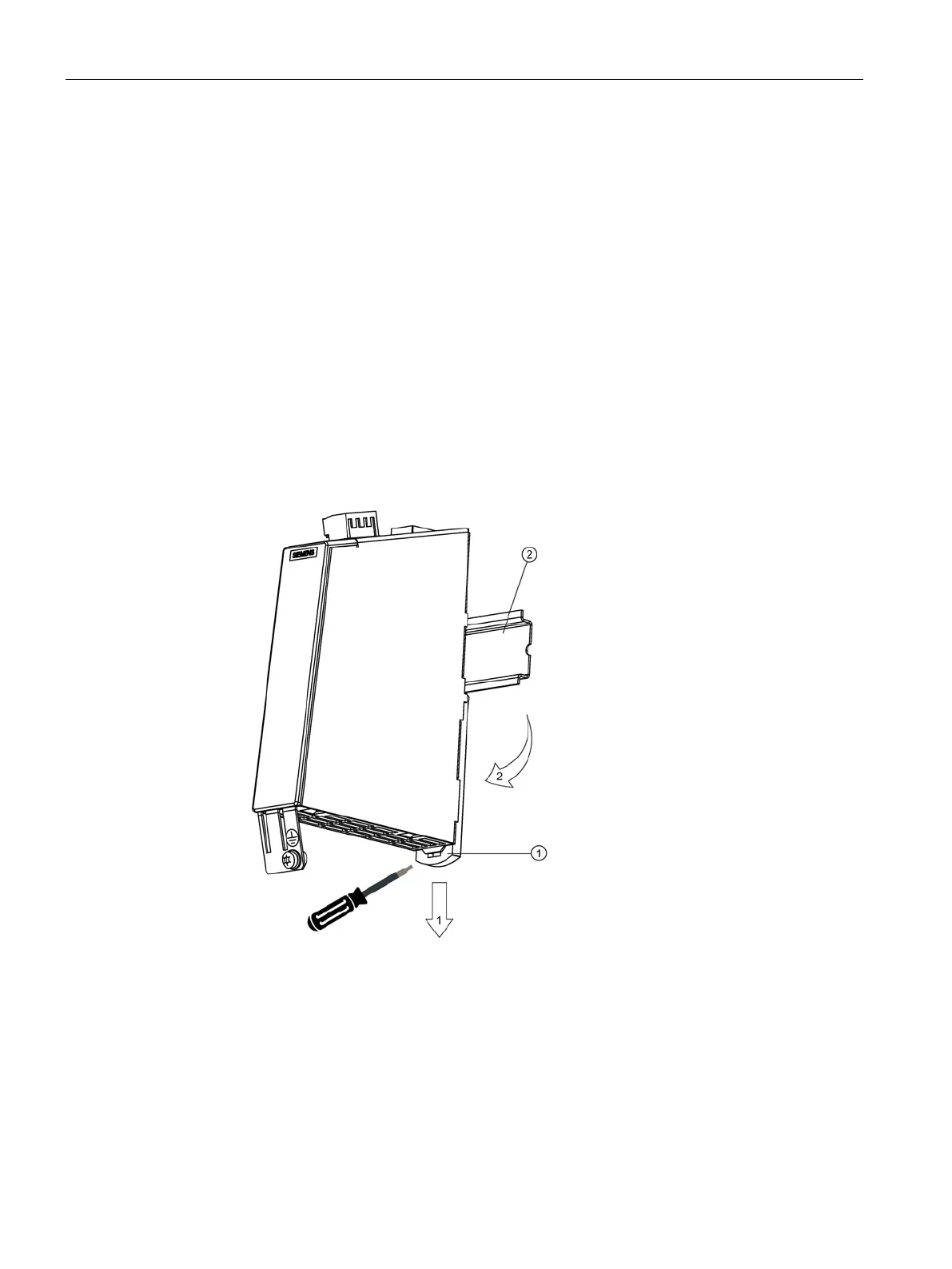

Figure 10-3 Removing from a DIN mounting rail
