Line-side power components
3.7 Line reactors
SINAMICS S120 Combi
44 Manual, 11/2017, 6SL3097-4AV00-0BP7
Faults due to the magnetic fields of line reactors
Reactors generate magnetic fields. Components and cables can be damaged or affected
by this.
• Ensure there is sufficient clearance (at least 200 mm) from the reactors or shield them.
Note
Connecting cables
The connecting cables between the line reactor and S120 Combi must be kept as short as
possible.
If at all possible, shielded connecting cables should be used.
When using unshielded connecting cables, the cores must be protected from rubbing against
the shield connection clip.
Interface description
3.7.3.1

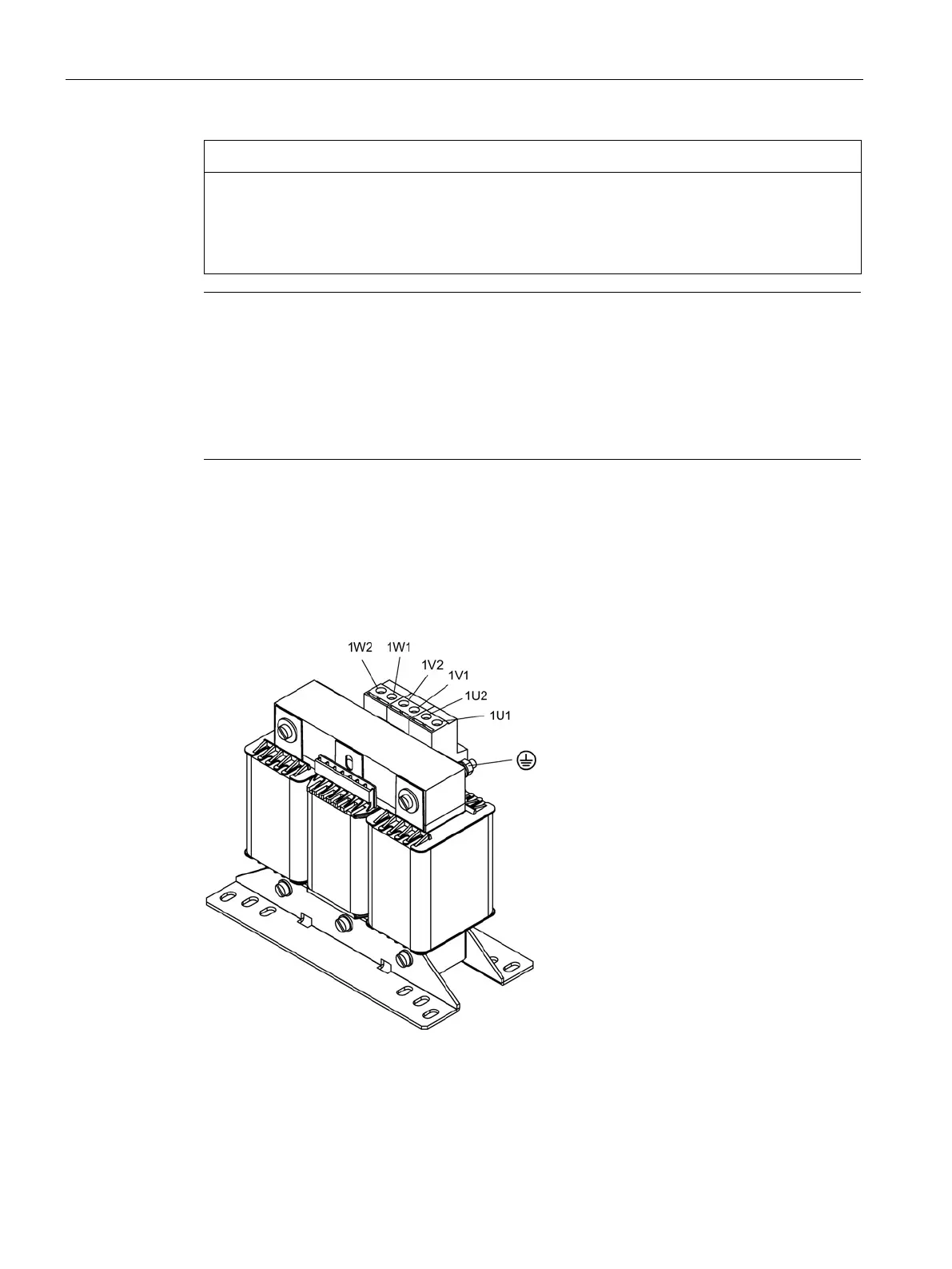

Figure 3-5 Line reactor for S120 Combi (example for 16 kW infeed)
