DC link components
7.1 Control Supply Module CSM
SINAMICS S120 Combi
162 Manual, 11/2017, 6SL3097-4AV00-0BP7
7.1.7
Installation
①
State when supplied with spacer
②
Spacer removed - mounting depth for S120 Combi

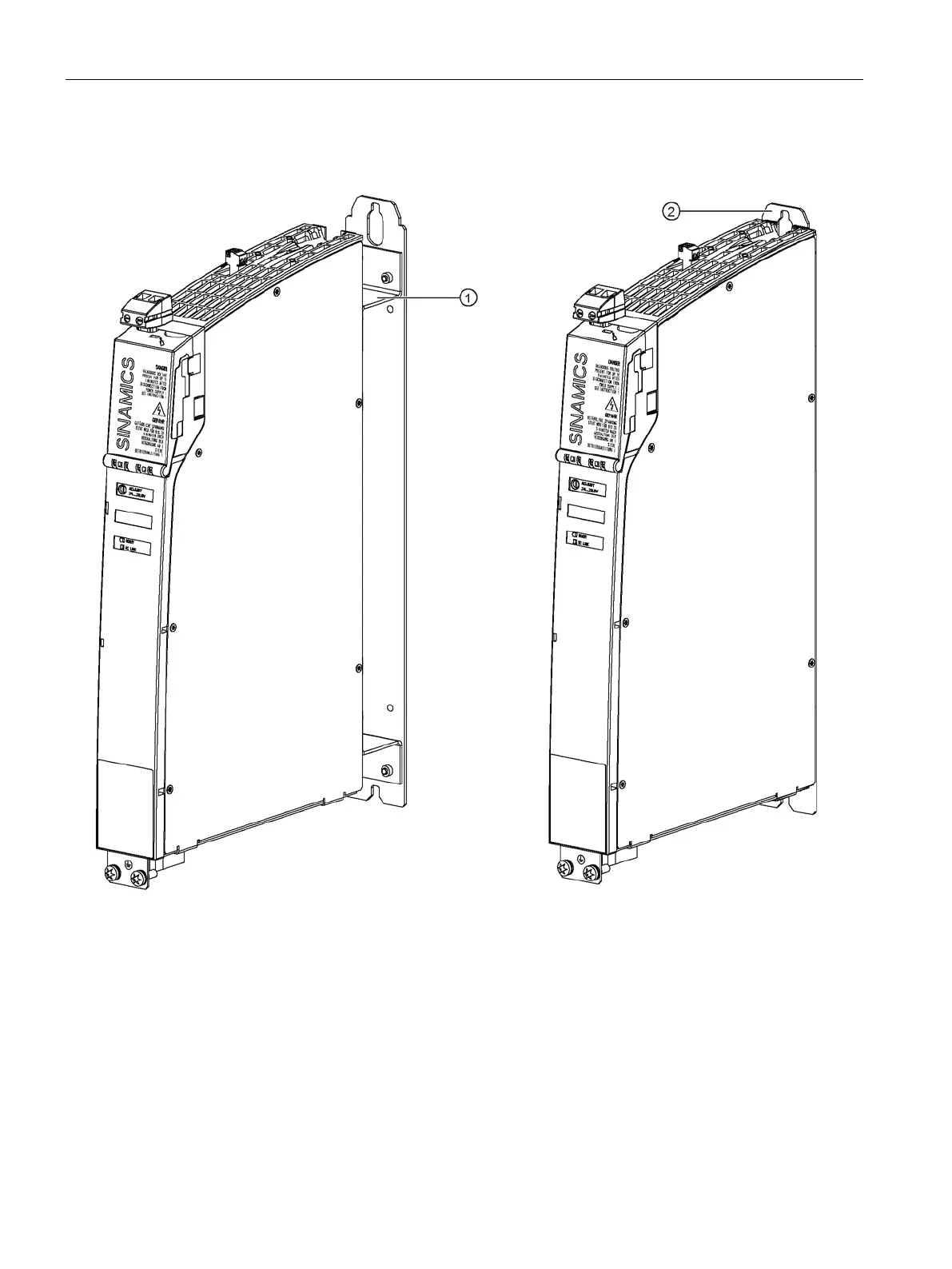

Figure 7-5 Methods of installing the Control Supply Module with and without spacer
