Accessories
11.1 DRIVE-CLiQ cabinet bushing
SINAMICS S120 Combi
268 Manual, 11/2017, 6SL3097-4AV00-0BP7
11.1.4.2
DRIVE-CLiQ cabinet bushing for cables with M12 plug/socket
Prepare the cabinet panel for mounting the DRIVE-CLiQ cabinet bushing M12 as shown
below. The removable O ring can be screwed from the inside or the outside.
Mounting from the inside using an O ring that can be screwed
â‘
Through-hole with chamfer

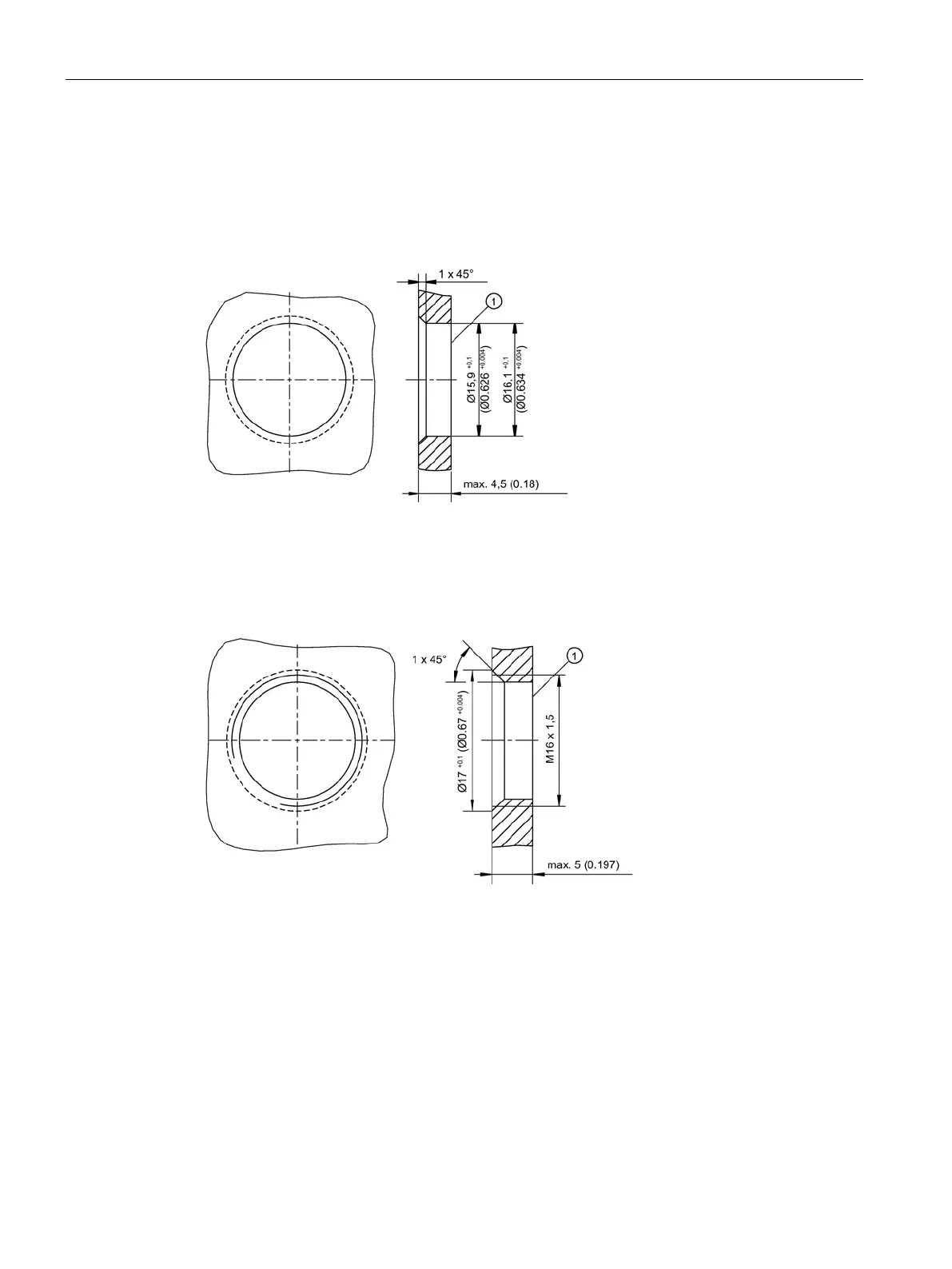

Figure 11-7 Through-hole for mounting the DRIVE-CLiQ cabinet bushing M12 with an O-ring that can
be screwed from the inside
Mounting from the outside using an O ring that can be screwed
â‘
Threaded hole with chamfer
Figure 11-8 Threaded hole for mounting the DRIVE-CLiQ cabinet bushing M12 with an O-ring that
can be screwed from the outside
