Encoder system connection
10.2 Sensor Module Cabinet-Mounted SMC30
SINAMICS S120 Combi
Manual, 11/2017, 6SL3097-4AV00-0BP7
241
10.2.4
Dimension drawing

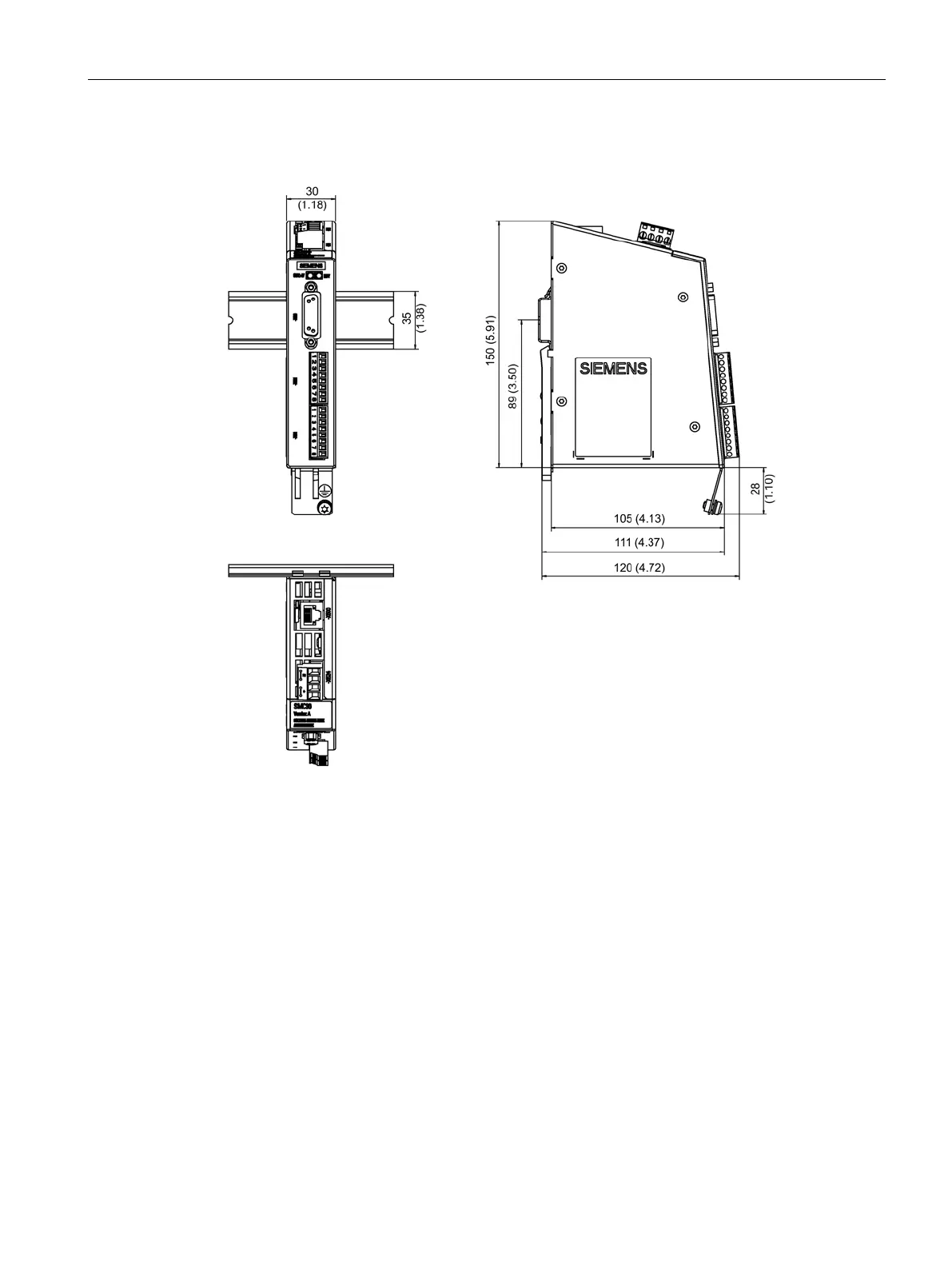

Figure 10-6 Dimension drawing of the Sensor Module Cabinet SMC30, all data in mm and (inches)
